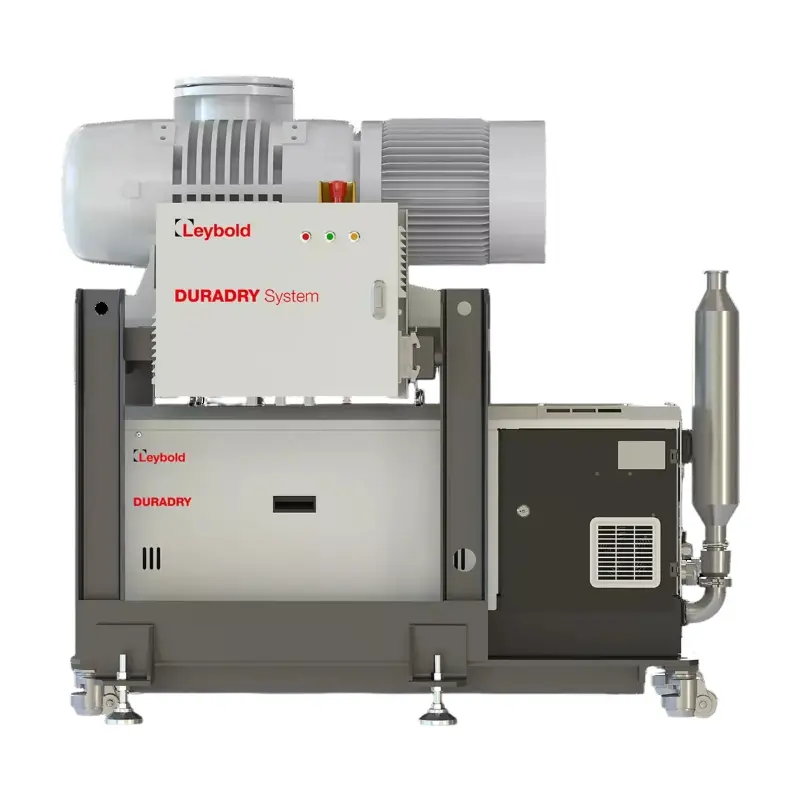

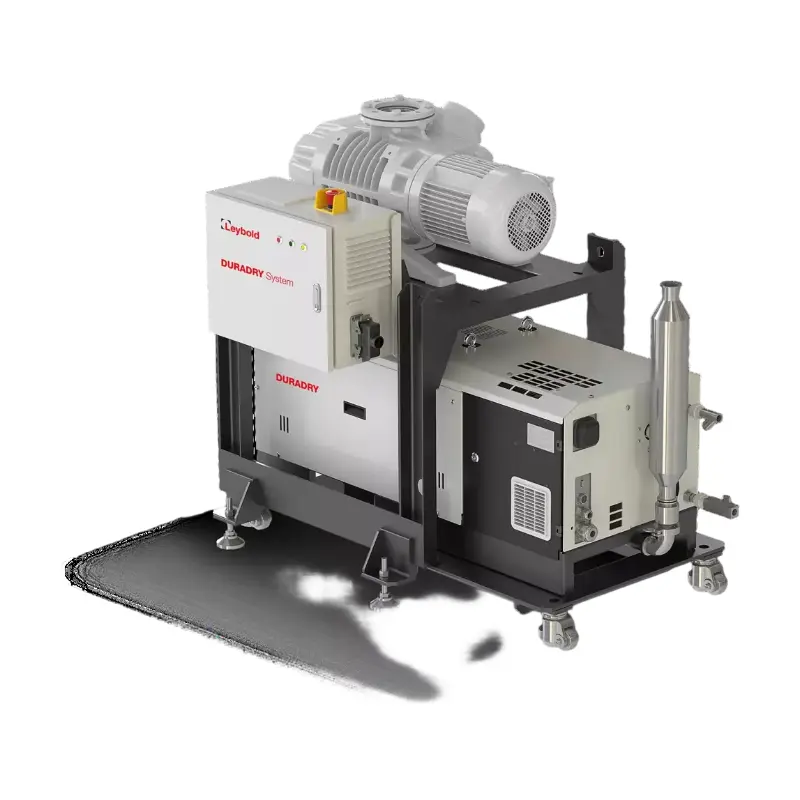

The Leybold DURADRY 160 system dry screw vacuum pump is a high-performance, user-friendly vacuum device designed for demanding industrial requirements.
This vacuum pump is highly optimized and perfectly suitable for a variety of demanding industrial processes:
Industrial Applications Include:
Plasma cleaning, industrial coating, crystal pulling, heat treatment, and battery production lines.
Advanced rotor design and variable speed drive ensure reduced power consumption. The pump's heat distribution, thermal control, and dust handling capabilities are improved for optimal operation.
The fully enclosed system, equipped with multiple sensors and featuring a dynamic seal, withstands high temperatures, high oxygen levels, and corrosive conditions, ensuring complete elimination of oil leaks.
Equipped with an intelligent drive, it continuously monitors key parameters such as rotor frequency and temperature for real-time protection and self-diagnostic safety.
The plug-and-play design offers a variety of connector options, making operation simple and fast through a separate machine room, facilitating rapid maintenance and repair.
With a noise level of less than 64 dB (A) when equipped with a muffler, this vacuum pump provides a exceptionally quiet and steady working environment.
| Specification | Details |
|---|---|
| Pump Type | Dry screw vacuum pump system |
| Ultimate Vacuum | 1 × 10⁻² mbar (8 × 10⁻³ Torr) |
| Peak Pumping Speed | 160 m³/hr (94 cfm) |
| Maximum Rotor Speed | 6600 Rev/min |
| Inlet/Outlet Flange | Inlet: ISO63; Outlet: NW40 |
| Connection Type | 3/8 inch BSP female thread (G 3/8") |
| Power Requirements |
• Ultimate Power: 3.8 kW (5.1 hp) • Full-load Power: 4.7 kW (6.3 hp) • Motor Rated Power: 7.5 kW |
| Cooling Air Flow (Continuous) | 4.0 l/min (1.1 gal/min) |
| Maximum Supply Pressure | 6.9 barg (100 psig) |
| Shaft Seal Flow (Continuous) | Maximum 12 l/min |
| Gas Ballast Flow | 0 - 50 l/min (manually adjustable) |
| Operating Fluid | PFPE oil |
| Ambient Temperature Range | 5 - 40 °C (41 - 104 °F) |
| Maximum Exhaust Back Pressure | 1.2 bara (17.4 psia) |
| Noise Level (with Muffler) | < 64 dB(A) |
| Dimensions (L × W × H) | 1265 × 520 × 566 mm (49.8 × 20.47 × 22.28 inches) |
Leybold DURADRY 160 System Dry screw vacuum pump system
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
The Leybold DURADRY 160 dry screw vacuum pump achieves an ultimate vacuum rating of 1 × 10⁻² mbar (8 × 10⁻³ Torr).
This system is designed for demanding industrial operations, making it suitable for applications such as plasma cleaning, industrial coating, crystal pulling, heat treatment, and battery manufacturing.
When operated with its standard muffler, the noise level of the pump is kept extremely low, producing less than 64 dB (A) to guarantee a comfortable working environment.
The pump features an integrated intelligent drive system that dynamically monitors key variables, including rotor frequency and real-time temperatures, to execute automatic self-protection shutdowns when necessary.
Yes, it features a rugged, fully enclosed build, dynamic seals, and multiple sensors designed to prevent oil leaks while resisting high temperatures, corrosion, and high oxygen exposure.
