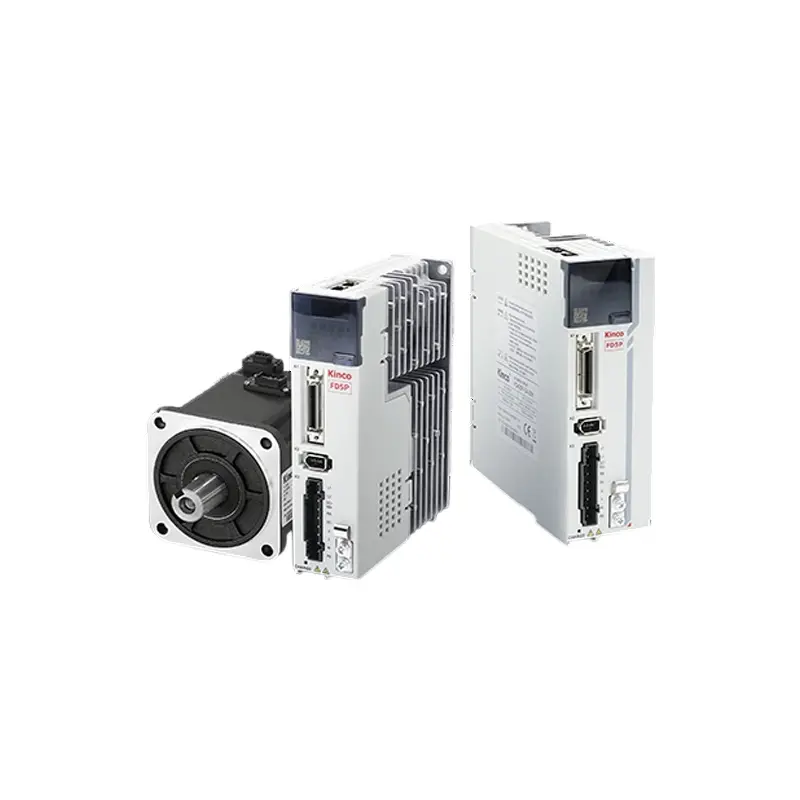

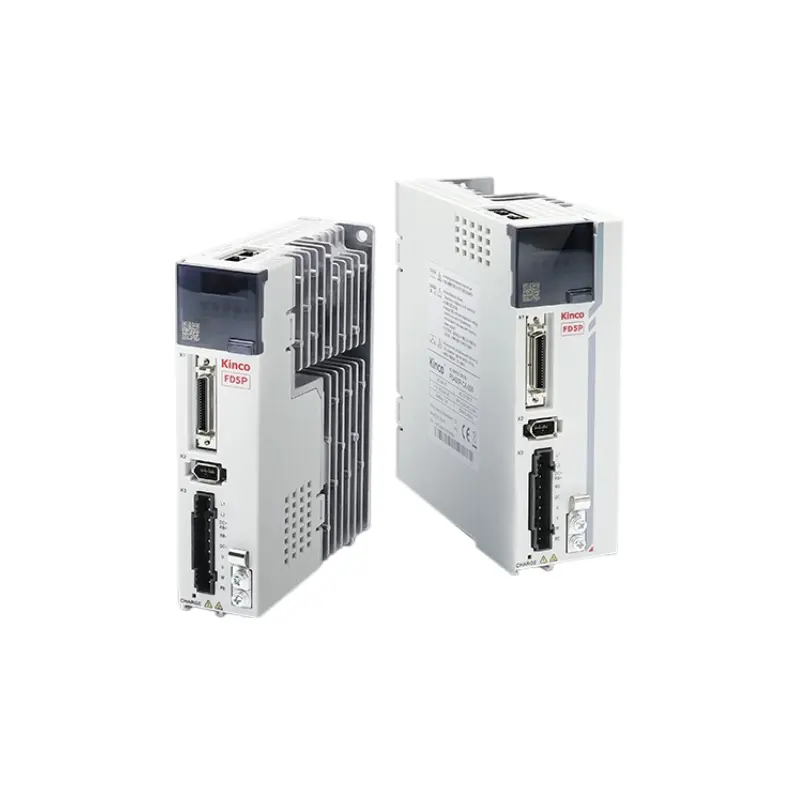

This servo drive incorporates a new high-computing platform with a 2.4-fold increase in clock frequency, featuring an 8K position loop and 16K velocity loop. Response speed and control precision are significantly enhanced to meet the demands of highly dynamic applications such as robotics and logistics equipment.
The drive supports stable operation at temperatures as low as -20°C. Motors can be specified with an IP67 protection rating, ensuring resilience against extreme cold, humidity, and dusty environments. This makes it suitable for diverse sectors including logistics, healthcare, and outdoor equipment.
Its power supply voltage range spans 24–60V, with continuous output current increased by 20% and robust overload capacity, making it suitable for high-intensity applications like heavy-duty mobile robots (AGVs/AMRs).
For debugging and communication, the Type-C interface enables direct connection to computers. Paired with KS3 software, it achieves plug-and-play functionality, reducing debugging time by over 50%. It simultaneously supports multi-protocol hierarchical communication via RS485, CANopen, and EtherCAT, facilitating seamless multi-axis coordination to meet intelligent requirements for complex production lines.
For safety, the drive integrates multiple protective mechanisms including overspeed, overheat, and short-circuit protection, and holds UL and CE certifications, effectively ensuring human-machine collaboration safety and long-term stable operation.
| Item | Specification |
|---|---|
| Model | FD415P - ▢A - 000 |
| Power Range | 50 - 400W |
| Supply Voltage | AC 220V |
| Maximum Continuous Output Current (rms) | 3.2A |
| Peak Current | 15A |
| Weight | 0.881kg |
| External Dimension (L×W×H) | 170×153×40mm |
| Control Mode | RS232, Pulse (when ▢ = L); RS232, CANopen, Pulse (when ▢ = C); RS232, EtherCAT, Pulse (when ▢ = E) |
| Communication Control | Support MODBUS, CANopen, EtherCAT, Profinet communication control |
| Features | Support easy-tune optimization and online self-tuning; Trap filter for vibration suppression; S-curve control; Real-time synchronized control; IO contains 7-channel digital input, 5-channel digital output and encoder output; With driver over-voltage & under-voltage protection, over-current protection, over-heating protection and short-circuit protection, etc. |
| Model | Power (W) | Max Continuous Current (rms) | Peak Current (PEAK) | Weight (kg) | Dimensions L*W*H (mm) |
|---|---|---|---|---|---|
| FD415P-▢A-000 | 50~400 | 3.2 A | 15 AP | 0.881 | 170*153*40 |
| FD425P-▢A-000 | 750 | 4 A | 18 AP | 1.5 | 170*153*55 |
| FD425P-▢F-000 | 750~1000 | 5 A | 18 AP | 1.5 | 176*173.7*55 |
| FD435P-▢A-000 | 850~1000 | 7.6 A | 32.5 AP | 1.4 | - |
| FD445P-▢A-000 | 1500 | 12.5 A | 54 AP | 2.1 | 186*170.3*80.3 |
| FD615P-▢A-000 | 1500 | 5.4 A | 23 AP | 1.4 | 176*173.7*55 |
| FD625P-▢A-000 | 3000 | 12 A | 45.5 AP | 2.1 | 186*170.3*80.3 |
Dimension: 90*60*28mm
Weight: 0.3kg
Battery parameters: Without battery
