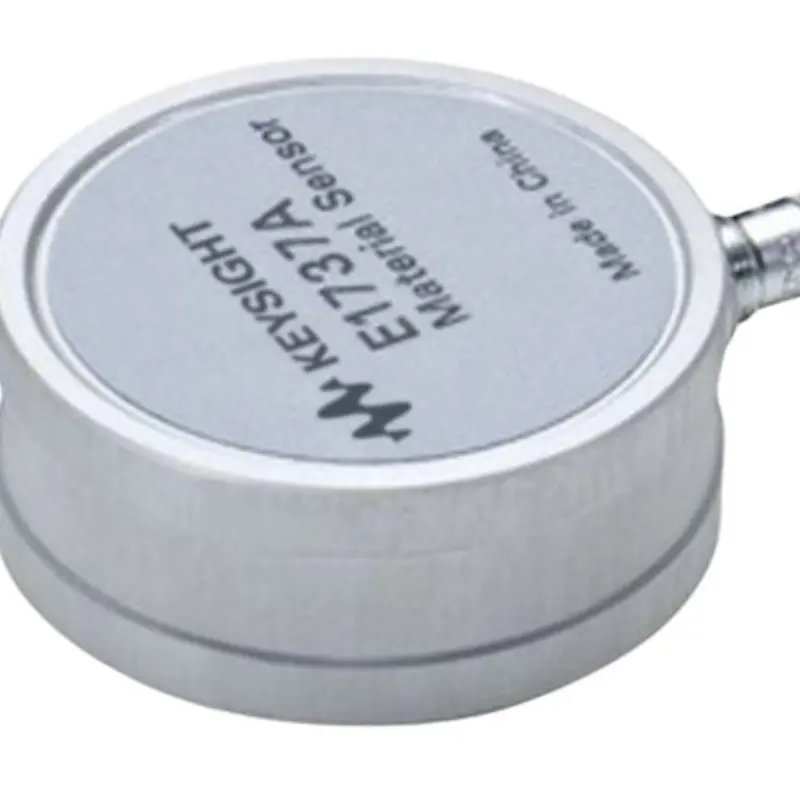

The Keysight E1737A Material Sensor monitors the temperature of the object or workpiece itself. This sensor detects temperature changes and automatically compensates for thermal expansion errors.

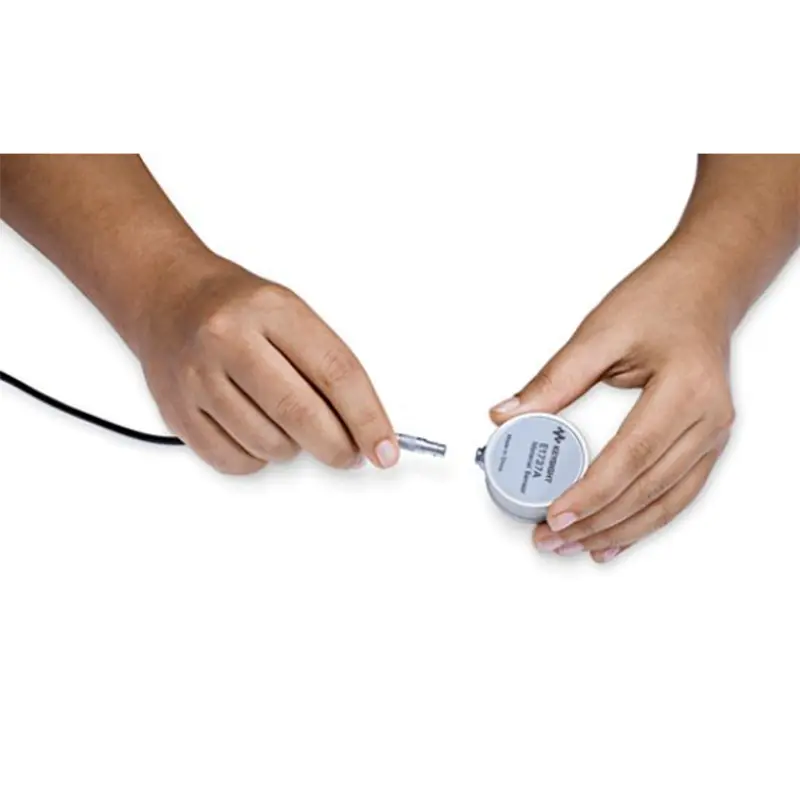

Interchangeable sensor cables are available in multiple lengths for air or material sensors. E1739A/B/C/D sensor cables come in 5-meter, 10-meter, 15-meter, and 25-meter lengths, featuring convenient snap-on connectors for quick cable replacement.
The Keysight 5530 Laser Calibration System, when integrated with environmental compensation components like the E1737A sensor, enhances manufacturing consistency, improves product quality and reliability, and supports precision manufacturing.
| Specification Parameter | Value / Details |
|---|---|
| Measurement range | 0-40°C (32-104°F) |
| Measurement accuracy | +0.1°C (± 0.2°F) with yearly calibration |
| Measurement resolution | 0.004°C (0.007°F) |
| Time constant | 60 s typical |
| Refresh rate | per 4 s |
| Power requirement | +3.3 V at maximum current (6 mA) +3.3 V at average current (0.3 mA) |
| Power dissipation | 1 mW typical |
| Dimensions | Φ 42 x 17.5 mm (Φ 1.65 x 0.7 in) |
| Weight | 30 g (0.07 lb) |
Models: Keysight E1737A Material Temperature Sensor monitors
Dimension: Φ42 x 17.5 mm
Weight: 30 g
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
The Keysight E1737A Material Sensor is designed to monitor the temperature of a specific object or workpiece, detecting changes to automatically compensate for thermal expansion errors.
Compatible E1739A/B/C/D sensor cables are available in lengths of 5 meters, 10 meters, 15 meters, and 25 meters, featuring snap-on connectors for quick replacement.
The sensor has a measurement range of 0-40°C (32-104°F) and achieves an accuracy of +0.1°C (± 0.2°F) when maintained with yearly calibration.
It integrates with the Keysight 5530 Laser Calibration System as part of its environmental compensation components, helping to improve system repeatability, manufacturing consistency, and precision.
The sensor measures Φ 42 x 17.5 mm (Φ 1.65 x 0.7 in) and weighs approximately 30 g (0.07 lb).
The E1737A requires +3.3 V of power, with a maximum current of 6 mA, an average current of 0.3 mA, and a typical power dissipation of 1 mW.
