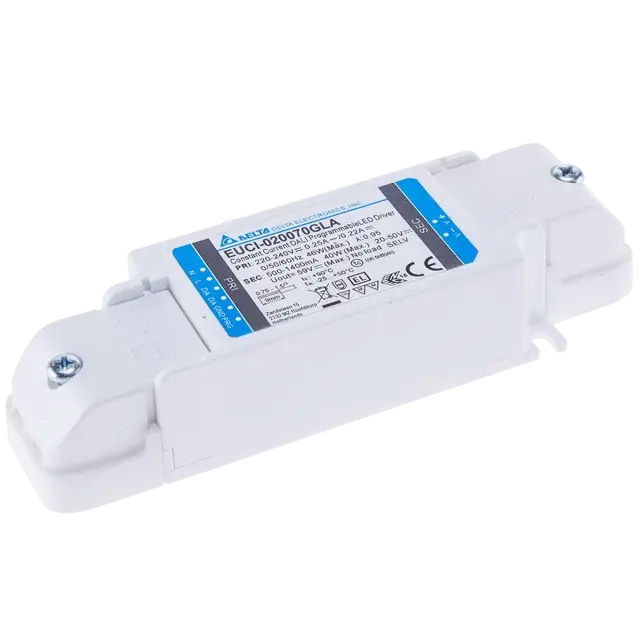

Delta LED Driver EUCI MINI Series EUCI - 020070GLA is an excellent LED driver.

Constant current design.

Applications: With an IP20 protection rating, it is suitable for indoor lighting applications such as LED lighting systems in offices, shopping centres, schools, hospitals, and residential settings.

Send Inquiry

Product Description

Performance Features

High Efficiency

Achieves up to 86% efficiency, effectively reducing energy consumption and enhancing electrical energy utilisation.

Constant Current Design

Employing constant current technology ensures stable LED operation. Output current is programmable via dedicated tools, with grid stability of ±1% for output voltage/current and ±5% load stability.

Comprehensive Protection

Incorporates multiple safeguards including overvoltage, overcurrent, and short-circuit protection. Features common-mode 6kV / differential-mode 6kV surge immunity, effectively shielding both LED lamps and the driver itself from electrical faults.

Flexible Control Options

Supports DALI control for functions such as LED dimming. Also suitable for emergency lighting systems, offering enhanced flexibility in lighting management.

Convenient Installation

Available in built-in or standalone configurations, featuring a plug-in strain relief device for straightforward mounting and securing, suitable for diverse indoor lighting installations.

Low-noise Operation

Produces minimal operational noise, avoiding environmental disturbance, making it ideal for noise-sensitive environments.

Certifications and Standards

Certified to CB, ENEC, and RoHS standards, compliant with IEC/EN 61000-3-2 Class C, ensuring adherence to international safety and environmental regulations with assured quality.

Specifications

Parameter	Value
Case Chassis / Cover	Plastic
Unit Weight	0.19 kg (0.42 lb)
Dimensions	147.0 x 43.0 x 30.0 mm
Operating Temperature	-25°C to +50°C
Storage Temperature	-40°C to +85°C
Operating Humidity	10 to 60% RH (Non-Condensing)
Overvoltage Protection	Max. 60V, Auto-Recovery when the fault is removed
Over Temperature Protection	Auto-Recovery when the fault is removed
Short Circuit Protection	Auto-Recovery when the fault is removed
Output Current	0.7A
Output Voltage	24-54V
Output Voltage Range	24-54Vdc
Output Power	20W
Line Regulation	± 1%
Load Regulation	± 5%
Start-up Time	< 200ms @ 230Vac
Rise Time	< 100ms @ 230Vac
Nominal Input Voltage	220-240Vac
Input Voltage Range	198-264Vac
Nominal Input Frequency	50/60Hz
Input Frequency Range	47-63Hz
Nominal DC Input Voltage	220-240Vdc
DC Input Voltage Range	176-280Vdc
Efficiency at 100% load	86% typ. @ 230Vac
Power Factor at 100% load	> 0.95 @ 230Vac/50Hz
Leakage Current	< 0.7mA @ 230Vac
Total Harmonic Distortion	< 15% @ 230Vac/50Hz at 100% load

Model & Delivery Information

Models

DELTA LED Driver EUCI MINI Series EUCI-020070GLA

Dimensions (H x W x D)

147.0 x 43.0 x 30.0 mm

Unit Weight

0.19 kg (0.42 lb)

Battery Parameters

Without battery

The delivery cycle of industrial products is influenced by various factors, such as the inventory status of the products, the scale of the order quantity, the region where the customers are located, and the choice of transportation methods.

Manuals & Resources

DELTA LED Driver EUCI MINI Series EUCI-020070GLA datasheet.pdf

Datasheet Available

Frequently Asked Questions

What is the efficiency rating of the DELTA LED Driver EUCI MINI Series?

The DELTA LED Driver EUCI MINI Series achieves an energy efficiency rating of up to 86%, effectively minimizing energy waste and maximizing electrical utilization.

Does this LED driver provide electrical surge protection?

Yes, it features built-in protection against overvoltage, overcurrent, and short circuits. It also provides common-mode 6kV and differential-mode 6kV surge immunity to safeguard both the driver and the connected LED systems.

Can the output current of the EUCI-020070GLA driver be programmed?

Yes, the constant output current is programmable through dedicated configurations. It operates stably with a grid regulation limit of ±1% for voltage/current and a load regulation within ±5%.

What are the physical dimensions and weight of this unit?

The physical dimensions of the driver are 147.0 x 43.0 x 30.0 mm (H x W x D), and it features a lightweight design with a unit weight of approximately 0.19 kg (0.42 lb).

Is this product compliant with international environmental and safety standards?

Absolutely. The EUCI-020070GLA LED driver is certified under CB, ENEC, and RoHS guidelines, meeting the rigorous standards of IEC/EN 61000-3-2 Class C.

What factors determine the delivery timeline of this industrial LED driver?

The final delivery schedule depends on direct product inventory status, the overall volume of your order, the destination region, and the preferred method of transit.
