| Technical data | C6515-0080 | Options |
|---|---|---|

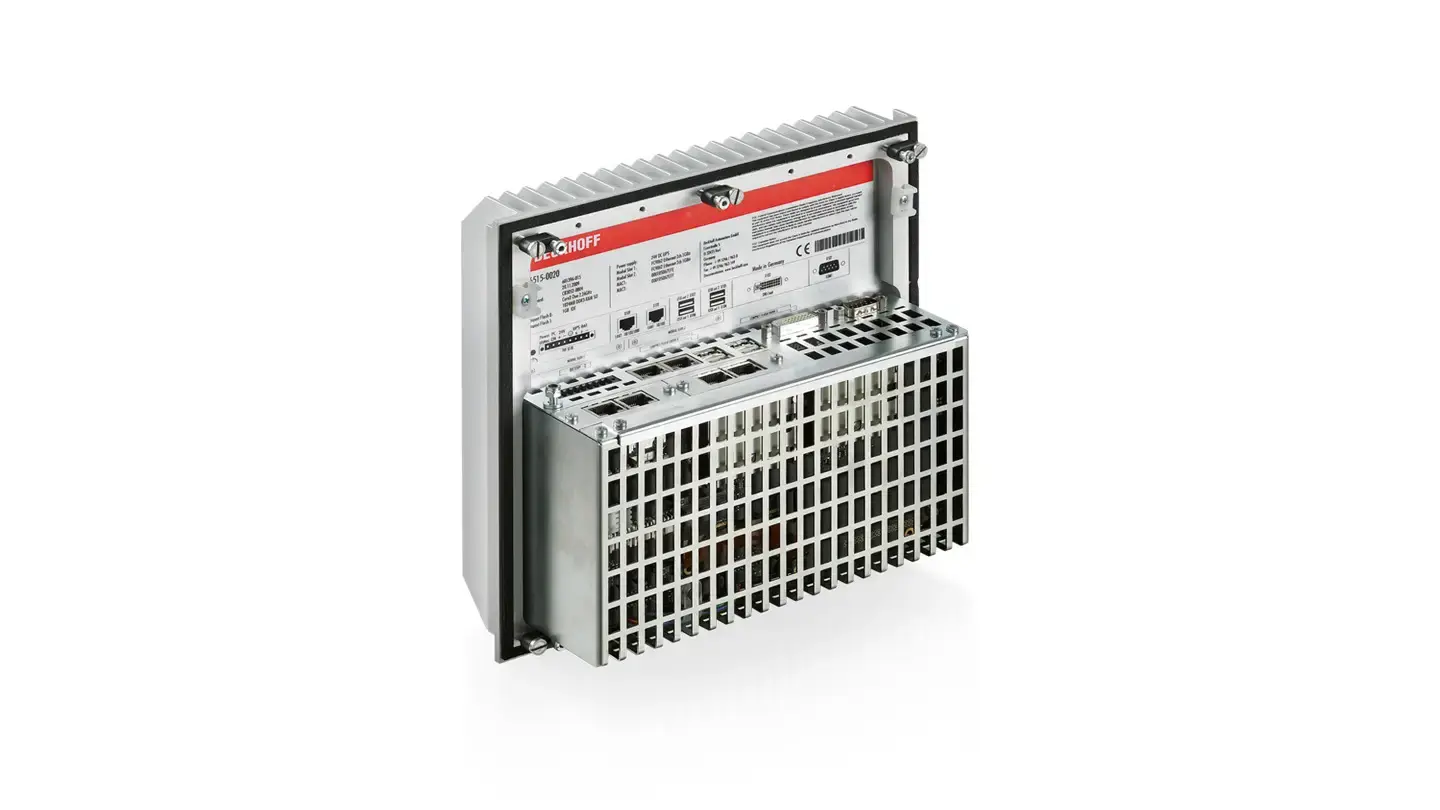

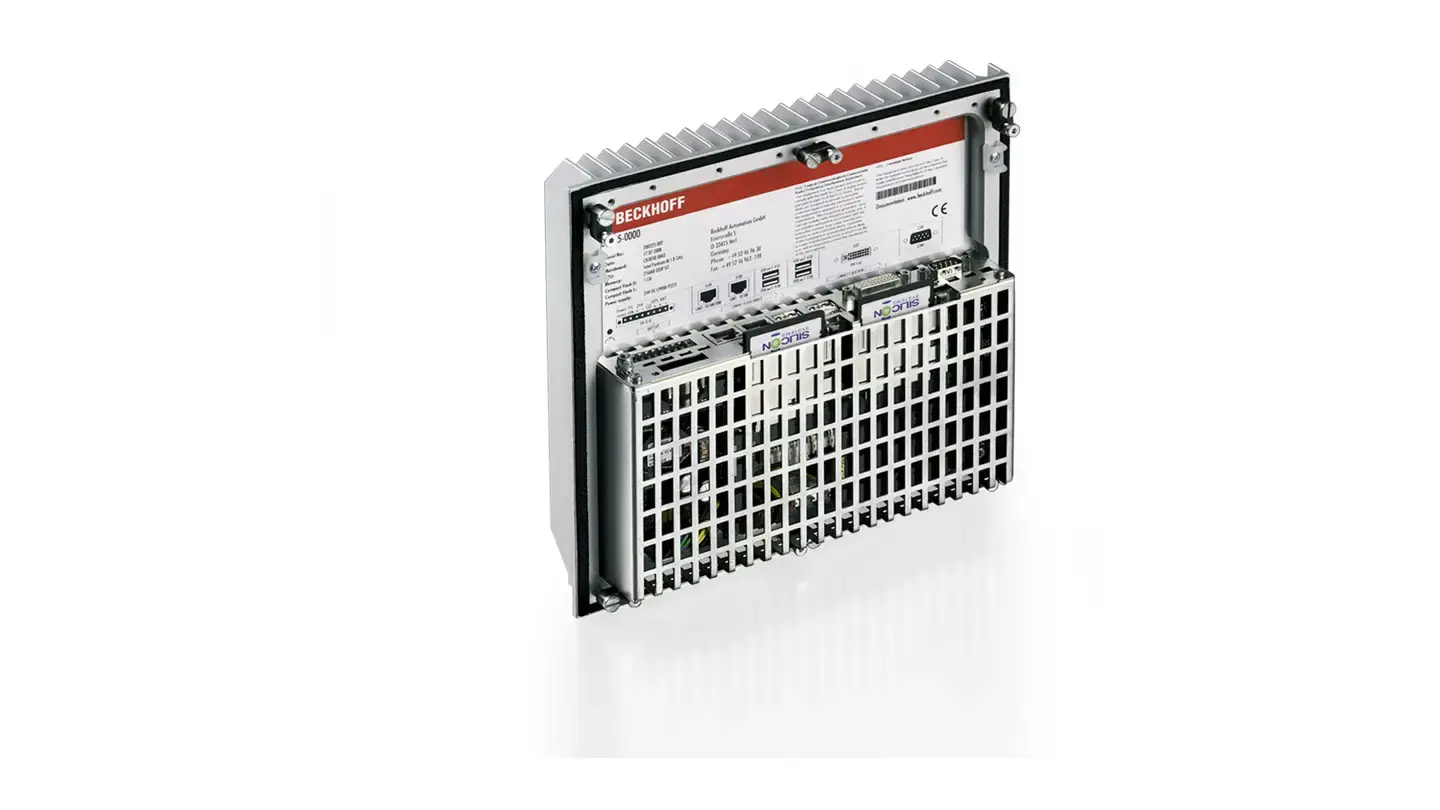

| Device type | Fanless built-in Industrial PC with external cooling to be mounted in the back panel of a control housing or in the wall of a control cabinet | – |
| Slots for hard disk/flash | 2 slots for CFast | – |

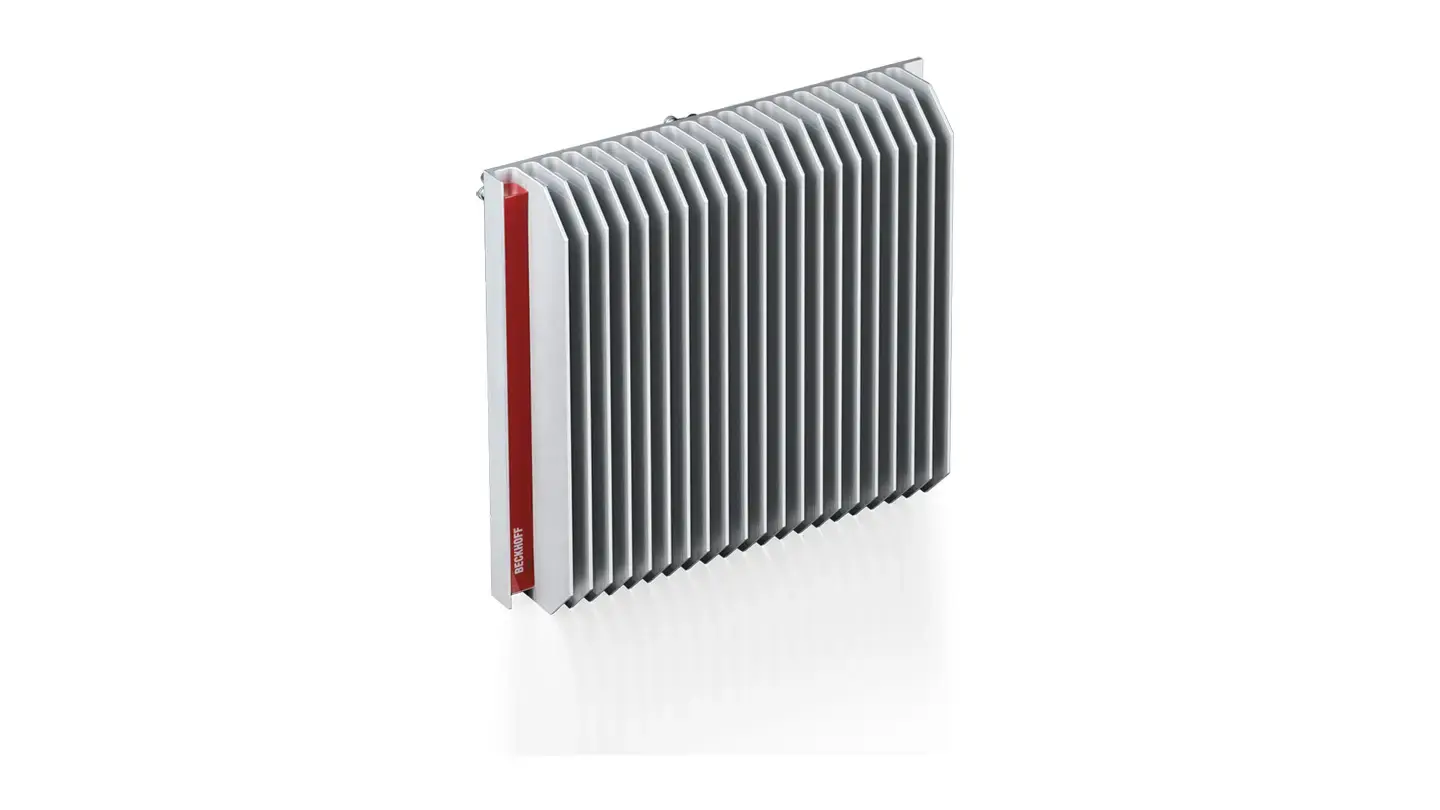

| Cooling | passive through heat sink structure outside | – |
| Free space for air circulation | 20 cm (7.9") around the heat sink required | – |
| Protection rating | outside IP65, inside IP20 | – |
| Operating temperature | outside 0…45°C, inside 0…55°C | – |
| Weight of basic configuration | 3 kg (6.6 lbs) | – |
| Dimensions (W x H x D) | 240 x 230 x 81 mm (9.5" x 9.1" x 3.2") | with PCIe module slots 107 mm (4.2") depth |
| Processor | Intel® Celeron® 6600HE 2.6 GHz base frequency, 2 cores (TC3: 50) | up to Intel® Core™ i7-11850HE 2.6 GHz, 8 cores (TC3: 80) |
| Motherboard | 3½-inch motherboard for 11th generation Intel® Celeron®, Core™ i3/i5/i7 | – |
| PCIe®/PCI™ slots | – | 2 PCIe® module slots |
| Memory | 4 GB DDR4 RAM | – |
| Graphic | integrated in the processor | – |
| Ethernet | 1 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board | – |
| RAID | on-board SATA RAID 1 controller | – |
| Hard disks/flash | 40 GB CFast card | up to 320 GB CFast card |

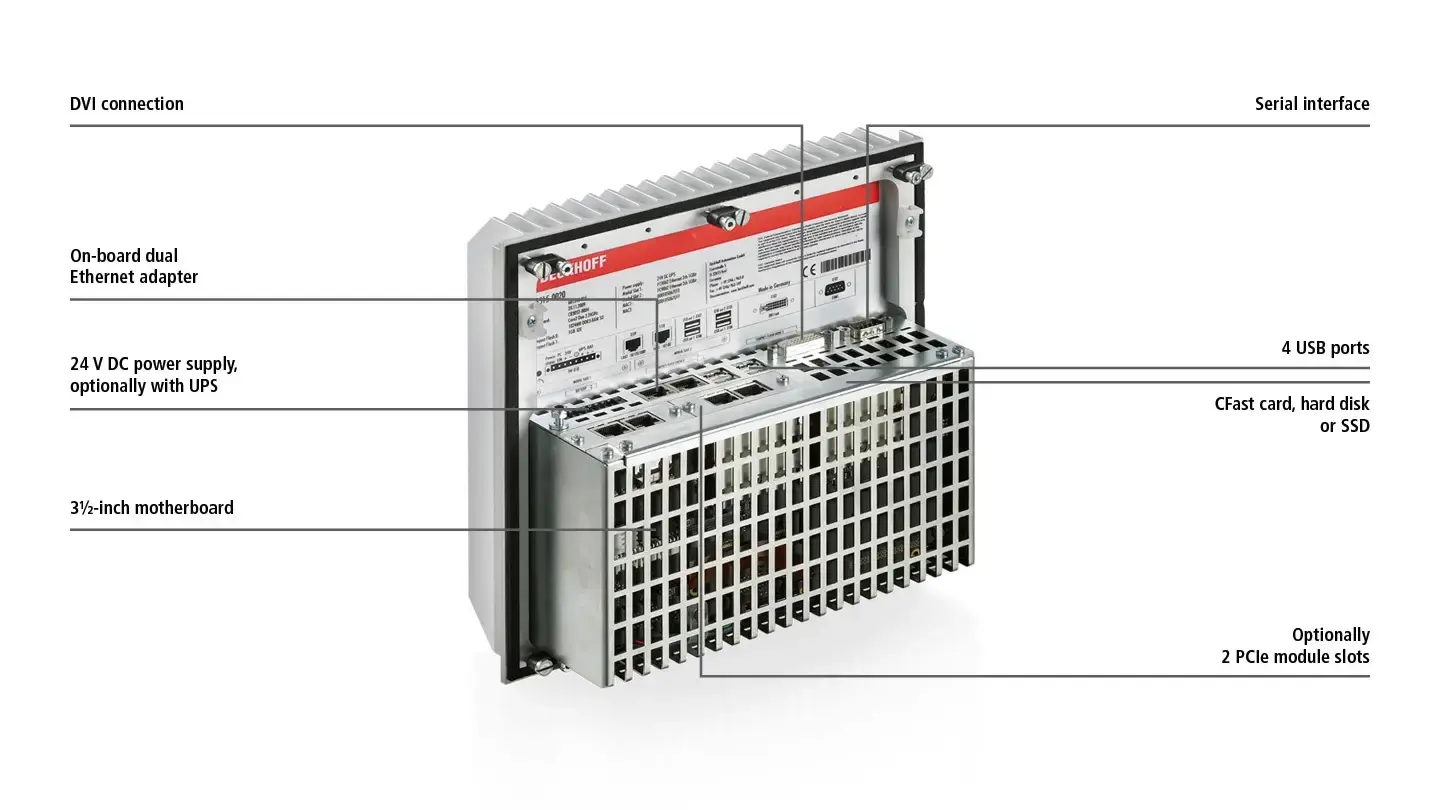

| Interfaces | 4 x USB 3.2 Gen. 2, 1 x RS232, 1 x DVI | – |
| Power supply | 24 V DC | UPS |
| Operating system | – | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2022, TwinCAT/BSD |
