Custom BeckHoff C6030-0080 Ultra-compact Industrial PC Exporters, Exporter

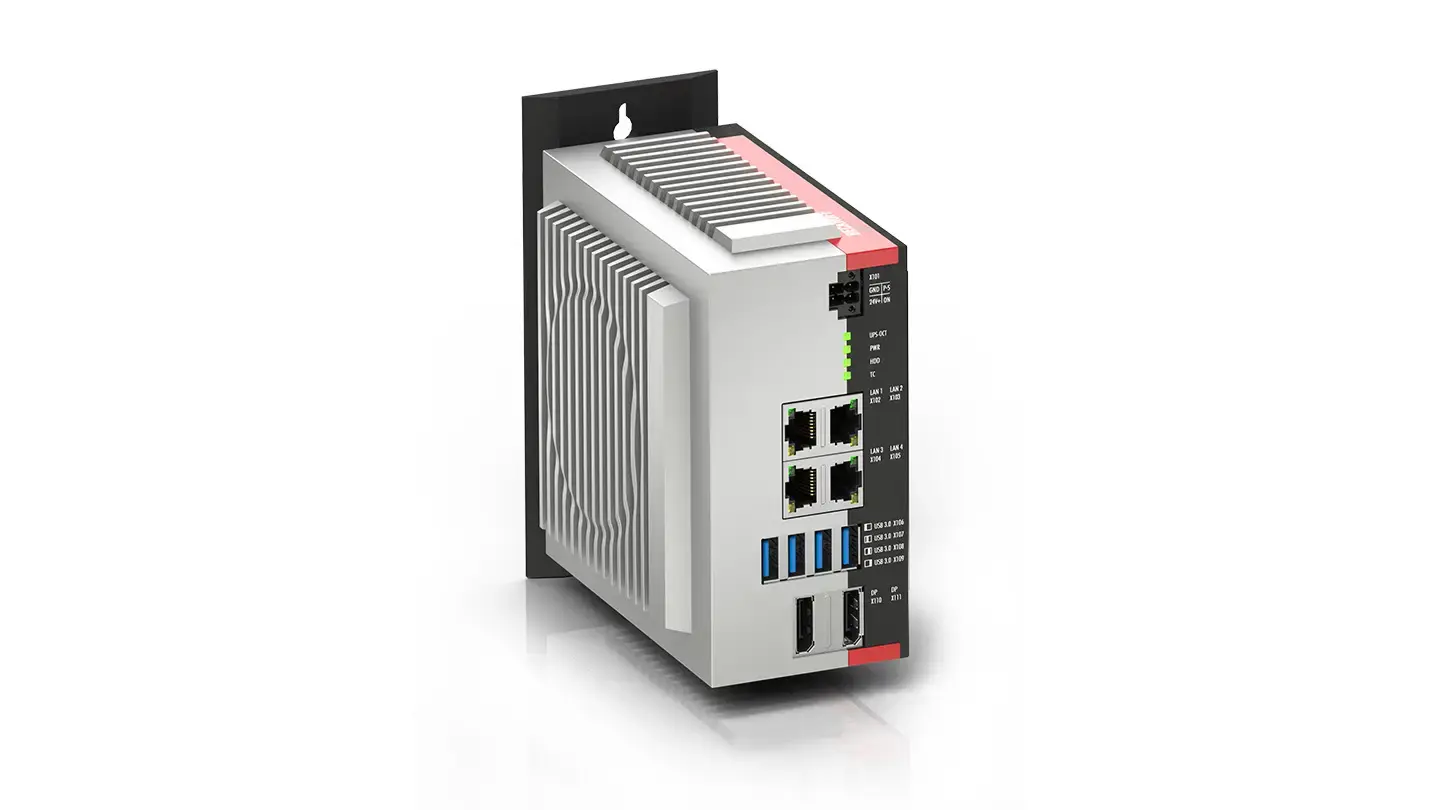

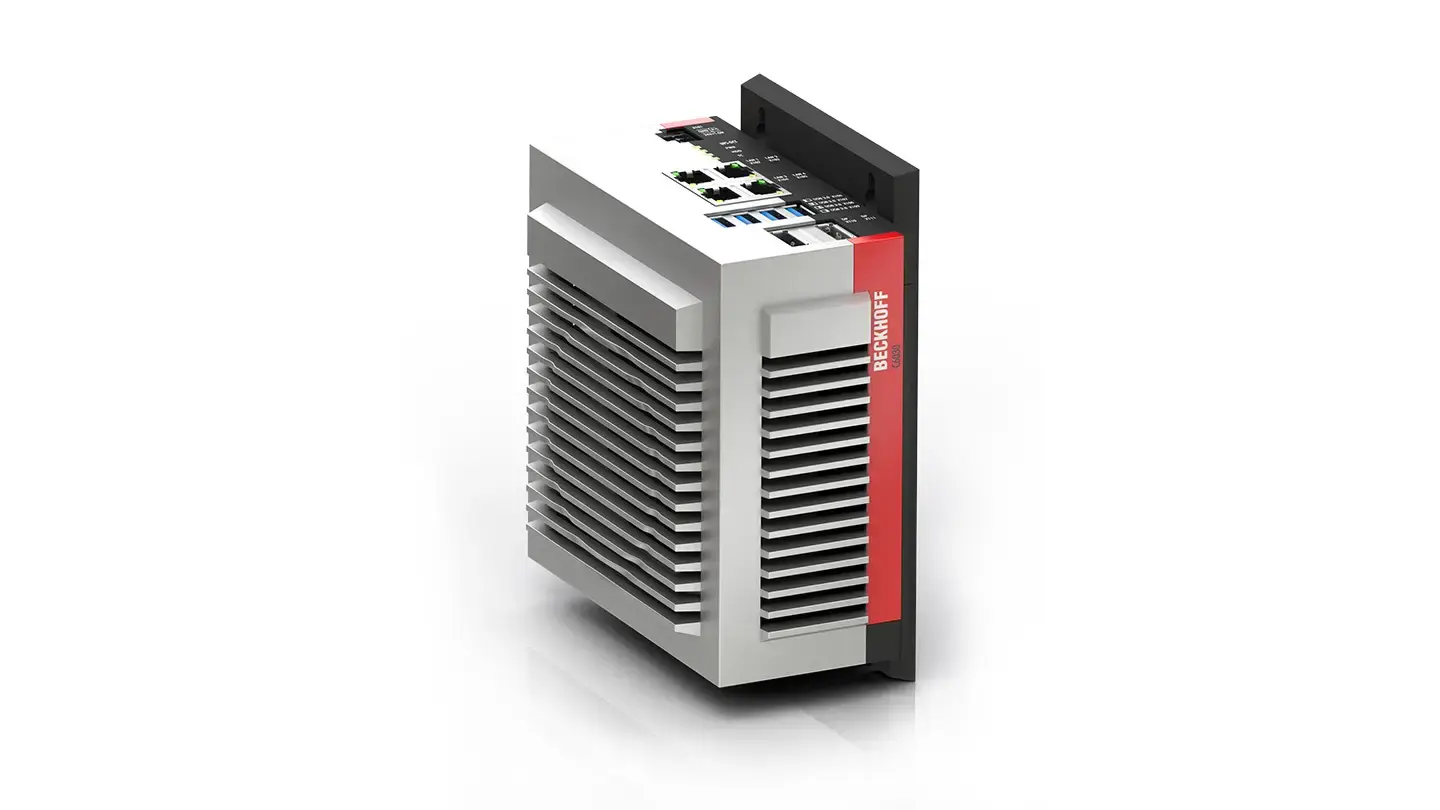

C6030-0080 is an ultra-compact industrial computer featuring,Â a high-performance processor: utilising 11th Generation IntelÂ® Coreâ„¢ i-series processors (up to IntelÂ® Coreâ„¢ i7), it achieves high power density within a compact chassis. This makes it suitable for complex automation and visualisation tasks, as well as diverse applications including image processing, large-scale data processing, and the Internet of Things.

Send Inquiry

Product Description

Overview
Specifications
Models
Delivery Information
Manuals + resources

■

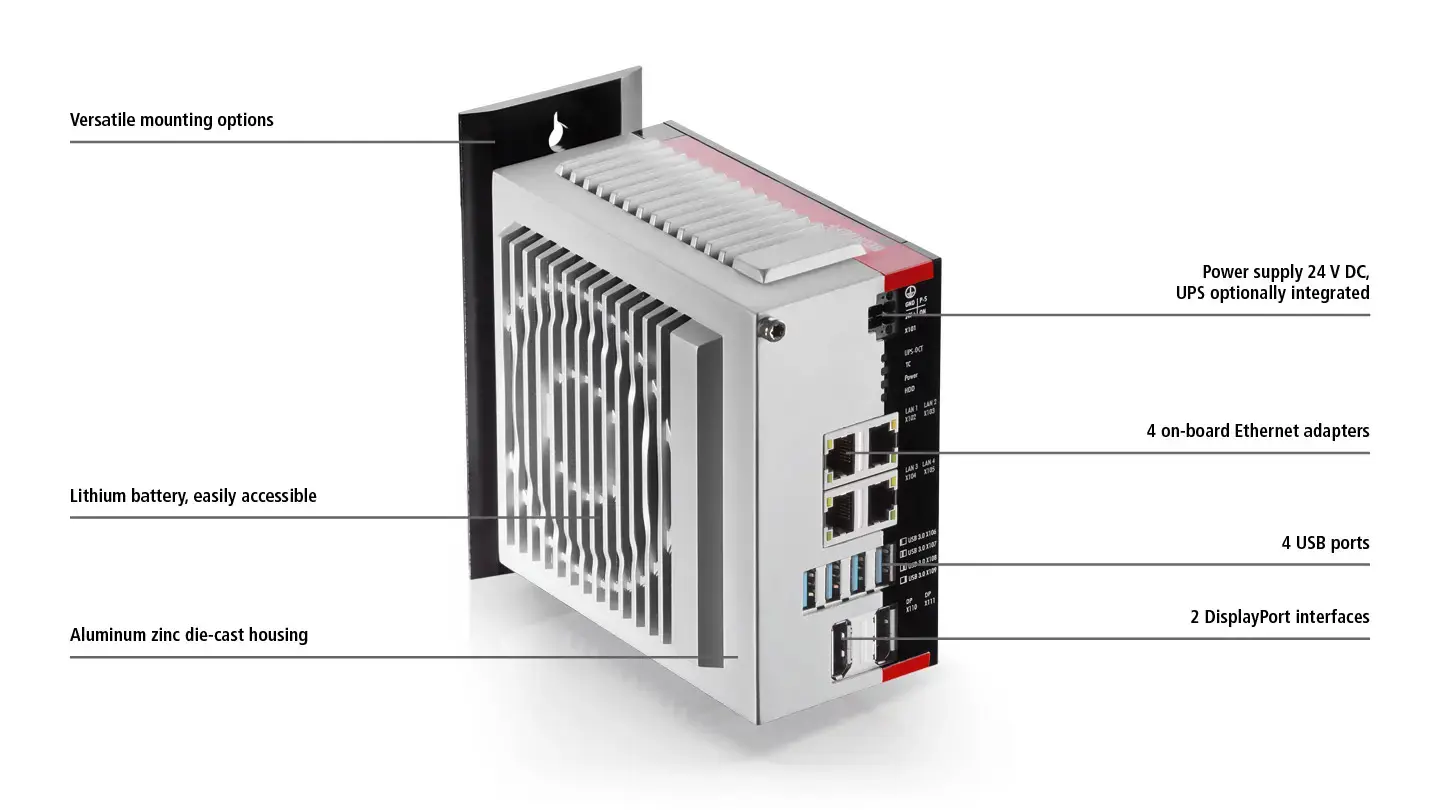

Extensive connectivity: Features an onboard Ethernet adapter with four 100/1000Base-T connectors, four USB 3.0 ports, and two DisplayPort connectors, making it highly suitable for networking, high-performance Ethernet control tasks, and vision systems.

■

Flexible mounting options: Multiple installation configurations are available for the rear panel of control cabinets or DIN rails, with freely orientable connection layers to accommodate installation in confined spaces.

■

Cost-optimised: Through an optimised housing and manufacturing concept, the C60xx series achieves cost efficiency without compromising industrial compatibility, quality, or durability.

■

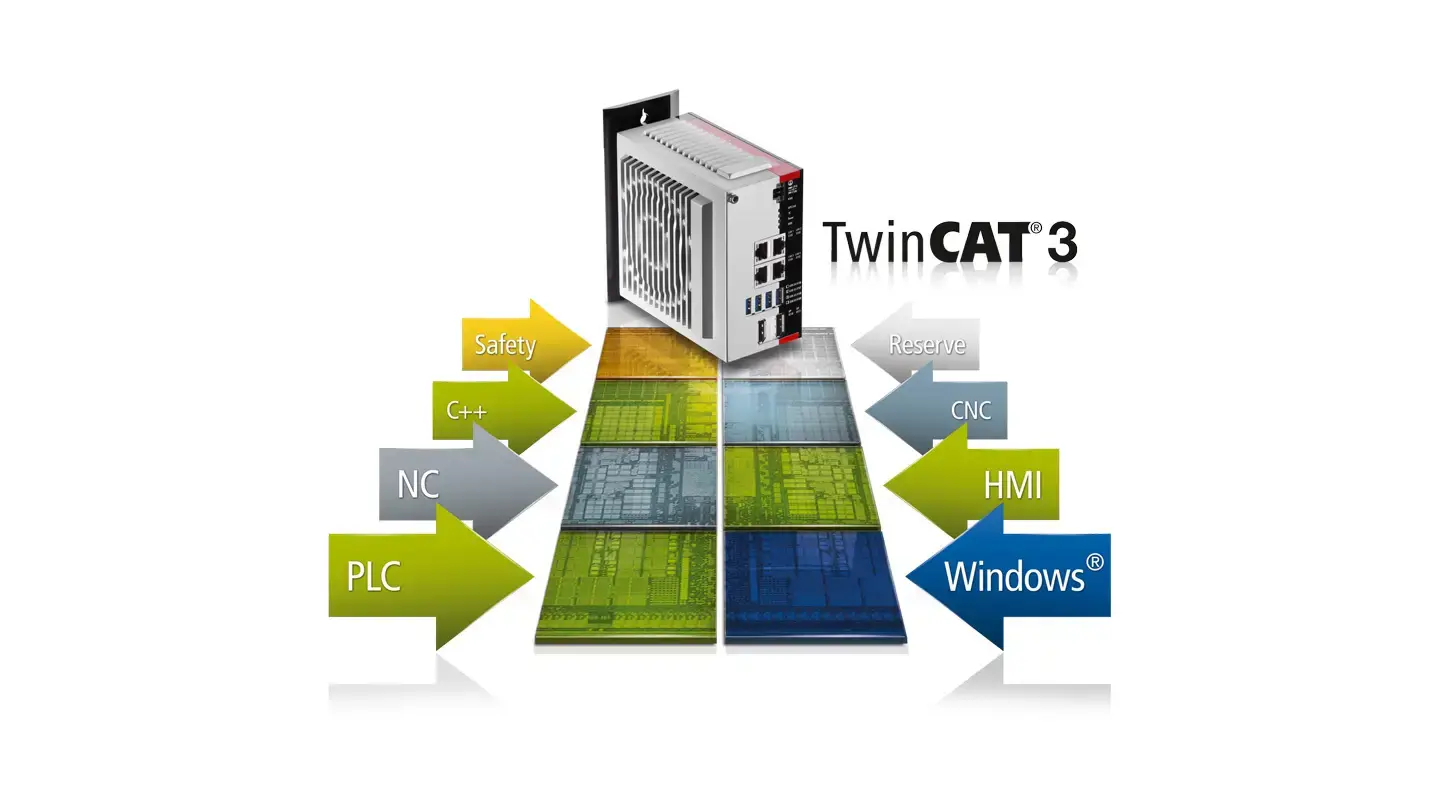

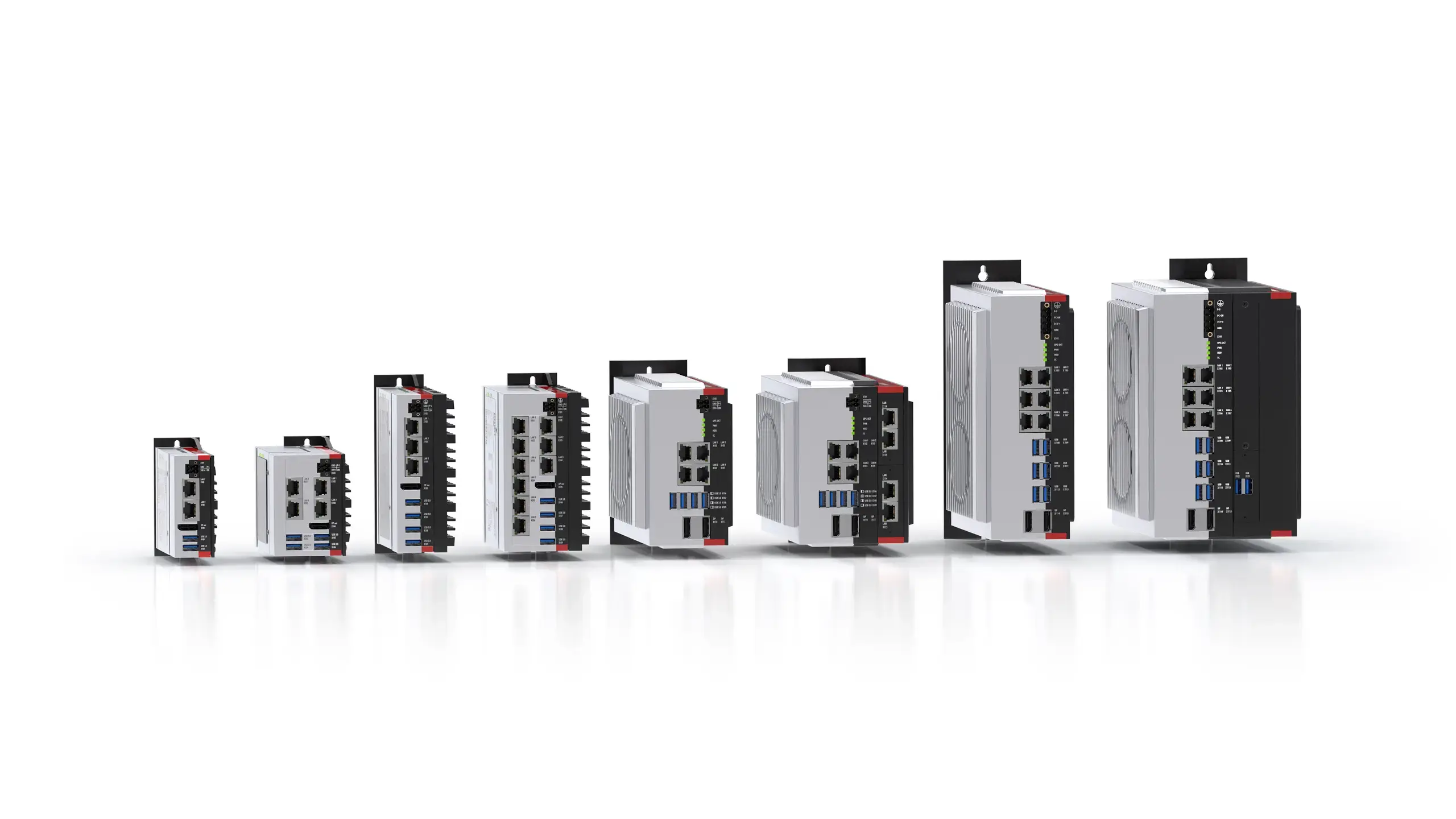

Driven by the commercial success of the C6015, particularly in IoT and Industry 4.0 applications, the ultra-compact control cabinet industrial PC series has been expanded with the C6030. Equipped with a high-performance Intel® Core™ i processor, the C6030 is ideally suited for diverse automation and visualisation tasks, including complex axis control, sophisticated HMI applications, low cycle times, and the management of substantial data volumes. This delivers fully integrated TwinCAT interoperability based on TwinCAT and EtherCAT, alongside complete EtherCAT integration and interoperability.

■

Delivering such potent computational power within such a compact enclosure was previously unattainable in industrial environments. Thanks to its extensive range of scalable processors, the C6030 can be precisely tailored to specific applications.

Technical data	C6030-0080	Options
Device type	Ultra-compact control cabinet PC	-
Housing	aluminum zinc die-cast housing	-
Installation	mounting sheet at the rear wall	mounting sheet at the side wall
Slots for hard disk/flash	2 slot for M.2 SSD	-
Free space for air circulation	5 cm (2") around the PC required	-
Protection rating	IP20	-
Operating temperature	0…55°C	-
Dimensions (W x H x D)	132 x 133 x 76 mm (5.2” x 5.24” x 3.0”), without mounting plate	-
Processor	Intel® Celeron® 6600HE 2.6 GHz base frequency, 2 cores (TC3: 50)	up to Intel® Core™ i7 11850HE 2.6 GHz base frequency, 8 cores (TC3: 80)
Motherboard	compact motherboard for 11th generation Intel® Celeron®, Core™ i3/i5/i7	-
Memory	4 GB DDR4 RAM	up to 64 GB DDR4 RAM
Graphic	integrated in the processor	-
Ethernet	3 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board	-
RAID	on-board RAID 1 controller for SATA and NVMe™/PCIe®	-
Hard disks/flash	40 GB M.2 SSD	up to 1280 GB M.2 SSD
Interfaces	2 x USB 3.2 Gen. 2, 2 x USB 3.2 Gen. 1, 2 x DisplayPort	-
Power supply	24 V DC	UPS CU81xx
Operating system	-	Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2022, TwinCAT/BSD

Models:

BeckHoff C6030-0080 Ultra-compact Industrial PC

Delivery Information:

The delivery cycle of industrial products is influenced by various factors, such as the inventory status of the products, the scale of the order quantity, the region where the customers are located, and the choice of transportation methods.

BeckHoff C6030-0080 Ultra-compact Industrial PC datasheet.pdf
Download

Frequently Asked Questions (FAQ)

Q1: What are the primary applications for the C6030-0080 industrial PC?

A1: The C6030-0080 is highly suited for diverse automation and visualisation tasks, including complex axis control, sophisticated HMI applications, low cycle times, and the management of large data volumes in IoT and Industry 4.0 environments.

Q2: What mounting options are available for the C6030-0080?

A2: It offers flexible mounting options, including installation on the rear panel of control cabinets or DIN rails, with freely orientable connection layers to fit into confined spaces.

Q3: How expandable is the memory and storage on this industrial PC?

A3: The memory can be expanded from the base 4 GB DDR4 RAM up to 64 GB DDR4 RAM, and the storage supports up to a 1280 GB M.2 SSD via 2 slots.

Q4: What operating systems are supported by the C6030-0080?

A4: It supports Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2022, and TwinCAT/BSD.

Q5: What interfaces are included for connectivity?

A5: The device features onboard Ethernet with four connectors (3 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T), two USB 3.2 Gen. 2 ports, two USB 3.2 Gen. 1 ports, and two DisplayPort connectors.
