Custom Autonics Visual sensor VG-C04W-8E Suppliers, Product

Min. sensing distance : 50mm

Power supply : 24VDCÂ Â Â±10%

Current consumption : 1A

Inspection_Inspection item : Alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting, color identification, area of color, object of color counting

Inspection_Work group : 32

Protection structure : IP67(IEC standard)

Send Inquiry

Product Description

Product Overview

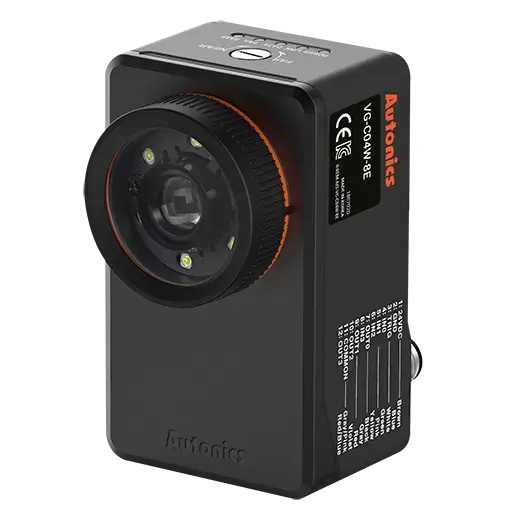

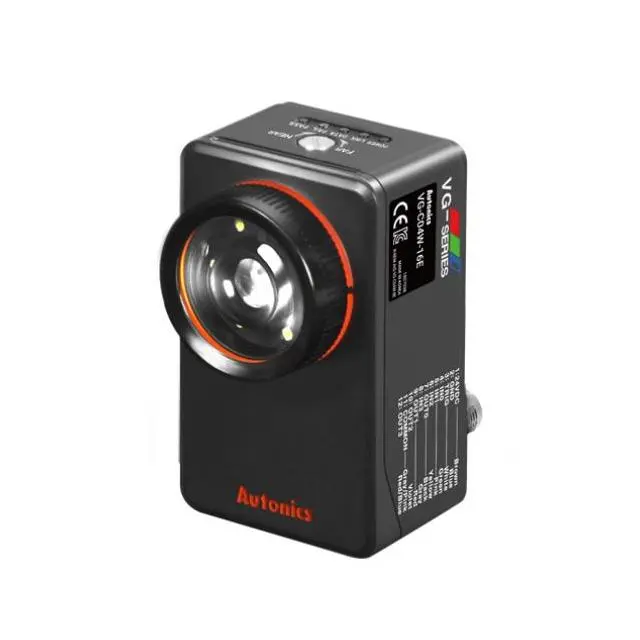

The Autonics Visual sensor VG-C04W-8E is a high-performance color vision sensor designed to inspect and analyze target objects using color and pattern analysis.

Basic Parameters

Sensor Type: 1/3-inch color CMOS image sensor

Resolution: 752×480 pixels

Focal Length: 8mm

Min. Distance: 50mm

Power Supply: 24VDC ± 10% (Current consumption: 1A)

Communication: Ethernet (TCP/IP) functionality

Detection Functions

Supports alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting, color recognition, color area, and color object counting.

Capable of detecting up to 64 points simultaneously. Up to 32 independent workgroups can be configured.

Technical & Software Features

Global Shutter: Minimizes motion blur to capture precise images.

Vision Master: Equipped with free management software featuring a simulator function, parameter/workgroup control, and multi-language support.

Environment Guard: Robust IP67 protection rating (IEC standard).

Technical Specifications

Min. sensing distance	50mm
Power supply	24VDC ±10%
Current consumption	1A
Inspection Item	Alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting, color identification, area of color, object of color counting
Work group	32
Simultaneous inspection	64
Camera frame per second	Max. 60fps
Image filter	Preprocessing, external filter (color filter, polarizing filter)
Image element	1/3 inch color CMOS
Resolution	752×480 pixel
Shutter	Global shutter
Exposure time	20 to 10,000 µs
Light ON/OFF method	Pulse
Light Color	White
Trigger mode	External trigger, internal trigger, free-run trigger
Input Signal	Rated input 24VDC (±10%)
Input Type	External trigger input (TRIG), encoder input (IN2, IN3), work group change (IN0 to IN3)
Output Signal	NPN or PNP open collector output (Max. 24VDC 50mA, residual voltage: max. 1.2VDC)
Output Type	Control output (OUT0 to OUT3): inspection completion, inspection result, external light trigger, alarm, camera busy
FTP transmission	Possible
Protection circuit	Output short over current protection circuit
Indicator	• Power indicator (POWER), Ethernet connection indicator (LINK), pass indicator (PASS): Green LED • Data transmission indicator (DATA): Orange LED • Failure indicator (FAIL): Red LED
Insulation resistance	≥ 20 MΩ (500 VDC megger)
Dielectric strength	500VAC~ 50/60Hz for 1 min.
Vibration	1.5mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours
Shock	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Ambient temperature	Operation: 0 to 45℃, Storage: -20 to 70℃
Ambient humidity	35 to 85% RH (Storage: 35 to 85% RH)
Protection structure	IP67 (IEC standard)
Material	Case: aluminium, lens cover/focus adjuster: polycarbonate, cable: polyurethane
Accessories	Assembly tool, bracket A, mounting screw (x2)
Sold separately	Light, color filter, polarizing filter, power I/O cable, Ethernet cable, bracket B, protection cover
Weight	Approx. 415g (Net weight: approx. 273g)

Models Available

VG Series: VG-C04W-8E

Delivery & Packaging Information

Net Weight: 273g

Weight With Packaging: 415g

Manuals + Resources

MT4Y-DV-40 Documentation

Frequently Asked Questions

Q: What are the sensor resolution and image specifications of the VG-C04W-8E?

A: The VG-C04W-8E vision sensor features a 1/3-inch color CMOS image sensor with a resolution of 752×480 pixels.

Q: What inspection functions does this color vision sensor support?

A: It supports a wide range of inspection parameters including alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting, color identification, color area, and color object counting.

Q: What are the power requirements and environmental rating for this sensor?

A: The sensor operates on a 24VDC ± 10% power supply with a current consumption of 1A. It features an IP67 protection structure, making it dustproof and waterproof.

Q: How many simultaneous inspection points and workgroups can be configured?

A: You can set up to 32 independent workgroups, and each workgroup supports up to 64 simultaneous detection points.

Q: Does the sensor support FTP transmission and network communications?

A: Yes, it features Ethernet communication (TCP/IP) capability and supports direct data transmission to FTP servers.

Q: What is the benefit of the global shutter mechanism used in the VG-C04W-8E?

A: The global shutter captures the entire frame simultaneously, allowing the sensor to accurately capture clear images of moving objects and minimize motion blur.
