The NRP6AN is a high-performance average power sensor specifically engineered for electromagnetic compatibility (EMC) testing scenarios. It combines wide frequency coverage, exceptional dynamic range, and flexible connectivity to meet the rigorous demands of EMC compliance testing, component validation, and signal integrity analysis.
EMC testing requires precise measurement of both weak interference signals and strong emission signals—parameters the NRP6AN is optimized for:
Dimensions: 48 mm (W) × 30 mm (H) × 138 mm (D)
Weight: 0.20 kg (0.44 lb)
Compact form factor fits into tight spaces, making it lightweight for easy mounting on test stands or portable setups.
| Features | |
|---|---|

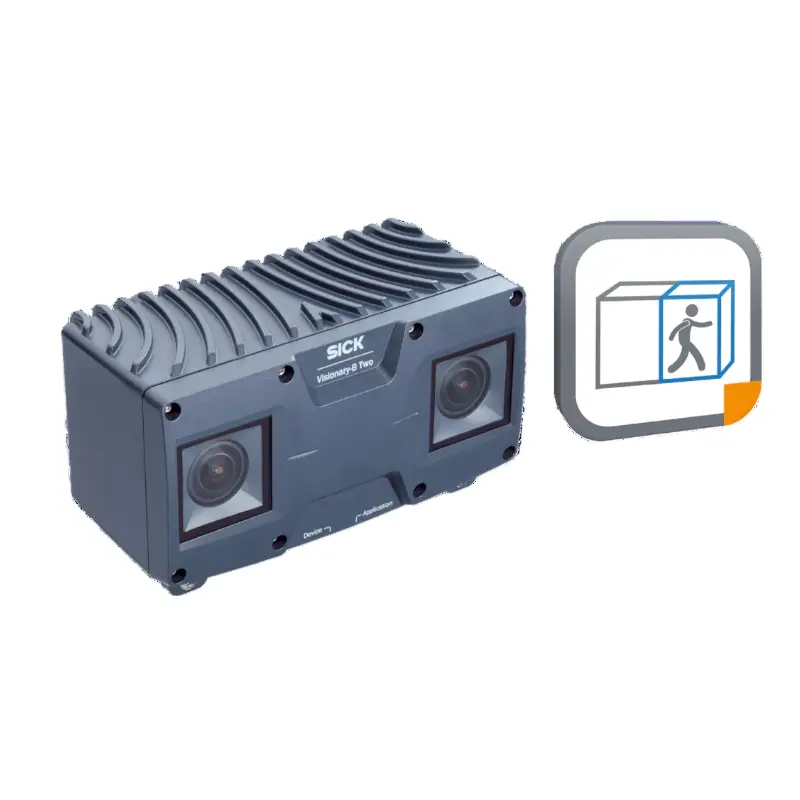

| Technology | 3D snapshot stereoscopy |
| Configurable | ✓ |
| SensorApp | AI-Assist, for detecting people and objects |
| Working range | 0.28 m ... 16 m / 0.65 m ... 37 m |
| Field of view | Wide: 130° x 105° (configurable) Narrow: 90° x 60° (configurable) |
| Exposure mode | Automatic / Single or multiple (HDR) |
| Detectable objects | All objects (including people) |
| Classified objects | Persons |
| Neuronales Netzwerk | YOLOX-L customized network, updatable |
| Task | Detecting standard objects, protecting vehicles/people, warning in outdoor areas, processing & visualizing data, 3D position determination |
| Mechanics / Electronics | |
|---|---|
| Connection type | Power/IO: M12 17-pin, A-coded Gigabit Ethernet: M12 8-pin, X-coded |
| Supply voltage | 10 V DC ... 57 V DC |
| Power consumption | Typ. 19.5 W |
| Peak current | 2 A |
| Input voltage | 5 V ... 60 V |
| Output voltage | 9 V ... 57 V |
| Output current | ≤ 100 mA |
| Enclosure rating | IP67, IP69, IPX9K |
| Housing color | Anthracite |
| Weight | 1.5 kg |
| Dimensions (L x W x H) | 162 mm x 96.3 mm x 79.3 mm |
| Performance & Ambient Data | |
|---|---|
| Sensor resolution | 1024 px x 576 px |
| Number of monitored fields | ≤ 16 |
| Scan/frame rate | ≤ 18 fps |
| Response time | Typ. 200 ms |
| Electromagnetic compatibility | EN ISO 14982 (Agricultural), EN ISO 13766-1 (Earth-moving), EN 12895+A1 (Industrial trucks) |
| Vibration resistance | 5 g, 10 Hz... 500 Hz (IEC 60068-2-6) 4.24 gRMS, 10 Hz... 250 Hz (IEC 60068-2-64) |
| Ambient operating temp. | -40°C ... +55°C |
| Storage temperature | -40°C ... +85°C |
