The DCS550 Standard DC Drive is a compact and feature-rich drive solution designed for machinery manufacturers. Below is an overview of the product and its specifications:
Features a compact design suitable for both new machine designs and retrofitting existing machinery. Both the control board and power interface board feature coated surfaces, with internally marked C-type cables and tin-plated copper bars, achieving an IP00 protection rating.
Incorporates an integrated three-phase excitation module (up to 35A), multiple communication options, PID controllers, 16 customisable programmable function blocks, and curling software programmes. This minimises the need for additional components when integrating DC drive control.
The standard version incorporates multiple standard hardware interfaces, including connections for encoders, analogue tachogenerators, and four analogue input devices.
The auxiliary control panel, integral to the standard unit, features multilingual alphanumeric display and multilingual help functions. DriveWindow Light serves as a user-friendly commissioning and maintenance tool, ensuring straightforward and efficient start-up and servicing of the DCS550 DC drive.
Incorporates safety functions including overload protection, short-circuit protection, motor de-synchronisation protection, and over-temperature protection. The emergency stop function immediately cuts the motor power supply and halts its movement under any circumstances.
| Material Compliance | |
| REACH Declaration | Reach Declaration Arc Guard System |
| RoHS Declaration | 2AGS2022-006277-RoHS |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment |
| Conflict Minerals Reporting Template (CMRT) | CMRT - Conflict Minerals Reporting Template |
| Toxic Substances Control Act - TSCA | 2CMT001035D0902a |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C Storage -25 ... +85 °C |
| Ordering | |
| EAN | 7320500524930 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 155.5 mm |
| Product Net Height | 141.1 mm |
| Product Net Depth / Length | 63.8 mm |
| Product Net Weight | 0.42 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 203 mm |
| Package Level 1 Height | 126 mm |
| Package Level 1 Depth / Length | 206 mm |
| Package Level 1 Gross Weight | 0.58 kg |
| Package Level 1 EAN | 7320500524930 |
| Additional Information | |
| Product Main Type | TVOC-2 |
| Product Name | Current Sensing Unit |
| Suitable For | TVOC-2 |
| Technical | |
| Mounting Type | Wall mounted or DIN |
| Number of Auxiliary Contacts CO (SPDT) | 1 |
| Rated Operational Voltage | 24 ... 240 V AC 24 ... 250 V DC |
| Terminal Type | Screw Terminals |
| Certificates and Declarations | |
| Data Sheet, Technical Information | India Arc Guard System - TVOC-2 -Edition May 2025 |
| Declaration of Conformity - CE | CE Declaration of Conformity - Current sensing unit - CSU-2 |
| Instructions and Manuals | CSU-2 Installation and maintenance guide |
| External Classifications and Standards | |
| ETIM 9 | EC001439 - Timer relay |
| ETIM 10 | EC001440 - Current monitoring relay |
| UNSPSC | 39122331 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.0:27371605 |
| Product Main Type | TVOC-2 |
| Product Name | Current Sensing Unit |
| Suitable For | TVOC-2 |
| Delivery Information | |
| Product Net Width | 155.5 mm |
| Product Net Height | 141.1 mm |
| Product Net Depth / Length | 63.8 mm |
| Product Net Weight | 0.42 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 203 mm |
| Package Level 1 Height | 126 mm |
| Package Level 1 Depth / Length | 206 mm |
| Package Level 1 Gross Weight | 0.58 kg |
| Package Level 1 EAN | 7320500524930 |
The DCS550 DC Drive features a compact construction suitable for both retrofits and new installations. It features coated control and power interface boards, internally marked C-type cables, and tin-plated copper bars, achieving an IP00 protection rating.
The device is designed to operate in ambient air temperatures from -25°C up to +70°C. For storage, it can withstand temperatures ranging from -25°C to +85°C.

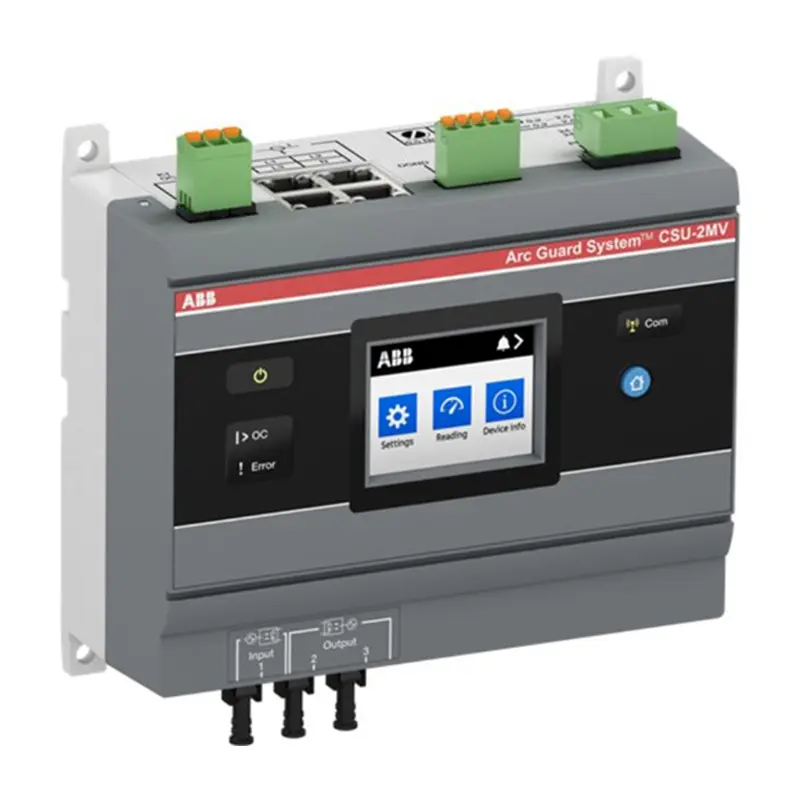

The Current Sensing Unit supports both wall-mounted and DIN-rail installation options, providing flexibility for different cabinet setups.
It features standard Screw Terminals for secure electrical wiring, accommodating rated operational voltages of 24 to 240 V AC and 24 to 250 V DC.
The net dimensions of the unit are 155.5 mm (Width) x 141.1 mm (Height) x 63.8 mm (Depth/Length), with a lightweight net weight of 0.42 kg.
