China Tektronix TBS1000C Digital Storage Oscilloscope TBS1052C TBS1052C-EDU TBS1072C TBS1102C Manufacturer, Product

ForÂ smallÂ businessÂ owners,Â embeddedÂ designers,Â andÂ educationalÂ institutions,Â theÂ TBS1000CÂ oscilloscopeÂ offersÂ industry-leadingÂ qualityÂ andÂ dependability. TheÂ 2-channelÂ scopeÂ givesÂ youÂ theÂ confidenceÂ toÂ studyÂ andÂ experimentÂ withÂ itsÂ user-friendlyÂ interface,Â integratedÂ support,Â andÂ five-yearÂ warranty. TheÂ TBS1000CÂ makesÂ itÂ easyÂ toÂ accomplishÂ yourÂ objectives,Â whetherÂ you'reÂ anÂ engineer,Â student,Â orÂ businessÂ owner.

Send Inquiry

Product Description

Overview

Specifications

Models

Delivery Information

Manuals + Resources

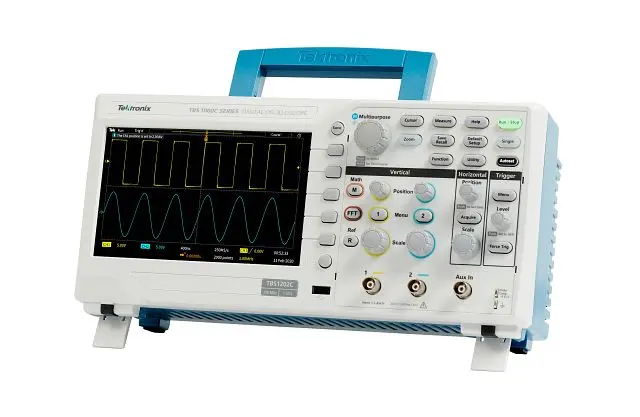

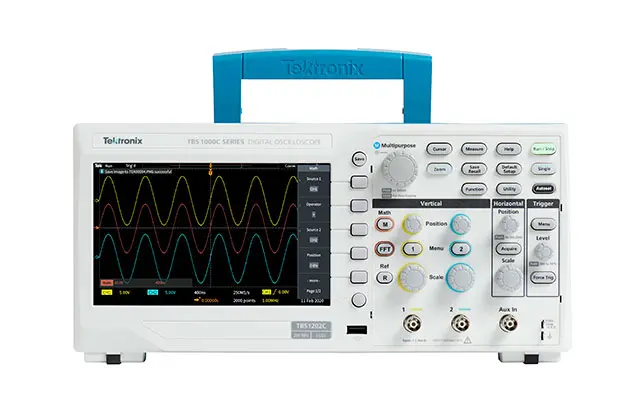

The compact size of the TBS1000C Series Digital Storage Oscilloscope allows for economical performance. It is made to satisfy the demands of the maker community, embedded design engineers, and educational institutions of today. The device has a 5-year guarantee, a 7-inch WVGA color display, bandwidths ranging from 50 MHz to 200 MHz, and a sample rate of up to 1 GS/s. The tool includes a cutting-edge courseware system that combines lab tasks with detailed instructions for students to follow. To make the instrument more approachable for a novice user, the HelpEverywhere system offers helpful hints and tips across the user interface.

Key Performance Specifications

200 MHz, 100 MHz, 70 MHz, and 50 MHz bandwidth models
2-channel models
1 GS/s sample rate on all channels
20k point record length on all channels
Advanced triggers include pulse, runt, and line triggers
Five-year warranty

Key Features

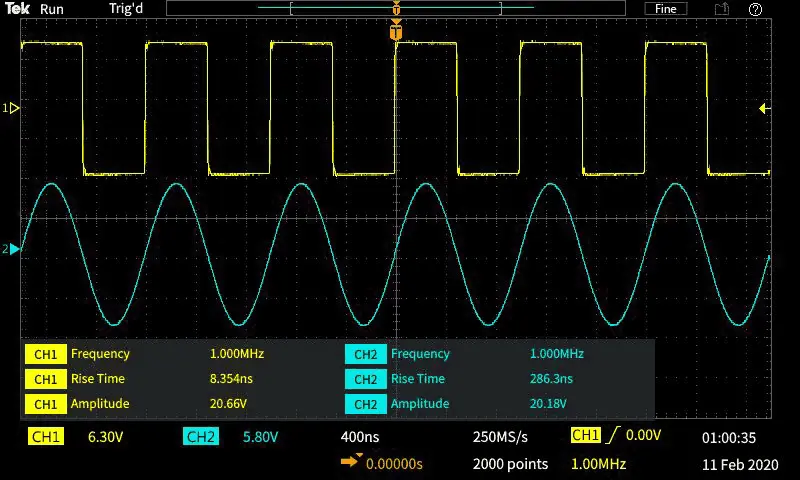

7-inch WVGA color display with 15 horizontal divisions that shows 50% more signal
32 automated measurements
Dual window FFT with simultaneous time and frequency domain views
Trigger frequency counter
Pan and Zoom capability
Multi-language user interface with support for 10 languages in the user interface and front panel overlay
Small footprint and light weight
Fanless design contributes to low noise operation

Parameters	TBS1052C	TBS1052C-EDU	TBS1072C	TBS1102C
Bandwidth	50 MHz	50 MHz	70 MHz	100 MHz
Channels	2	2	2	2
Sample Rate	1 GS/s	1 GS/s	1 GS/s	1 GS/s
Record Length	20 K points	20 K points	20 K points	20 K points

Dimensions

Parameters	mm	in.
Height	154.95	6.1
Width	325.12	12.8
Depth	106.68	4.2

Shipping Dimensions

Parameters	mm	in.
Height	266.7	10.5
Width	476.2	18.75
Depth	228.6	9

Weight

Parameters	kg	lb
Instrument only	1.979	4.36
Instrument with accessories	2.2	4.9

Tektronix TBS1000C Digital Storage Oscilloscope Documentation

Tektronix TBS1000-Service-Manual-077077201-RevD.pdf

Download

Tektronix TBS1000C-User-Manual-EN-077157102.pdf

Download

Tektronix TBS1000C-Programmer-Manual-EN-US-077169102.pdf

Download

Tektronix TBS1000C-Datasheet-3GW616744.pdf

Download

Tektronix TBS1000C_SpecPV_EN-US_077-1583-03-Rev-A_077158303.pdf

Download

Frequently Asked Questions

What is the bandwidth range for the TBS1000C Series?

The TBS1000C Series Digital Storage Oscilloscope offers bandwidths ranging from 50 MHz to 200 MHz depending on the specific model.

What is the maximum sample rate of these oscilloscopes?

The series features a sample rate of up to 1 GS/s on all channels for precise signal capturing.

How long is the warranty period for the TBS1000C Series?

Every TBS1000C Series oscilloscope comes standard with a comprehensive 5-year warranty.

Does the oscilloscope design help reduce lab noise?

Yes, the TBS1000C features a fanless design which contributes to extremely low noise operation during testing.

Are these oscilloscopes suitable for students and educational labs?

Yes, they include a cutting-edge courseware system, step-by-step instructions, and the HelpEverywhere tool designed to assist beginners.
