The Tektronix Embedded Design Reference Solution is an integrated solution addressing most embedded system debugging challenges, and it is the company's flagship offering.

Send Inquiry

Product Description

Overview

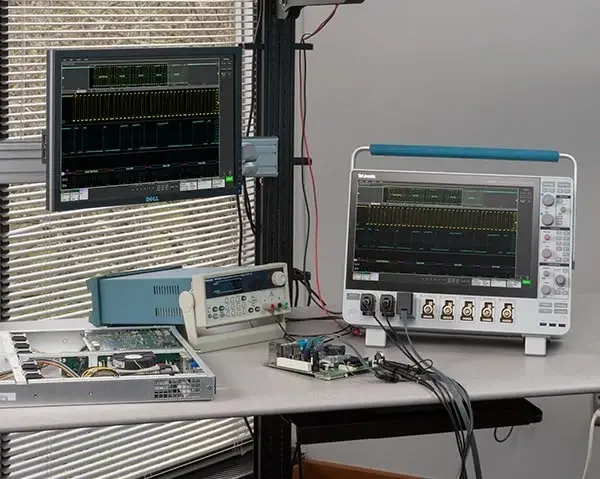

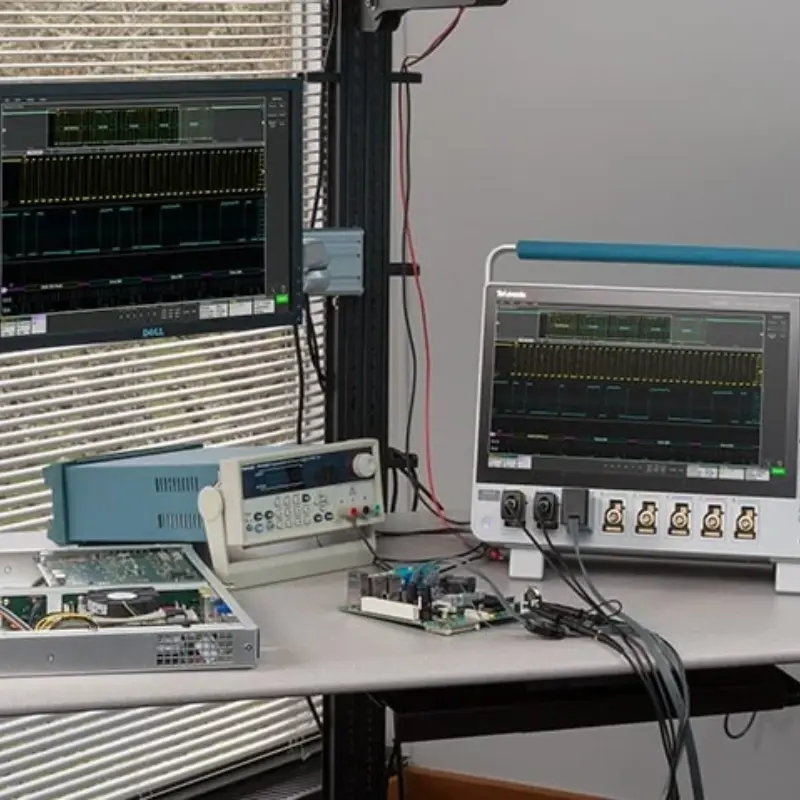

The Embedded Design Reference Solution is an integrated solution addressing most embedded system debugging challenges, and it is the flagship offering. Built around the 5 Series B-type mixed signal oscilloscope (MSO), this solution integrates software, probes, remote collaboration tools, and operational support packages.

It accelerates project progress through serial protocol decoding, analog and digital signal measurement, RF spectrum analysis, power rail and power supply measurement, signal generation, and PC-based waveform analysis, enabling convenient board-level debugging. Serving as a reference solution for finalizing new designs, building new teams, and connecting global teams, it allows users to focus on their projects rather than testing equipment.

Leveraging specialized expertise, the solution integrates cost-effective, high-performance components into a single package. Users need only order a single product code to obtain a complete embedded system design kit, helping them stay focused on product timelines and efficiently advance R&D efforts.

Specifications

Instrument Probe / Option	Quantity	Description

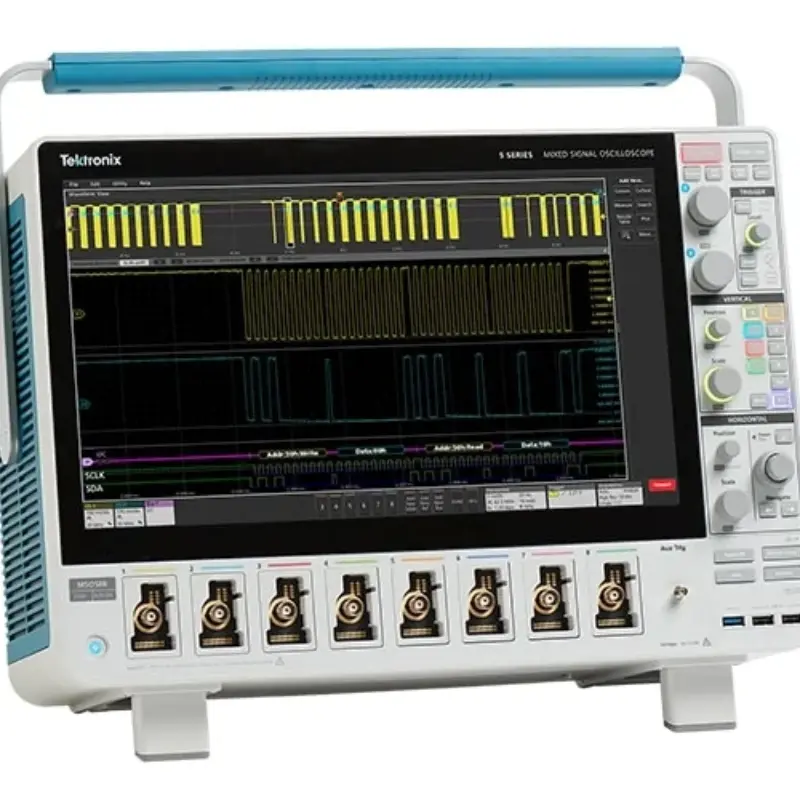

MSO58B (5-BW-1000)	1	8-channel 5 Series B MSO oscilloscope with 1 GHz bandwidth including C3 and T3
5-PRO-SERIAL	1	A comprehensive kit of serial protocol support for embedded systems. Eliminates the need to decode by hand
TPR1000	1	1 GHz, Single-Ended Power-Rail Probe
TLPO58	1	8-channel 500 MGHz logic probe including R3
SCOPE-PRO-SR PC	6	Scope PC Software for off-line analysis, including lMDA Analysis and comprehensive serial bus support
DATA-STORAGE-BUS	6	Data Storage Subscription, Individual Tier. Annual user license
Services	1	Scope includes 3 year total protection plan, T3, with accidental damage coverage, Probes include 3 year extended warranty coverage, R3, and scope + probes are covered with 3 year calibration plans. C3

Models

Models: Embedded Design Reference Solution

Delivery Information

Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.

Manuals + Resources

Embedded Design Reference Solution Brochure.pdf

Brochure Available

Frequently Asked Questions

What is included in the Embedded Design Reference Solution?

The solution is a comprehensive package built around the 5 Series B MSO oscilloscope. It integrates specialized software, logic probes, power-rail probes, and multi-year calibration and protection plans.

How does this solution speed up debugging workflows?

By integrating analog/digital measurements, serial protocol decoding, RF spectrum analysis, and power rail testing in one package, it eliminates manual decoding tasks and streamlines hardware verification.

What software support is included for remote teams?

The kit comes with Scope PC Software licenses for detailed offline waveform analysis and Cloud Data Storage subscriptions to facilitate seamless data sharing among global design teams.

What protection and warranty plans are included?

It features a 3-year total protection plan for the main oscilloscope (including accidental damage cover) and a 3-year extended warranty for the accompanying testing probes.

Can I analyze multiple protocol buses simultaneously?

Yes, with the 8-channel MSO capabilities and the included serial protocol software suite, developers can analyze several analog, digital, and serial bus signals at the same time.
