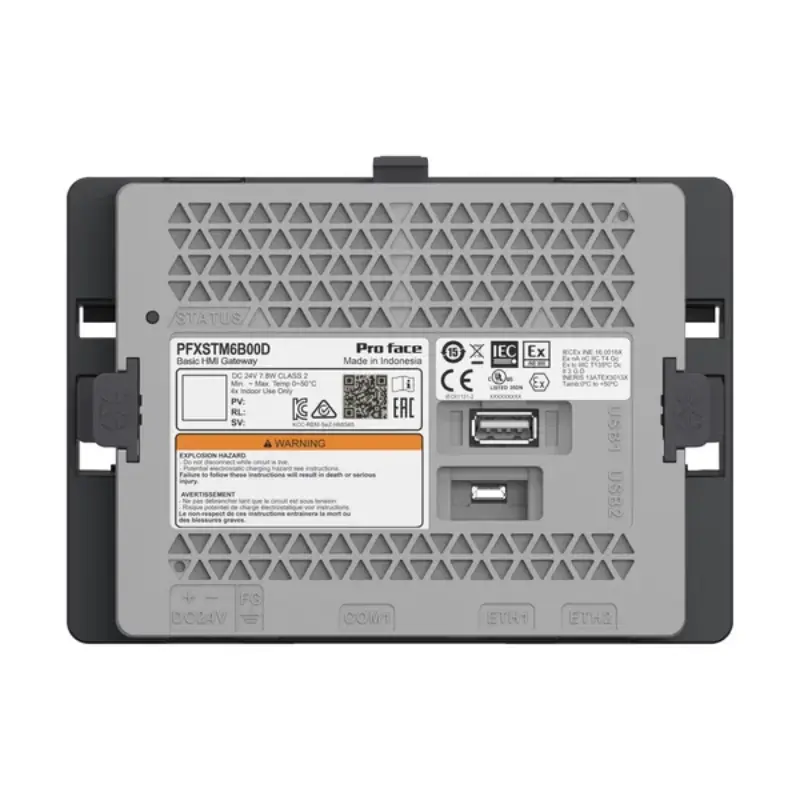

The Pro-face Multi-Converter for the STM6000 Series, the STM6000 Gateway PFXSTM6B00D, is a notable device with the following features:
It is a basic gateway device for the STM6000 series and is part of Pro-face's edge box lineup. It supports the seamless migration of existing projects designed with GP-Pro EX software, enabling users to make the most of their original resources.
| Item | Details |
|---|---|
| Model Number | PFXSTM6B00D |
| Series | STM6000 Series (Multi-Converter Gateway) |
| Function | Protocol conversion gateway for industrial communication, enabling data exchange between different devices/protocols. |
| Power Supply | Rated Input: 24 VDC Input Range: 19.2 – 28.8 VDC |
| Power Consumption | Maximum: 6.8 W (without external device power supply: 3.5 W) |
| Inrush Current | ≤ 30 A |
| Communication Interfaces | - Ethernet: 2 x RJ45 ports - Serial (COM1): RS-232C/422/485 (D-sub 9-pin plug), supports 2,400 – 115,200 bps - USB: 1 x USB 2.0 Type A, 1 x USB 2.0 Micro-B |
| Memory | - Flash EEPROM: 128 MB (application memory) - Local Storage: 467 MB - NVRAM: 500 KB (backup memory) |
| Environmental Ratings | - Operating Temperature: 0 – 60°C (32 – 140°F) - Storage Temperature: -20 – 60°C (-4 – 140°F) - Humidity: 10% – 90% RH (non-condensing, wet bulb ≤ 39°C) - Pollution Degree: 2 |
| Mechanical Specifications | - Dimensions (W x H x D): 150.49 mm x 109.97 mm x 63.3 mm - Weight: 0.456 kg - Vibration Resistance: IEC/EN 61131-2 compliant (5–9 Hz: 3.5 mm amplitude; 9–150 Hz: 9.8 m/s² acceleration, X/Y/Z axes) - Shock Resistance: IEC/EN 61131-2 compliant (147 m/s², 3 times X/Y/Z) |
| Certifications | CE, UL, cUL, RoHS compliant |
Pro-face Multi-Converter for STM6000 Series STM6000 Gateway PFXSTM6B00D
