| Category | Details |
|---|---|
| Display Type | TFT color LCD |
| Display Size | 15 inches |
| Resolution | 1024 × 768 pixels (XGA) |
| Effective Display Area | 304.1mm × 228.1mm |
| Display Colors | 16 million colors |
| Backlight | White LED, service life 50,000 hours or more (when continuously operated at 25°C and before the backlight brightness decreases to 50%), with brightness sensor, and the brightness can be adjusted from 0 to 100 through the launcher |

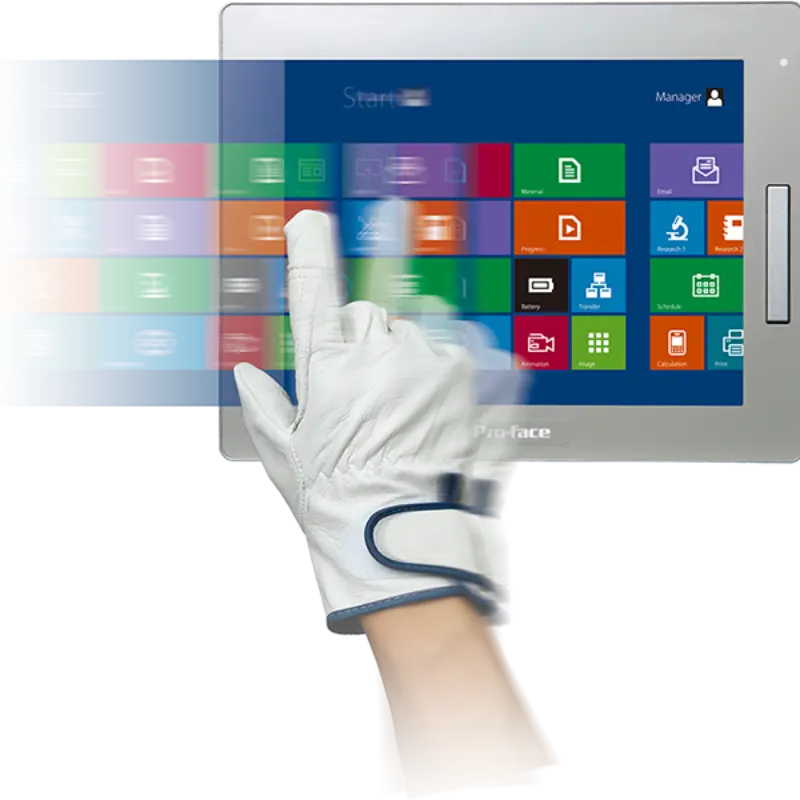

| Touch Screen | Resistive-film (analog, multi-touch) touch panel, touch panel lifetime is 1,000,000 times or more |
| Rated Input Voltage | 12 - 24VDC, input voltage limit is 10.8 - 28.8VDC |
| Power Consumption | Backlight on at 100% (when power is supplied to external devices): 21W or less; backlight on at 100% (when power is not supplied to external devices): 18W or less; backlight adjusted to 20% (when power is not supplied to external devices): 11W or less; backlight off (when power is not supplied to external devices): 8W or less |
| In-rush Current | 30A or less |
| Noise Immunity | Noise voltage of 1,000Vp-p, pulse duration of 1 μs, and rise time of 1ns |
| Voltage Endurance | Can withstand 1,000VAC, 20mA for 1 minute between the power terminal and the FG terminal |
| Insulation Resistance | 10 MΩ or more at 500VDC between the power terminal and the FG terminal |
| Operating Temperature | 0 - 60°C |
| Storage Temperature | -20 - 60°C |
| Operating Humidity | 10 - 90%RH (the maximum wet-bulb temperature is 39°C, without condensation) |
| Storage Humidity | 10 - 90%RH (the maximum wet-bulb temperature is 39°C, without condensation) |
| Dust Concentration | 0.1mg/m³ or less (non-conductive level), suitable for use in a pollution degree 2 environment |
| Other | Free of corrosive gases, applicable air pressure range is 800 - 1,114hPa (altitude of 2,000m or less), complies with IEC/EN 61131-2 for vibration resistance and shock resistance, and the contact discharge method for electrostatic discharge immunity is 6kV |
| Interface | 1 USB (Type A) interface, which complies with USB 2.0, and the power supply voltage is 5VDC ± 5% |
| Installation and Protection | Protection level reaches IP65F, IP67F, and Type 1, and the panel thickness range for installation is 1.6 - 5mm |
| Overall Dimensions | W397 x H296 x D67mm |
| Panel Cut-out Dimensions | W 383.5 x H 282.5mm |
| Weight | 5.2 kg or less |
