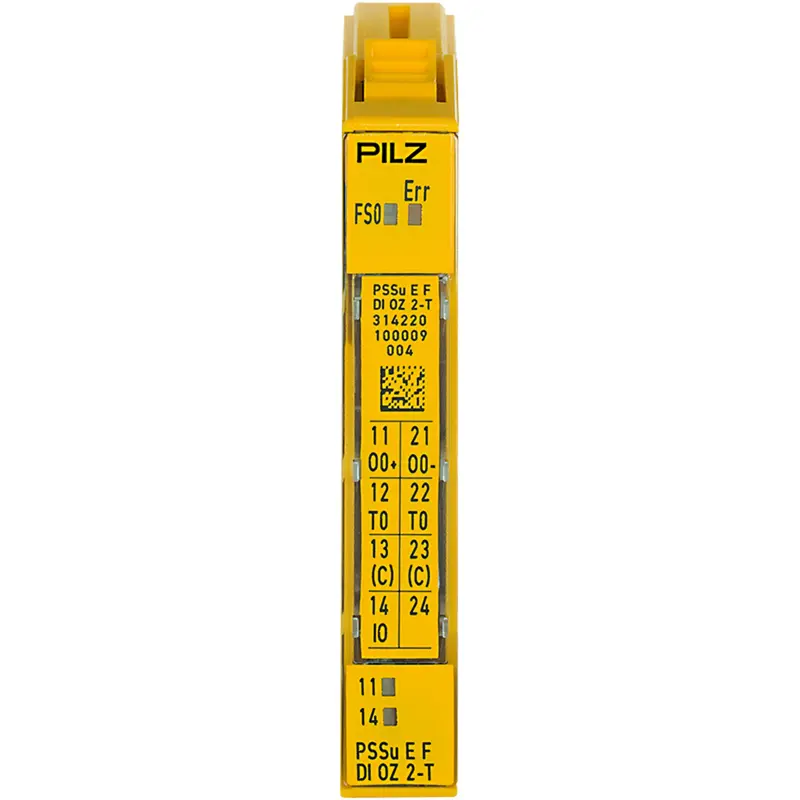

Model: PSSu E F DI OZ 2-T (Order Number: 312220 / Product ID: 314220)
Protection Type: IP20 enclosure rating prevents dust ingress and finger access to hazardous components.
Weight: Total weight 44g, net weight 35g.
Complies with safety standards such as EN ISO 13849-1. It is designed to reliably process safety signals in industrial environments and prevent hazardous situations.
Features 1 digital input and 1 bipolar output. Inputs connect to safety-related input devices like emergency stop buttons or safety door switches. Outputs control safety-related actuators such as safety relays.
Marked with a "T" designation for high-temperature resistance, operating reliably from -30°C to +60°C. Withstands moisture, dew, and meets pollution degree 2 standards.
Suitable for various industrial automation scenarios requiring safety control, such as machine tool control, packaging machinery, and material handling equipment. Ensures operational safety and reliability throughout equipment operation.
| General data | |
| Approval | CE, UKCA, cULus Listed, KOSHA, EAC (Eurasian), TÜV |
| Application range | Failsafe |
| Technical data | |
| Number of digital inputs | 1 |
| DC voltage at input | 24 V DC |
| Potential isolation inputs | Yes |
| Semiconductor outputs | |
| DC voltage at output | 24 V DC |
| Environmental data | |
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -40 to 70°C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 93% r. h. at 40°C |
| Condensation permitted? | Briefly |
| Perm. operating height ASL | 5000 m |
| EMC to standard ... | EN 12015, EN 12016, EN 61000-6-2, EN 61000-6-4, EN 61131-2 (Zone B) |
| Vibration to standard | EN 60068-2-6 |
| Broad band noise to | EN 60068-2-64 |
| Acc. shock to standard 1 | 150 m/s² |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear. & creep | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
| Mechanical data | |
| Housing material lower section | PC |
| Housing material front plate | PC |
| Housing material code | PA |
| Terminal style | Plug-in |
| Height dimension | 76 mm |
| Width dimension | 12.6 mm |
| Depth dimension | 60.2 mm |
| Net weight | 36 g |
| Gross weight | 45 g |
| Name of coding element | 6 |
| Colour of coding element | Yellow |
Product ID: 314220
GTIN: 4046548049176
Description: PSSu electronic module, failsafe, digital inputs and outputs, 1 input, 1 test pulse output 0.25 A, 1 output, 2 A, dual-pole, short-circuit-proof, overload-proof, free from feedback, designed for increased environmental requirements.
Dimensions: 76 * 12.6 * 60.2 mm
Net Weight: 36g
Gross Weight: 45g
Delivery information typically includes packaging parameters, transit weight, and standard distribution processes, which vary depending on standard logistics handling.
