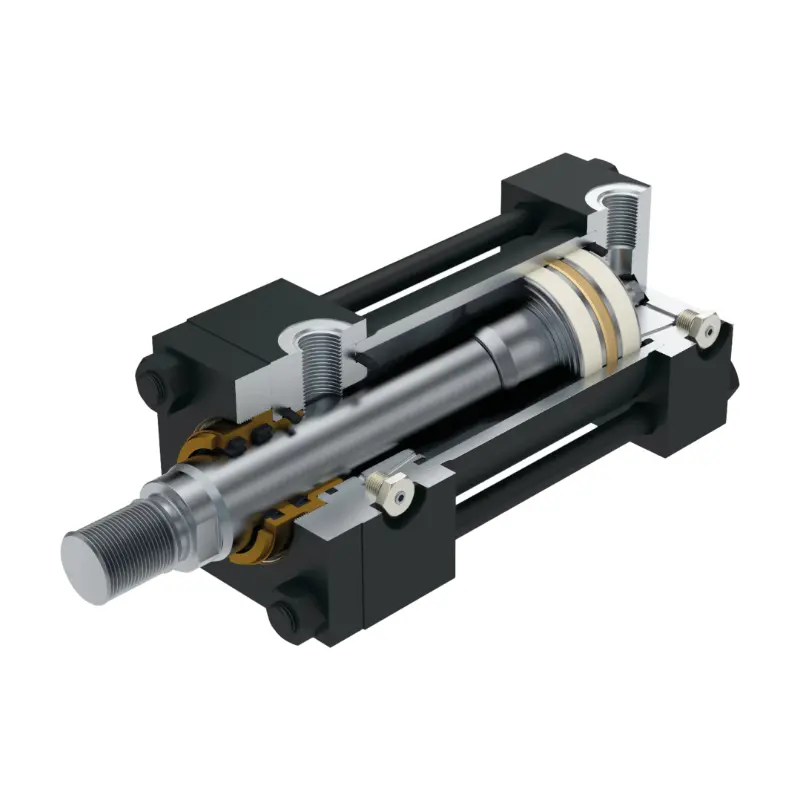

China Parker Industrial Hydraulic Cylinders Series HMI Manufacturer, Products

The HMI series metric tie-rod hydraulic cylinders are a compact series with rated working pressures up to 210 bar, depending on the rod end and application. Like all Parker Hydraulics cylinders, they are designed to provide long-term, efficient operation and reduced maintenance requirements, ensuring high productivity year after year. The Parker HMI series metric hydraulic cylinders meet the requirements of ISO 6020/2, 160 bar compact series.

Send Inquiry

Product Description

Product Overview

The Parker HMI series industrial hydraulic cylinders are high-reliability, multi-size adaptable lever-type hydraulic actuators designed for power transmission needs in general industrial scenarios.

Core Product Positioning and Design Highlights

Utilizing a lever-type structure design, it balances structural stability with installation flexibility, adapting to linear drive requirements in various scenarios such as industrial manufacturing and automated production lines.

It covers a wide range of specifications, with a large selection range for bore diameter, rod diameter, and stroke. Combined with various installation and actuation methods, it can precisely match the power output requirements of different equipment.

Materials and processes are adapted to harsh working conditions. The sealing and piston design supports wide temperature ranges from -20°C to 150°C, withstands 210 bar high pressure, and is highly durable.

Core Advantages and Application Value

Multi-Scenario Adaptability A wide range of sizes, installation methods, and functional options allow for direct replacement or adaptation of hydraulic actuators in various industrial equipment without significant equipment modifications.

Highly Efficient & Stable Transmission The combination of high-pressure design and low-friction piston options provides smooth and precise linear power output, ensuring equipment operating accuracy and efficiency.

Ease of Maintenance Standardized structure and universal connection specifications reduce the difficulty of parts replacement and daily maintenance, minimizing equipment downtime.

Typical Application Scenarios Widely used in general industrial manufacturing, automated production lines, and heavy equipment applications, such as reciprocating drives for machine tools, lifting mechanisms in material handling equipment, and push-pull actuators for industrial machinery.

Technical Specifications

Specification Items	Details
Number of Rod Sizes per Bore Size	up to 3
Product Style	Tie Rod
Maximum Operating Pressure	210 bar
Minimum Bore Diameter	25 mm
Bore Diameter	200 mm Max.
Minimum Rod Diameter	12 mm
Maximum Rod Diameter	140 mm
Maximum Stroke Length	5000 mm
Operating Temperature	-20 to 150 °C
Mounting Type	Extended Tie-rods, Flange, Foot, Pivot, Trunnion
Cylinder Action	Single Acting, Double Acting
Port Type	Metric, BSPP
Piston Type	Standard, Low Friction, Load Master
Rod End Type	up to 7
Rod End Thread Type	Metric
Technology	Hydraulics
Product Type	Cylinder Actuator
Product Series	Series HMI Industrial Hydraulic Cylinders

Series Models & Key Features

Parker Industrial Hydraulic Cylinders Series HMI Features & Benefits:

12 standard mounting styles
Single and double rod designs available
6 standard male and female rod end threads
Up to 3 rod sizes per bore
Strokes available in any practical stroke length
Rod gland can be removed in situ for seal replacement
Hard chrome plated rod for increased seal and cylinder life
Wide range of sealing systems to suit all applications and environments
Suitable in a wide range of fluid specifications and temperature ranges from -20°C to +150°C
Rod locking device for increased safety and functionality
World class cushioning solutions, available at either or both ends
Wide range of mounting and rod end accessories
Wide range of special features, e.g. stroke adjuster, rod bellow, gland drain, proximity switches or integrated linear transducers
Bespoke custom designs on request

Delivery Information

Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.

Manuals & Resources

Parker Industrial Hydraulic Cylinders - Series HMI Datasheet.pdf

Download

Frequently Asked Questions

Q1: What is the maximum operating pressure of the Parker HMI Series cylinders?

A1: The Parker HMI Series industrial hydraulic cylinders can withstand a maximum operating pressure of up to 210 bar.

Q2: What temperature range can these hydraulic cylinders operate in?

A2: The standard sealing and piston design of the Series HMI cylinders supports an operating temperature range from -20°C to +150°C, making them highly adaptable to varied industrial environments.

Q3: How many mounting styles are available for the HMI cylinder series?

A3: The series features 12 standard mounting styles, including Extended Tie-rods, Flange, Foot, Pivot, and Trunnion mounts, ensuring high installation flexibility.

Q4: Is it easy to replace the rod seal on these cylinders?

A4: Yes. The rod gland can be removed in situ (in place), which simplifies the seal replacement process and minimizes equipment downtime during maintenance.

Q5: What is the maximum stroke length available for this series?

A5: The maximum standard stroke length is up to 5000 mm, and strokes are generally available in any practical stroke length based on user requirements.
