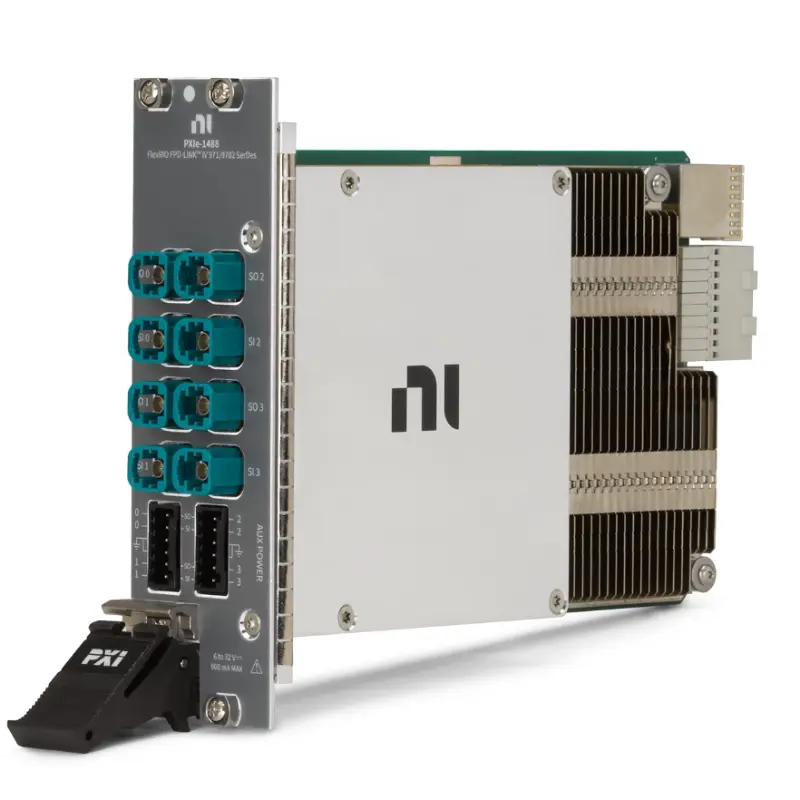

The National Instruments (NI) FlexRIO FPD-Link™ Interface Module PXIe-1488 is a high-performance module designed for vision and imaging applications. Here is an overview:

• High-Speed Data Transfer: Supports a data rate of 7.55 Gbps per port, enabling high-throughput data transfer, which is suitable for applications such as advanced driver assistance systems (ADAS), autonomous drive (AD) camera sensors, and electronic control units (ECUs) testing.
• FPGA Integration: Equipped with a Xilinx Ku11P FPGA that has 21 MB of embedded block RAM and 60 DMA channels, providing powerful processing capabilities and customization options for users.
• Protocol Support: Supports the Camera Serial Interface-2 (CSI-2) protocol, which is widely used in automotive camera systems.
• Additional Functions: The included FlexRIO driver, along with LabVIEW FPGA examples, provides access and control for power-over-coax (PoC), I²C back-channel communication, and general-purpose input/output (GPIO) communication on the FPD-Link™ channels.

• Dimensions: Approximately 21.6 cm × 4.1 cm × 13.0 cm.
• Operating Temperature Range: 0 °C to 55 °C.
• Memory: On-board DRAM includes 4 GB of memory, distributed across 2 banks of 2 GB each, with a physical bus width of 32 bits and an operating clock rate of 1064 MHz. The LabVIEW FPGA DRAM clock rate is 267 MHz, and the LabVIEW FPGA bus width is 256 bits per bank.

• In-Vehicle Data Logging: Can be used to record data from various in-vehicle sensors and cameras.
• Lab-based Playback: Suitable for playing back recorded data in a laboratory environment for analysis.
• Hardware-in-the-Loop (HIL) Applications: Helps in creating realistic HIL test setups for automotive systems.

• National Instruments (NI) FlexRIO FPD-Link™ Interface Module PXIe-1488: PXIe, 8 Input and 8 Output or 4 Input/4 Output PXI FlexRIO FPD-Link™ Interface Module.

• Dimension: 21.6 × 4.1 × 13.0 cm
• Weight: 650g
