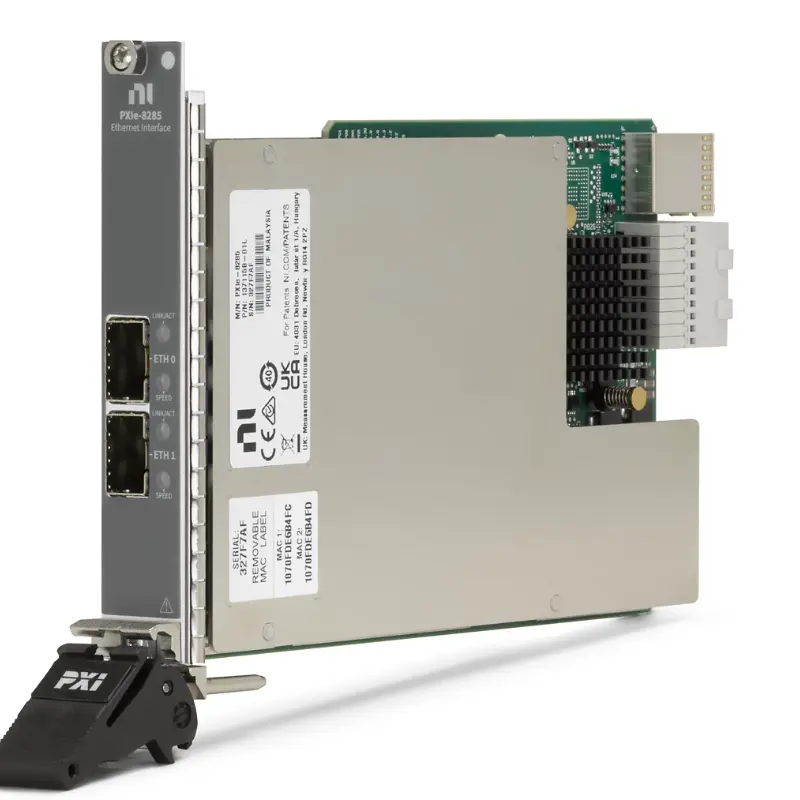

The PXIe-8285 is a high-performance 25-Gigabit Remote Direct Memory Access (RDMA) Ethernet module engineered specifically for PXI Express systems.
Basic Information: Part Number 788510-01. Features two 25-Gigabit Ethernet SFP28 ports, delivering a maximum data transfer rate of up to 50 Gb/s.
| Specification | Details |
|---|---|
| Model Number | PXIe-8285 |
| Part Number | 788510-01 |
| Type | PXI Ethernet Interface Module |
| Ethernet Ports | 2 |
| Bandwidth per Port | 25 Gb/s |
| Maximum Data Transfer Rate | 50 Gb/s |
| Port Type | SFP28 |
| RDMA Support | Yes, using RoCE v2 technology |
| Compatibility | Industry-standard networks and NVIDIA ConnectX Ethernet adapter card |
| Cable Compatibility | Mellanox-compatible active optical SFP28 or passive direct-attach copper SFP28 cables |
| Dimensions | 5.16 in. × 0.83 in. × 8.43 in. (~13.11 cm × 2.11 cm × 21.41 cm) |
| Weight | 13.23 oz (~ 375 g) |
PXIe-8285: 25 Gigabit RDMA Ethernet Module (Part Number: 788510-01)
Delivery information typically includes structured delivery times, reliable shipping methods, and protective packaging, which may vary depending on the seller and the location of purchase.
The PXIe-8285 is a high-performance, single-slot PXI Express Ethernet module featuring two 25-Gigabit SFP28 ports. It supports RDMA over Converged Ethernet (RoCE v2) to allow high-speed, low-latency transfers up to 50 Gb/s.
Proper functionality requires the installation of the PXI Platform Services driver, the Mellanox WinOF-2 driver, and the NI-RDMA driver. Installing the latest versions on the system controller is highly recommended.
Yes. The PXIe-8285 can interface with and manage up to four GigE Vision cameras simultaneously, eliminating the need for Power over Ethernet (PoE) in vision application workflows.

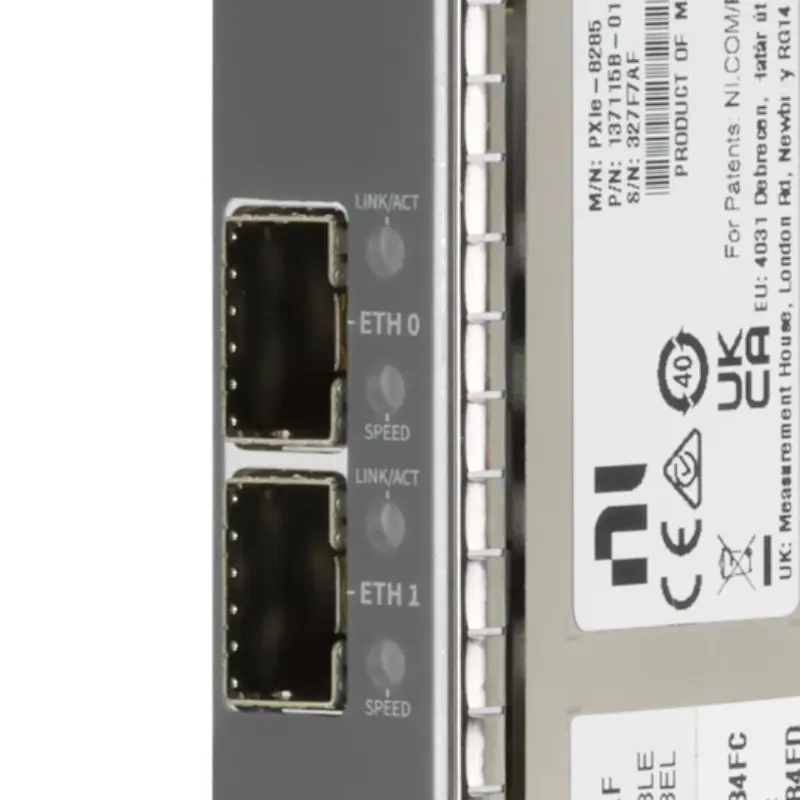

The ETH 0/1 ports connect via active optical SFP28 cables or passive direct-attach copper SFP28 cables, offering flexibility depending on application length and bandwidth demands.
Yes, it is designed for compatibility with industry-standard networks and works effectively alongside the NVIDIA ConnectX Ethernet adapter card.
