| Specification Category | Details |
|---|---|
| General Information |
- Series: MELSEC iQ-F - Model: FX5UJ - Type: Compact Programmable Controller (PLC) - Protection Class: IP10 (front panel) |

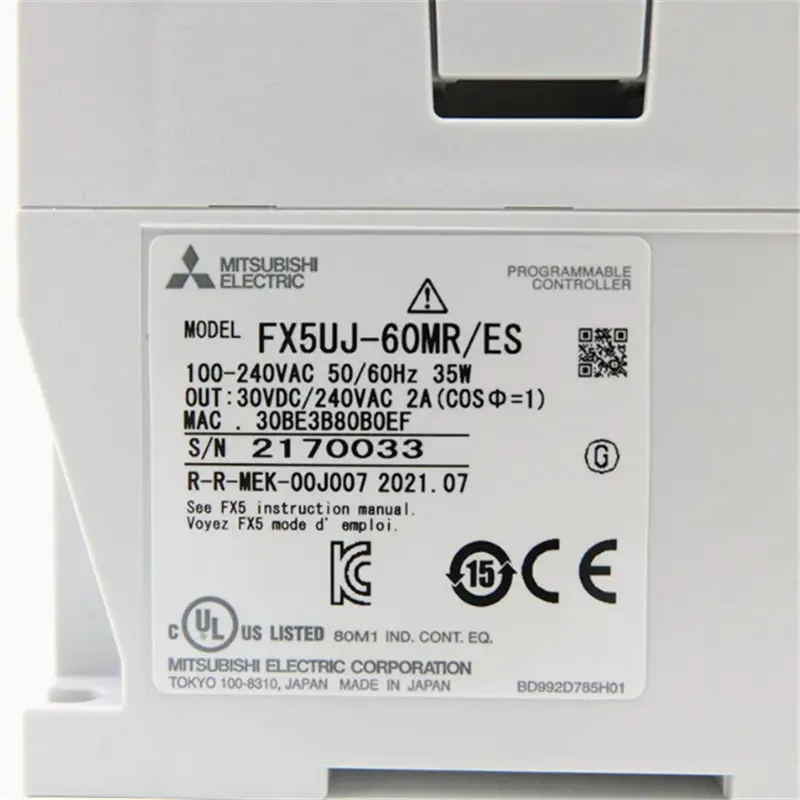

| Power Supply |
- Voltage Range: AC 100–240 V (50/60 Hz) or DC 24 V (model dependent) - Power Consumption: ~25–35 W (varies by model and I/O load) |
| CPU Performance |
- Basic Instruction Speed: 0.54 µs/step (LD, OUT, etc.) - Application Instruction Speed: 3.6 µs/step (e.g., MOV) - Program Memory: 16 kB (standard) - Data Registers: 3,072 words (D registers) |

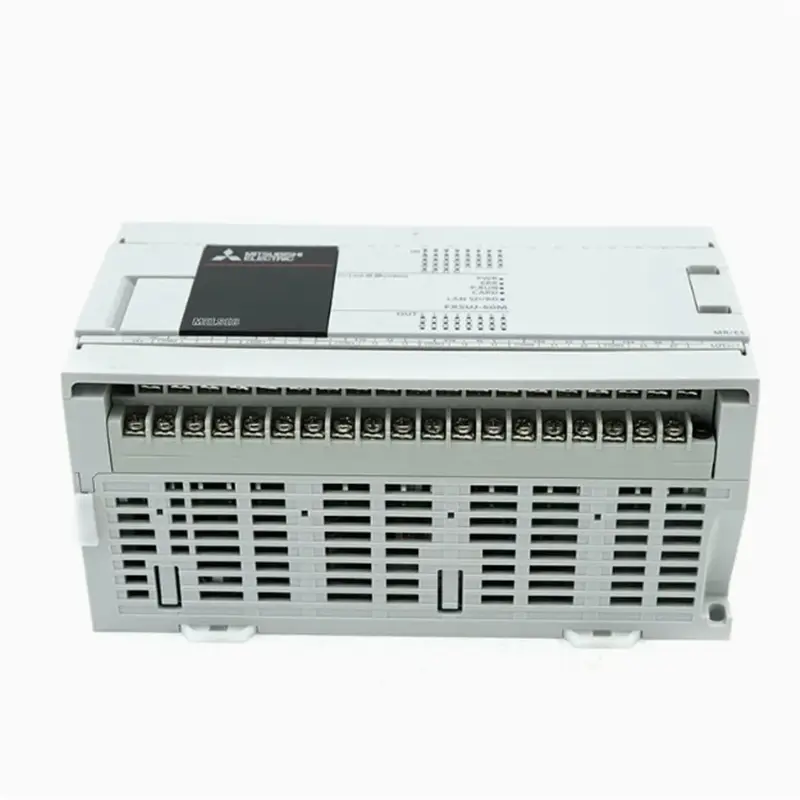

| Built-in I/O (Basic Unit) |
- I/O Point Options: 10, 14, 20, 30 points (fixed digital I/O) - Input Type: DC input (24 V DC, sink/source selectable) - Output Type: Transistor (source/sink) or Relay (MR = Relay, MT = Transistor) - Output Current: Transistor: 0.5 A/ch (max); Relay: 2 A/ch (max) |
| I/O Expandability |
- Max Total I/O Points: 128 points (basic unit + expansion modules) - Supported Expansion: FX5 Series expansion modules (digital, analog, temp control, communication) up to 2 modules total |
| Built-in Interfaces |
- USB: 1 x USB 2.0 Device port (Mini-B) for GX Works3 programming - RS-485: 1 x RS-485 port supporting Modbus RTU, Mitsubishi Inverter Link, etc. - Ethernet: None (optional via expansion module, e.g. FX5-ENET-ADP) |
| Special Built-in Functions |
- Pulse Output: Up to 100 kHz, 1–2 axes (transistor output models) - High-Speed Counter: Up to 4 channels, 100 kHz (DC input models) - PID Control: Basic PID (via application instructions) - Link Control: Supports connection with Mitsubishi HMIs (e.g., GT2000 Series) |
| Memory & Storage |
- Program Retention: Non-volatile memory (no backup battery required) - SD Card Slot: Optional (via expansion module) |
| Environmental Ratings |
- Operating Temperature: 0–55 °C - Storage Temperature: -20–70 °C - Relative Humidity: 10–90% RH (non-condensing) - Vibration Resistance: 10–57 Hz: 0.5 mm double amplitude; 57–150 Hz: 9.8 m/s² - Shock Resistance: 196 m/s² (10 ms, half-sine wave) |
| Physical Dimensions (W × H × D) |
- 10-point model: ~70 × 90 × 83 mm - 14-point model: ~95 × 90 × 83 mm - 20-point model: ~110 × 90 × 83 mm - 30-point model: ~140 × 90 × 83 mm |
| Weight |
- 10-point model: ~0.3 kg - 14-point model: ~0.4 kg - 20-point model: ~0.5 kg - 30-point model: ~0.6 kg |
| Programming Software |
- Recommended: GX Works3 (Version 1.080 or later) - Supported Languages: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC) |
Battery Parameters: The clock data can be maintained with a 3V lithium battery, or run dynamically without a battery.
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
A: The FX5UJ CPU module has options with 24, 40, or 60 points, and the total control points can scale up to 256 points including both physical I/O and remote I/O points.
A: Yes. Transistor output models support positioning control for up to 3 axes, with a maximum output frequency pulse train of 200kpps.
A: Mitsubishi recommends using GX Works3 (version 1.080 or later) which supports structured programming using Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), and Sequential Function Chart (SFC) formats.
A: No, the program is retained in non-volatile memory and does not require a backup battery. A 3V lithium battery is optional for retaining clock data.
A: It is ideal for small to medium-scale automation equipment and production environments, such as packaging systems, textile machinery, and conveying systems.
