| Specification Item | Details |
|---|---|
| Manufacturer Part Number | 1008 - 022 |
| Product Type | Insulation Tester High - Voltage Test Lead Set |
| Quantity of Leads | 3 pieces (red, blue, black color - coded) |
| Lead Length | 3 meters (10 feet) |
| Connector Type | Spring - loaded crocodile clips; 2 - inch (50mm) high - voltage plugs |
| Crocodile Clip Jaw Opening | Up to 18mm |
| Insulation Material | Silicone insulation (more flexible than PVC, resistant to melting and brittleness in extreme temperatures) |
| Inner Insulation Layer Feature | White color for easy detection of wear and tear |
| Insulation Voltage Rating | 12kV DC |
| Safety Category Rating | CAT IV 600V |
| Compatible Testers | Megger 5kV, 10kV and 15kV insulation resistance testers (excluding BM11, BM15 and MJ15); specially matched with S1 series, MIT 5xx series and MIT 10xx series |
| Replacement Parts | Replaces old Megger part numbers 8101 - 181 and 1002 - 531 |
| Application Scenarios | Insulation resistance testing of de - energized electrical systems in construction equipment, automotive engineering, telecommunications, HVAC systems, control panels, etc. |
| Key Compliance | ROHS compliant |
| EAN Code | 5036175233535 |

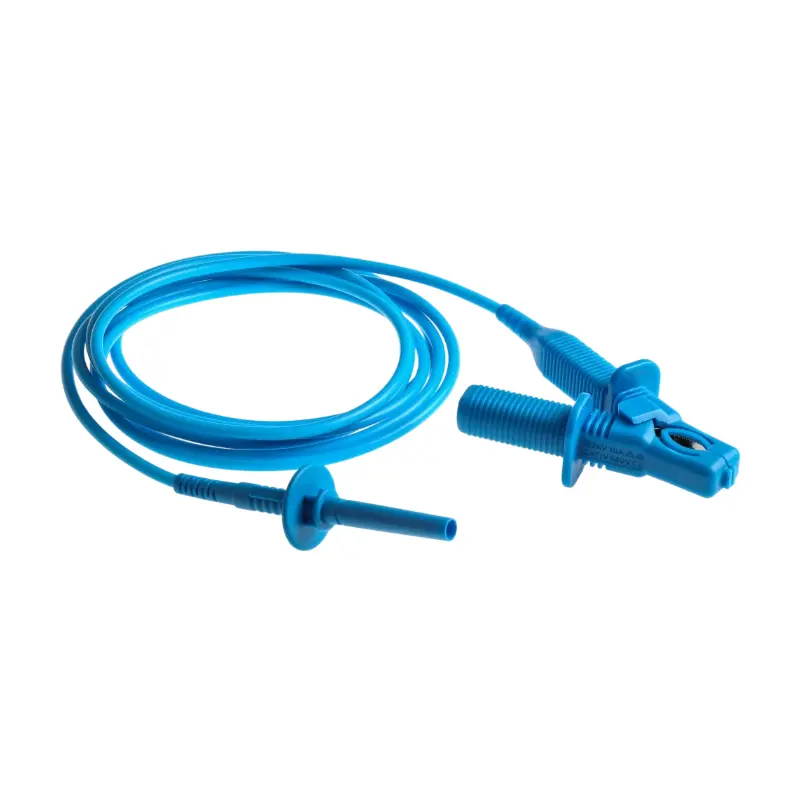

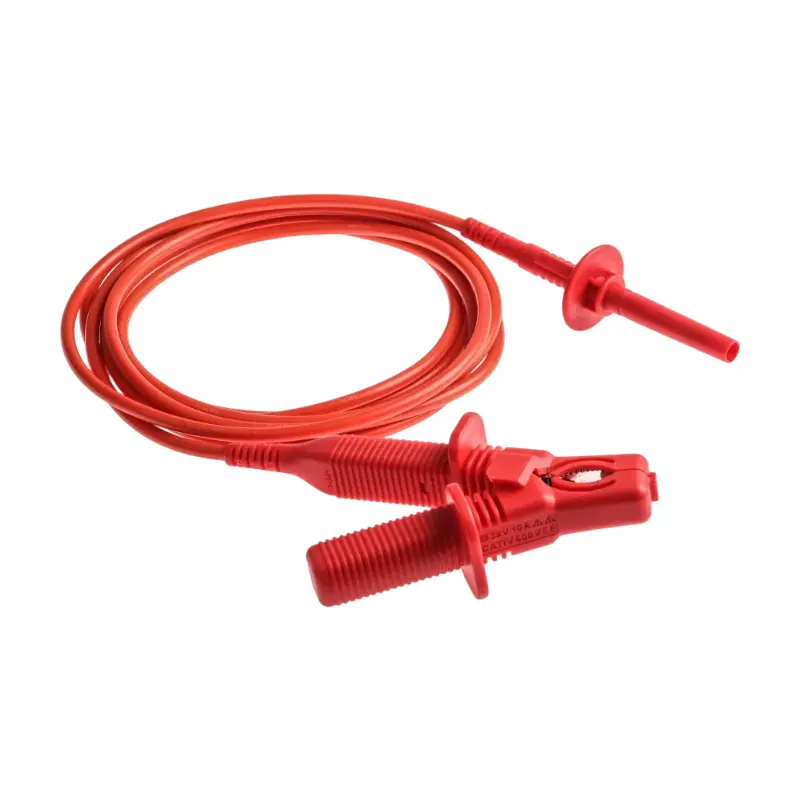

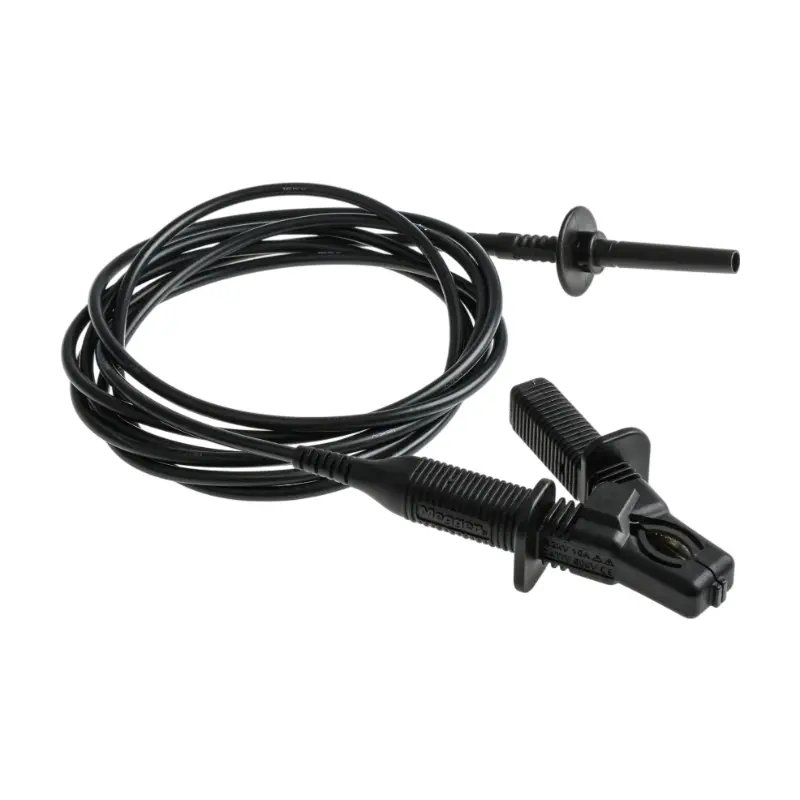

| Models | Megger 1008-022 Insulation Tester HV Test Lead Set |
|---|---|
| Features |
• Cable insulation rating of 12kV DC to protect operator from electrical hazards • Lead length of 3m for convenient long-range measurement • Leads are colour-coded for ease of identification • Inner insulation layer has a white colour that makes it easy to spot wear and tear |
This set is fully compatible with Megger's 5kV, 10kV, and 15kV insulation resistance testers, specifically matched with the S1 series, MIT 5xx series, and MIT 10xx series (excluding BM11, BM15, and MJ15 models).
The Megger 1008-022 leads have an insulation rating of 12kV DC and are CAT IV 600V safety category rated, ensuring high levels of protection for operators.
Silicone insulation provides superior protection against electric shocks and high temperatures. Unlike standard PVC, it does not melt in high heat or become brittle in cold conditions, and it retains excellent flexibility for field testing.
The white inner insulation layer acts as a visual wear indicator, allowing operators to quickly spot any surface damage, wear, or tear, preventing potential safety hazards.
Each test lead is 3 meters (10 feet) long and comes with a spring-loaded crocodile clip that features a maximum jaw opening diameter of 18mm, alongside 2-inch (50mm) high-voltage plugs.
This high-voltage test lead set can be used to directly replace the older Megger part numbers 8101-181 and 1002-531.
