China Megger DLRO600 600 A micro-ohmmeter Suppliers, Exporters

The Megger DLRO600 is a 600 A micro-ohmmeter capable of measuring resistances between 0.1 Î¼Î© and 1 Î© at high currents. This versatile instrument can source DC test currents from 10 A to 600 A, depending on the load resistance and supply voltage, and uses a four-terminal measurement technique to remove the effects of test lead resistance from the measurement.

Send Inquiry

Product Description

Overview

The Megger DLRO600 is a 600A micro-ohmmeter. Below is an overview of its capabilities and built-in features:

Measurement Range

Resistance measurement range is 0.1μΩ - 999.9mΩ, with a test current range of 10A - 600A DC.

Measurement Accuracy

Voltage accuracy is ±0.5% ± 0.1mV, current accuracy is ±0.5% ± 0.1A, and resistance accuracy is up to 1% from 100μΩ to 100mΩ.

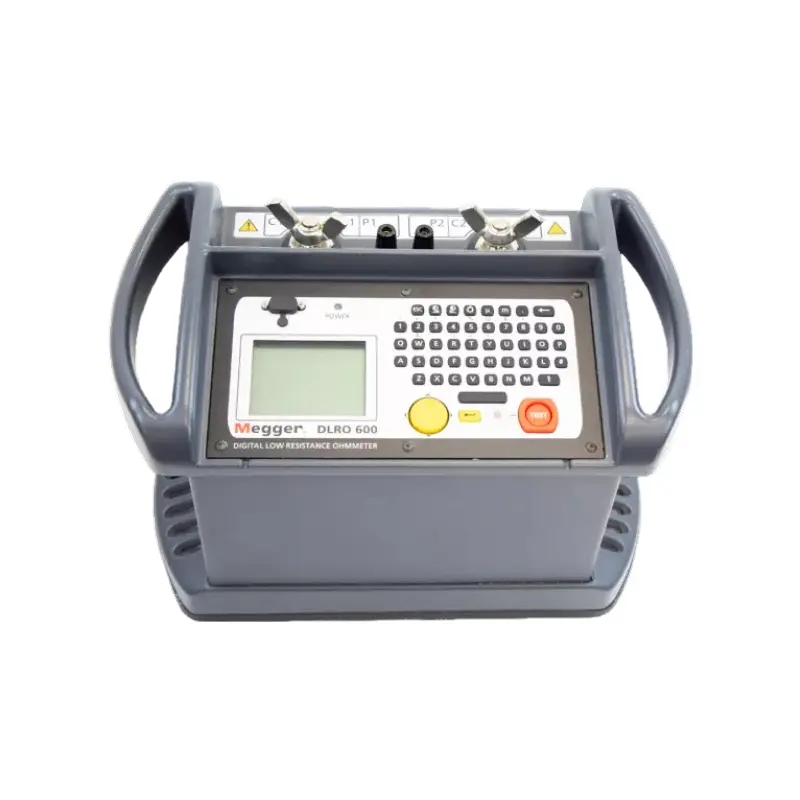

High-Resolution Display

Equipped with a large, high-resolution backlit LCD screen that displays all test parameters and measurement results clearly.

Data Storage & Transfer

Internal memory stores up to 300 test records. Featuring an RS232 port for download to PC or real-time printer output.

Three Operating Modes

Includes Normal, Automatic (7-second test window), and Continuous (updates display every 2 seconds) test modes.

Safety Standard Compliance

Complies with IEC61010-1 (1995) Safety level Category II, 300V grounding, and EMC compliance to EN61326 Annex A.

Primary Applications:

Circuit breaker contacts testing
Switch contacts and busbar connectors resistance checking
SF6 switches and fuses verification
High current contact resistance measurements

Specifications

Specification	Details
Data storage and communication	RS-232 port
Max output current (DC)	600 A
Power source	Mains
Safety features	IEC61010-(1995)
Data Transfer Interface	RS232 port (supports real-time output to printer or result download)
Dimensions (WxHxD)	410 mm x 240 mm x 270 mm
Weight	14.5 kg (excluding test leads)
Operating Temperature Range	0°C - 50°C
Storage Temperature Range	-20°C - 60°C
Relative Humidity (Operating)	≤90% (non-condensing)
Standard Accessories	5 m test leads (set), Data download software
Power supply	Mains-powered (typically 100-240 V AC, 50/60 Hz)

Model Features

Models	Megger DLRO600 600 A micro-ohmmeter
Key Physical Parameters	Small and weighs less than 15 kg (33 lbs)
Test Current Options	Wide range from 10 A to 600 A DC
Measurement Resolution	0.1 μΩ best resolution class
Internal Storage capabilities	On-board memory for up to 300 test results and annotations
Output Interfaces	RS232 port to download stored results or output to printer in real-time
Included Accessories	Supplied complete with 5 m (16.4 ft) test leads and download software

Delivery & Physical Information

Dimensions: 410 mm × 240 mm × 270 mm
Total Weight: 14.5 kg
Battery Parameters: Nickel-metal hydride (NiMH) battery built-in
Delivery Details: Standard shipments typically include specialized packaging with delivery times depending on destination and carrier services.

Manuals & Resources

Megger DLRO600 600 A micro-ohmmeter Datasheet Preview

Megger DLRO600 600 A micro-ohmmeter datasheet.pdf

Document Download Available

Frequently Asked Questions

1. What is the test current range of the Megger DLRO600?

The Megger DLRO600 offers a wide range of test currents from 10 A up to 600 A DC.

2. What is the resistance measurement range and maximum resolution of the device?

The resistance measurement range is from 0.1 μΩ to 999.9 mΩ, offering a best resolution of 0.1 μΩ.

3. How many measurement results can be stored in the internal memory?

The built-in memory can store up to 300 test results along with user-defined annotations.

4. What interface does the DLRO600 use for data transfer?

It includes an RS232 port which allows users to download stored results or output data in real-time directly to a printer.

5. What safety standards does the Megger DLRO600 meet?

It fully complies with IEC61010-1 (1995) standards, Safety Level Category II at 300V grounding, as well as EN61326 Annex A for heavy industrial EMC compliance.

6. What are the weight and dimensions of the Megger DLRO600?

The unit measures 410 mm x 240 mm x 270 mm and has a total weight of 14.5 kg, excluding test leads.
