China Megger DET2/3 High resolution earth tester Supplier, Suppliers

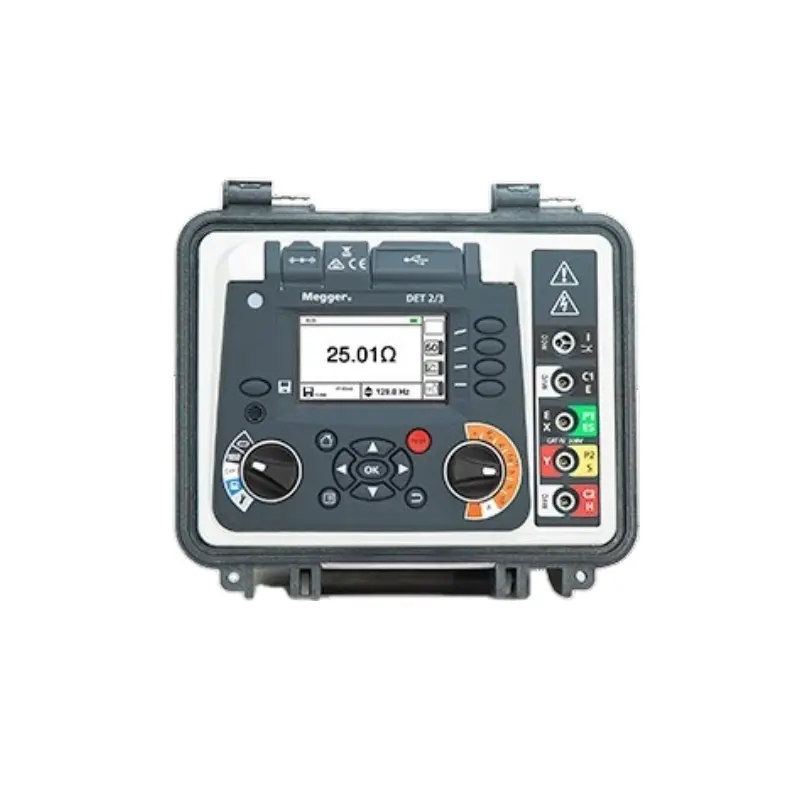

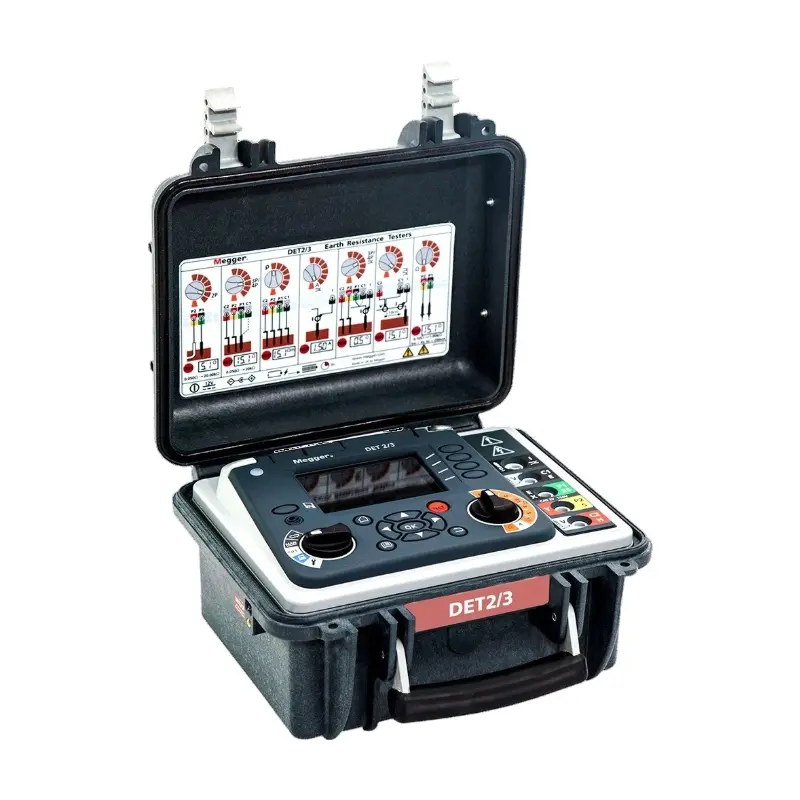

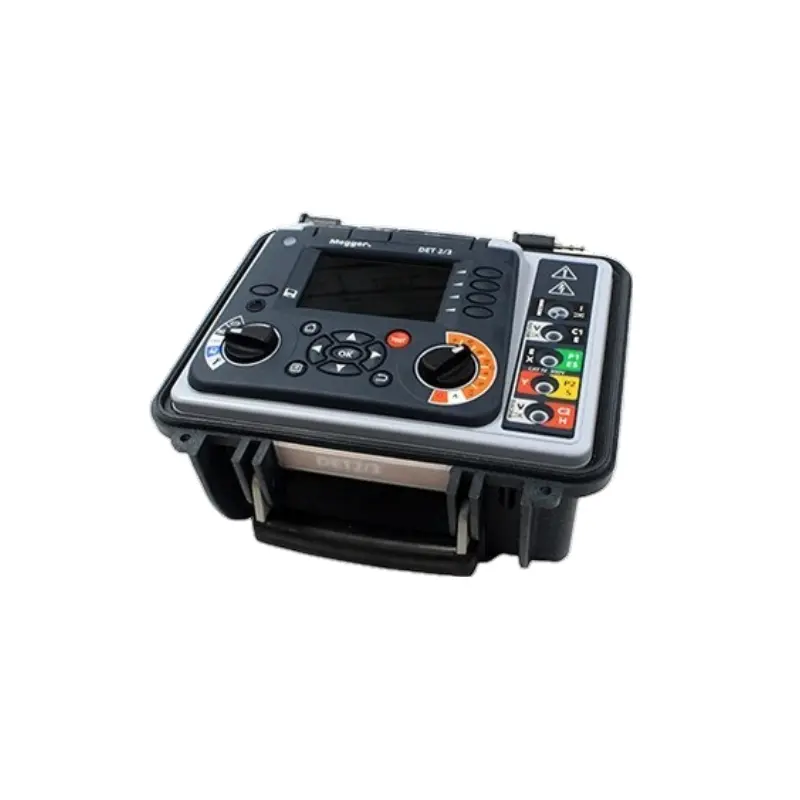

The DET2/3 High Resolution Earth Resistance Tester is a rugged, compact, automatic earth tester designed to measure earth electrode resistance and soil resistivity. It is suitable for large or more complex grounding systems, including telecommunications grounding systems and complex test environments, and can perform tests in accordance with BS 7430 (earthing), BS-EN-62305 (lightning protection), BS-EN-50122-1 (railway applications), and IEEE Standard 81.

Send Inquiry

Product Description

Overview Specifications Models Delivery Information Manuals + Resources

The Megger Ground Resistance Tester DET2/3 is a high-performance instrument designed for measuring earth electrode resistance and soil resistivity. Here is an overview of its capabilities:

Key Features

High-resolution Measurement

Features a single fully-automatic range from 0.01Ω to 20kΩ, with an accuracy of ±0.5% and a maximum resolution of 1mΩ, ideal for large-scale ground systems.

Diverse Test Modes

Supports 2-pole, 3-pole, and 4-pole resistance tests, as well as 3-pole and 4-pole ART resistance measurements (range: 0.01Ω to 10kΩ), non-electrode (stakeless) resistance measurements (range: 0.01Ω to 10kΩ), leakage current measurements (range: 0.00A to 2.00A), and various continuity measurements and bonding tests.

Automatic Frequency Selection

Scans for frequencies with the lowest noise level and conducts tests at that frequency. The selected test current frequency, test current level, and enhanced filtering options are stored in memory.

Powerful Diagnostic Function

Provides a real-time trace of measurements, graphically showing the amount of noise from the system under test—a highly useful diagnostic tool for professional ground test engineers.

Large-screen Display

Equipped with a 4.3-inch color graphic display that clearly shows readings and displays noise levels graphically.

Convenient Data Storage & Transfer

Features a large-capacity internal memory that stores up to 5,000 records and 900,000 data points. Data can be downloaded to a PC running PowerDB software via USB.

Excellent Protection Performance

Adopts a double-shell design, featuring a tough outer shell to prevent collisions and an inner fire-retardant shell. Protection level is IP65, adapting to harsh environments.

Technical Specifications

Specification	Details
Resistance Measurement
2, 3, and 4-pole Resistance	Range: 0.001Ω - 20.00kΩ (auto-range) Accuracy: At 23 °C, ±0.5% of reading ±2 digits 3-pole Operational Uncertainty: ±10 mΩ 4-pole Operational Uncertainty: ±20 mΩ
3 and 4-pole ART (Selective) Resistance	Range: 0.01Ω - 10.00kΩ (auto-range) Accuracy: At 23 °C ±2 °C, ±5% accuracy (±3 digits)
Stakeless Resistance	Range: 0.01Ω - 200Ω Accuracy: ±7% (±3 digits)
Test Parameters
Test Frequency (2P, 3P & 4P)	10 Hz - 200 Hz (steps of 0.5 Hz)
Test Frequency (Dual Clamp, 3P ART & 4P ART)	70 Hz - 200 Hz (steps of 0.5 Hz)
Test Current	50 mA max.
Maximum Output Voltage	Below 50 V rms
Maximum Interference	50 V peak-to-peak
Continuity
Range	0.01Ω - 1 kΩ (3 digits)
Accuracy	±3% (±2 digits)
Test Current	Up to 205 mA
Lead Null	<10 Ω
Leakage Current
Range	0.00 A - 2.00 A
Accuracy	±5% (±3 digits)
Instrument Specifications
Display	4.3-inch QWVGA, daylight-viewable backlit colour
Operating Temperature	-10 °C - 40 °C
Storage Temperature	-20 °C - 60 °C
IP Rating	IP54 (operational, lid open); IP65 (storage, lid closed)
Measurement Rating	CAT IV 300 V
Power Supply	Internal lithium-ion battery or external 12 - 18 V, 65 W DC power supply
Battery Life	Up to 10 hours of use
Battery Charge Time	Fast charge to 50% in 3 hours, 100% in 6 hours
Dimensions	315 mm x 285 mm x 181 mm
Weight	4.5 kg
Data Storage	500 records on-board storage, 900,000 data points
Data Download	Via USB 2.0 connection to PC

Megger DET2/3 High Resolution Earth Tester Features

High resolution of 1 mΩ, ideal for large earth systems

Versatile tests modes

High accuracy for earth/ground electrode grid and soil resistivity tests

Rechargeable battery power that can last all day with a fast re-charge (up to 10 hours)

Robust instrument with IP65 protection

Automatic test frequency selection, with filters and high current features

Diagnostic trace display

Data storage capabilities

Large colour display that shows numeric and graphical results

Optional earth testing kit (ETK) available

Delivery & Packaging details

Specifications

Dimension: 315 mm x 285 mm x 181 mm
Weight: 4.5kg
Battery parameters: Equipped with lithium-ion battery

Shipping Note

Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.

Downloads & Resources

Megger Ground Resistance Tester DET2/3 Datasheet Document

Megger Ground Resistance Tester DET2-3 datasheet.pdf

Download Available

Frequently Asked Questions

What is the measuring range and accuracy of the DET2/3 ground tester?

The Megger DET2/3 features a single, fully-automatic range from 0.01Ω to 20kΩ. It offers a high resolution of 1mΩ and a measurement accuracy of ±0.5% of reading ±2 digits, making it highly effective for large-scale earth systems.

Which test modes does the Megger DET2/3 support?

It supports 2, 3, and 4-pole resistance tests, 3 and 4-pole ART (Attached Rod Technique) measurements, stakeless (non-electrode) resistance tests, leakage current measurements from 0.00A to 2.00A, and various continuity/bonding tests.

How does the automatic frequency selection benefit ground testing?

The automatic frequency selection allows the instrument to scan for test current frequencies (between 10Hz and 200Hz) with the lowest environmental noise level. It then conducts the test at that optimal frequency to ensure highly reliable results.

What is the battery life and charging capacity of this instrument?

Equipped with an internal lithium-ion battery, it provides up to 10 hours of active use. The battery features a fast charging capability, reaching 50% charge in 3 hours and 100% capacity in 6 hours.

Is the Megger DET2/3 designed for harsh outdoor testing conditions?

Yes, it has a robust double-shell structure with a shock-resistant outer shell and a fire-retardant inner layer. It features an IP65 rating when the lid is closed for storage and an IP54 rating when operational with the lid open.

How much test data can the DET2/3 store internally?

The device is equipped with large-capacity internal storage capable of holding 500 records and up to 900,000 individual data points. Users can quickly download these records to a PC using a USB 2.0 connection.
