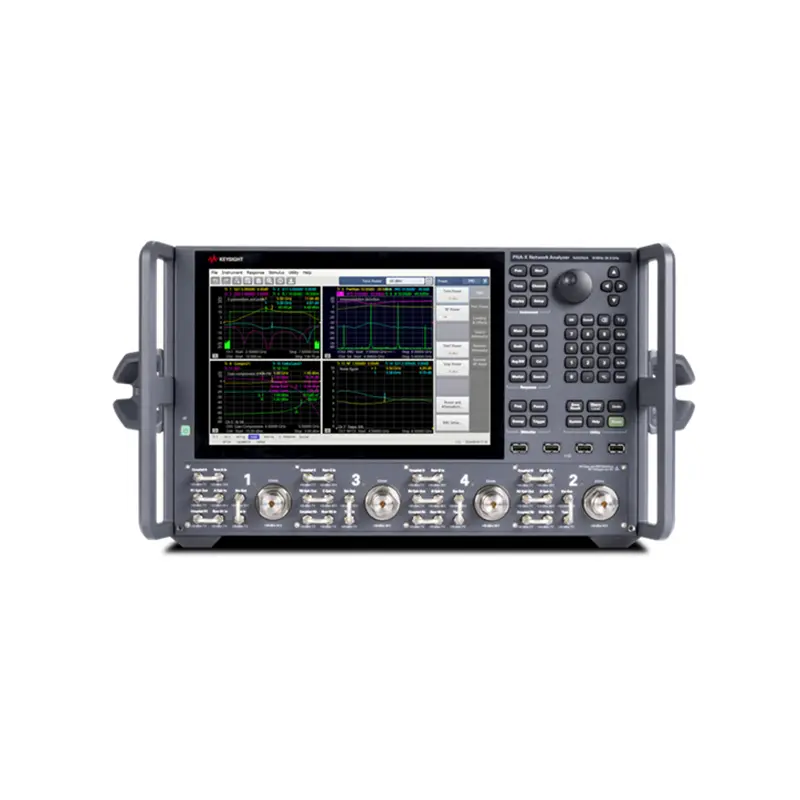

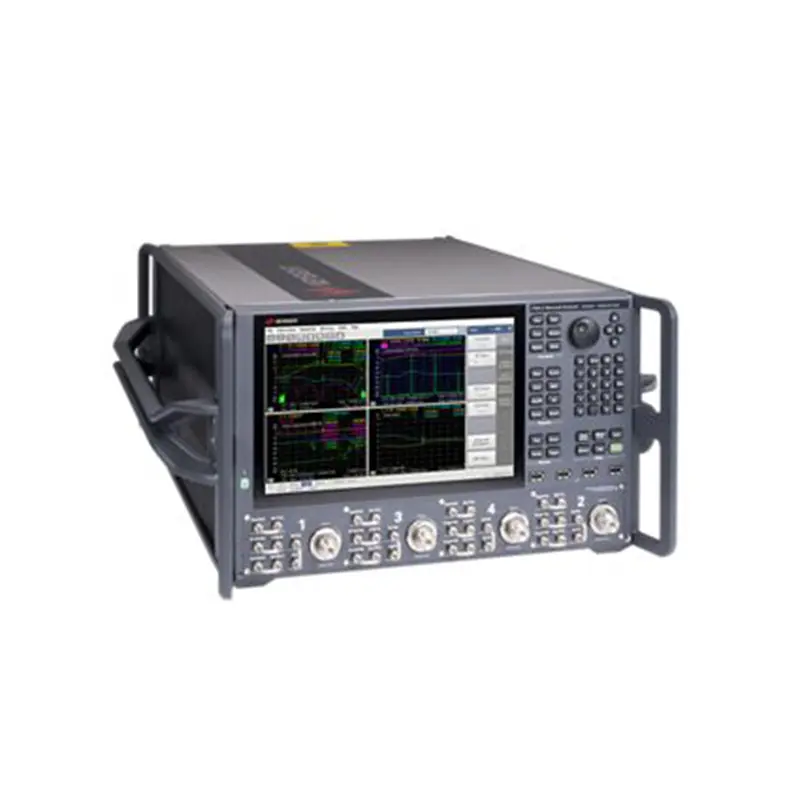

China Keysight Pro Vector Network Analyzer NA5202A PNA-X Manufacturers, Supplier
China Keysight Pro Vector Network Analyzer NA5202A PNA-X Manufacturers, Supplier
China Keysight Pro Vector Network Analyzer NA5202A PNA-X Manufacturers, Supplier
1 / 3
China Keysight Pro Vector Network Analyzer NA5202A PNA-X Manufacturers, Supplier
China Keysight Pro Vector Network Analyzer NA5202A PNA-X Manufacturers, Supplier
China Keysight Pro Vector Network Analyzer NA5202A PNA-X Manufacturers, Supplier

China Keysight Pro Vector Network Analyzer NA5202A PNA-X Manufacturers, Supplier

2 and 4 ports, 10 MHz to 26.5 GHz, and up to 4 sources

Send Inquiry

Product Description

Overview
With the PNA-X pro network analyzer, aim for unparalleled skill. With a streamlined setup and an easy-to-use interface, this multipurpose microwave test engine provides accurate linear and nonlinear measurements with sophisticated error correction.
Use the source-per-port PNA-X pro to make testing frequency-translating components easier. In a single test setup, this highly adjustable instrument contains two low-noise receivers, two combiners, and up to four ultra-low phase noise and harmonic signal sources. Direct receiver access and switchable front-panel loops on the source line minimize the amount of cable needed for intricate high-power testing, as well as the resulting signal power losses. Furthermore, the test setup no longer requires external signal generators or switches thanks to its integrated hardware. With the PNA-X pro, you can streamline your design verification setup while reducing test cycle time and error risk.
✓
Utilize four distinct, integrated signal sources with ultra-low phase noise direct digital synthesis (RF) to streamline your measuring setup for frequency-translating and differential active devices.
✓
Use two integrated low-noise receivers and signal combiners to flip the direction of your device under test during noise figure and intermodulation distortion (IMD) measurements, doing away with the requirement for external switches.
✓
Utilize the preselection filters that are integrated into the low-noise receivers to increase the dynamic range of the measurements.
✓
Utilize the highly adjustable test set architecture to reduce the amount of wiring needed for sophisticated device testing, such as direct receiver access for high-power measurements and front-panel loop and switch access on the source path.
Specifications
NA5202A At Frequency-band crossing
Frequency band Narrow IF filter (dB) Wide IF filter (dB)
10 MHz to 297 MHz ±0.70 ±0.25
297 MHz to 26.5 GHz ±0.20 ±0.20
NA5202A Without Frequency-band crossing
Frequency band Narrow IF filter (dB) Wide IF filter (dB)
10 MHz to 297 MHz ±0.20 ±0.20
297 MHz to 9 GHz ±0.13 ±0.15
9 GHz to 26.5 GHz ±0.13 ±0.15
Models
Description Specification Typical
Frequency range NA5202A: 10 MHz to 26.5 GHz N/A
NA5204A: 10 MHz to 43.5 GHz
NA5205A: 10 MHz to 50 GHz
Frequency resolution 1 Hz N/A
Frequency accuracy ±0.15 ppm N/A
Initial Frequency Accuracy¹ ±0.1 ppm ±0.02 ppm
Frequency stability N/A ±0.02 ppm, -20° to 70°C²
±0.05 ppm (first year)³
Delivery Information
Height & Width & Depth Metric (mm) Imperial (inches)
Height - Without bottom feet: EIA RU¹ = 6 267 10.5
Height - With bottom feet 282 11.1
Width - Without handles or rack - mount flanges 426 16.8
Width - With handles, without rack - mount flanges 573 22.6
Width - With handles and rack - mount flanges TBD TBD
Depth - Without front and rear panel hardware 591 23.3
Depth - With front and rear panel hardware, handles 705 27.75
Weight (nominal) Net Shipping
NA5202A 2 - port models 99.2 lbs, 45.0 kg 129.2 lbs, 58.6 kg
NA5202A 4 - port models 118.4 lbs, 53.7 kg 148.4 lbs, 67.3 kg
NA5204A/5A 2 - port models 103.0 lbs, 46.7 kg 133.0 lbs, 60.3 kg
NA5204A/5A 4 - port models 123.2 lbs, 55.0 kg 153.2 lbs, 68.6 kg
Manuals + Resources
Vector Network Analyzer NA5202A PNA-X
Vector Network Analyzers datasheet
PNA-X Vector Network Analyzers datasheet.pdf
Download
Frequently Asked Questions
?What is the frequency range of the NA5202A PNA-X?
The NA5202A model supports a frequency range spanning from 10 MHz to 26.5 GHz. Other models like the NA5204A and NA5205A support up to 43.5 GHz and 50 GHz respectively.
?How does the PNA-X pro simplify test setups?
It features integrated hardware, including up to four ultra-low phase noise signal sources, two low-noise receivers, and two combiners. This minimizes external components, reduces cable complexity, and prevents signal loss.
?What is the frequency accuracy performance?
The frequency accuracy is ±0.15 ppm, with an initial frequency accuracy of ±0.1 ppm (typical performance is ±0.02 ppm).
?What are the standard dimensions without the bottom feet?
Without the bottom feet, the unit has a height of 267 mm (10.5 inches), which corresponds to 6 EIA Rack Units (RU).
?Are external switches required for noise figure measurements?
No, the integrated low-noise receivers and signal combiners allow you to reverse the direction of the device under test during noise figure and IMD measurements without external switches.
