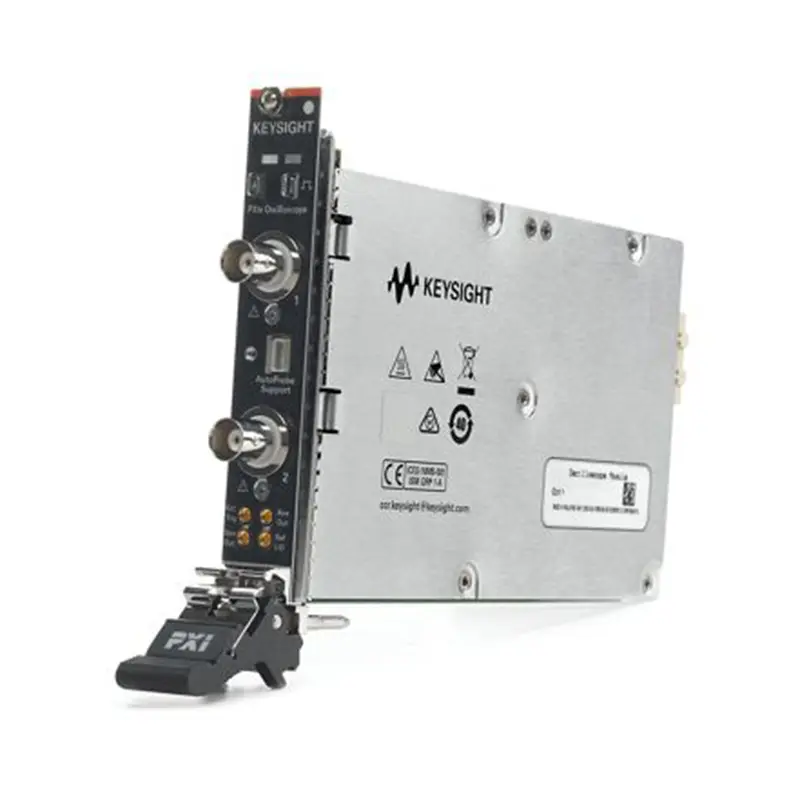

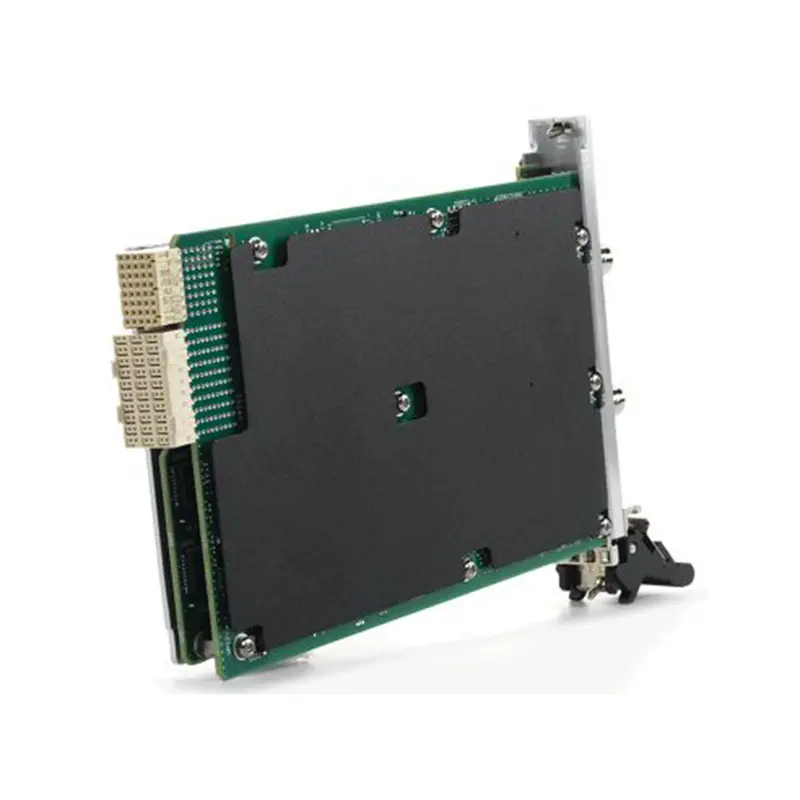

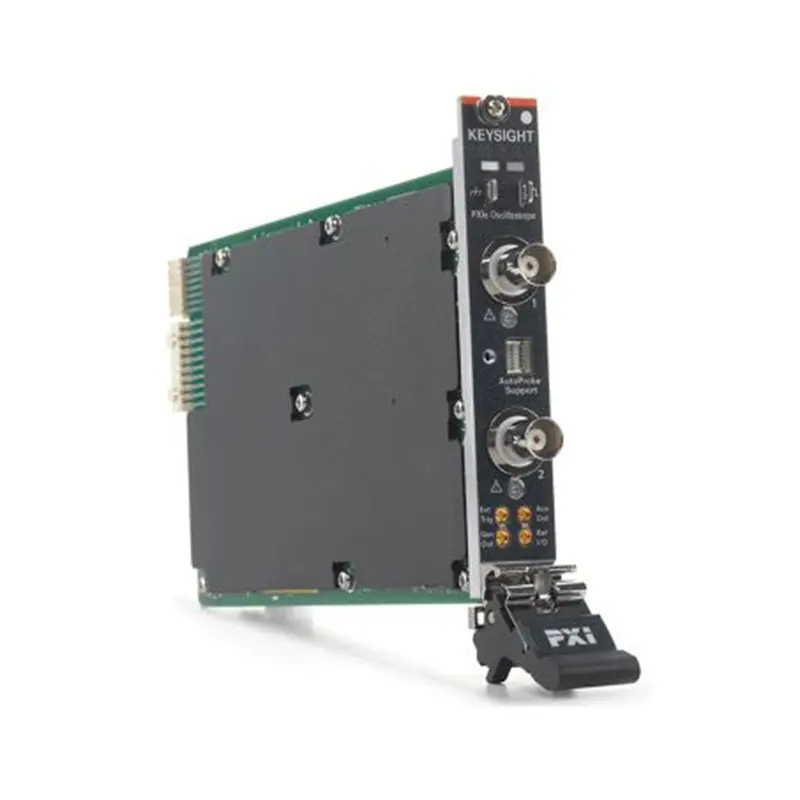

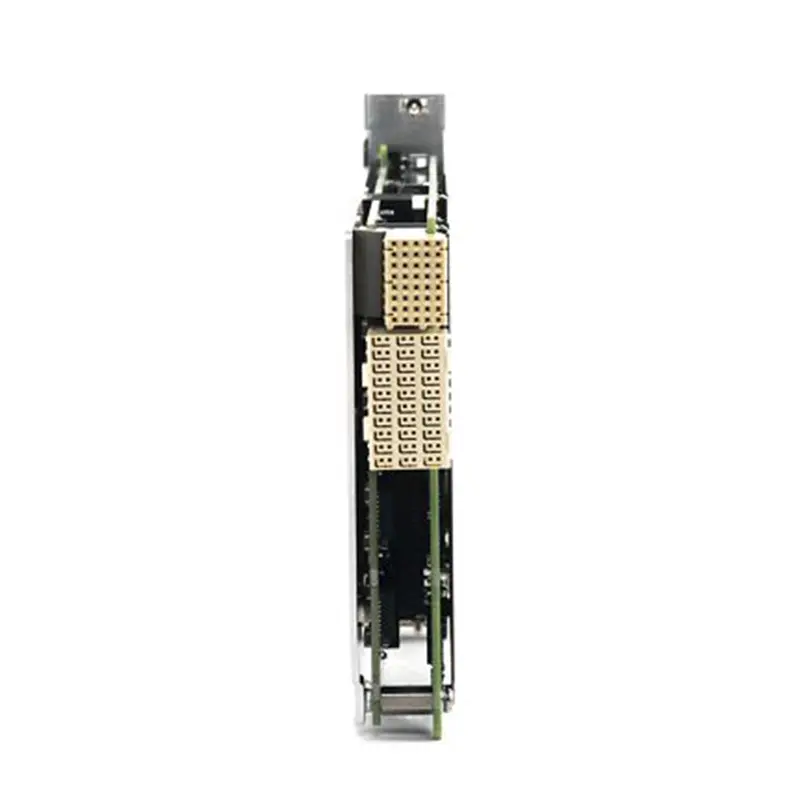

The InfiniiVision M9242A PXIe modular oscilloscopes support a large number of probing and analysis tools and have an analysis bandwidth of 500 MHz.

Send Inquiry

Product Description

Reduce the chance of releasing products that are prone to errors and malfunctions by using an oscilloscope that shows the most accurate, detailed information. The MXR B-Series is built on the same high-performance benchmark as the MXR A, but it has more recent hardware-accelerated technologies that reduces test time.
The MXR B-Series boasts speedier hardware along with standard capabilities like a 50 MHz frequency response analyzer, an integrated 50 MHz arbitrary waveform generator, and cutting-edge InfiniiScan Event Identification Software.
With an oscilloscope that produces reliable results, the MXR B-Series' automated analysis capabilities, extra-low, front-end noise, and uncompromising performance allow you to test more quickly, save time to market, and design without sacrificing quality.
Key Specifications
  • 500 MHz bandwidth oscilloscope
  • 2 analog channels
  • 5 GSa/s sample rate
  • 1,000,000 waveforms/second update rate
  • Isolate signals in seconds with exclusive zone triggering
  • Additional options: 20 MHz arbitrary waveform generator, 3-digit voltmeter, serial trigger and analysis, and mask testing
Model Configurations
Model numbers 4 channels 8 channels
500 MHz MXR054B MXR058B
1 GHz MXR104B MXR108B
2 GHz MXR204B MXR208B
2.5 GHz MXR254B MXR258B
4 GHz MXR404B MXR408B
6 GHz MXR604B MXR608B
Model Directory
Model numbers 4 channels 8 channels
500 MHz MXR054B MXR058B
1 GHz MXR104B MXR108B
2 GHz MXR204B MXR208B
2.5 GHz MXR254B MXR258B
4 GHz MXR404B MXR408B
6 GHz MXR604B MXR608B
Dimensions & Physical Specifications
Category Type Value
Weight Frame 4 - channel models: 13.75 kg (30.3 lbs)
8 - channel models: 14.50 kg (32.0 lbs)
Shipping 4 - channel models: 20.95 kg (46.2 lbs)
8 - channel models: 21.90 kg (48.3 lbs)
Dimensions Height 327 mm (12.9 in) with feet retracted
Width 443 mm (17.5 in)
Depth 223 mm (8.8 in) including knobs and rear feet
500 MHz Oscilloscope M9242A PXIe
FD-615MT Specs.pdf
KEYSIG~1.PDF
Download
Frequently Asked Questions
What is the waveform update rate of the MXR B-Series?
The MXR B-Series features an update rate of 1,000,000 waveforms per second, enabling users to isolate signals quickly.
How many analog channels are available on these models?
The specifications list options with 2 analog channels, while the model directories display configurations in both 4-channel and 8-channel variants.
What bandwidth capabilities do the MXR B-Series model numbers offer?
The available bandwidth options range from 500 MHz, 1 GHz, 2 GHz, 2.5 GHz, 4 GHz, up to 6 GHz.
What is the standard weight and dimensions of the unit?
The mainframe weight is 13.75 kg for 4-channel models and 14.50 kg for 8-channel models. The dimensions are 327 mm in height, 443 mm in width, and 223 mm in depth.
What software tools are built-in for event identification?
The MXR B-Series comes equipped with cutting-edge InfiniiScan Event Identification Software as standard.
Are there options for arbitrary waveform generators?
Yes, the MXR B-Series includes a standard integrated 50 MHz arbitrary waveform generator, with additional options available for a 20 MHz version depending on custom configurations.
