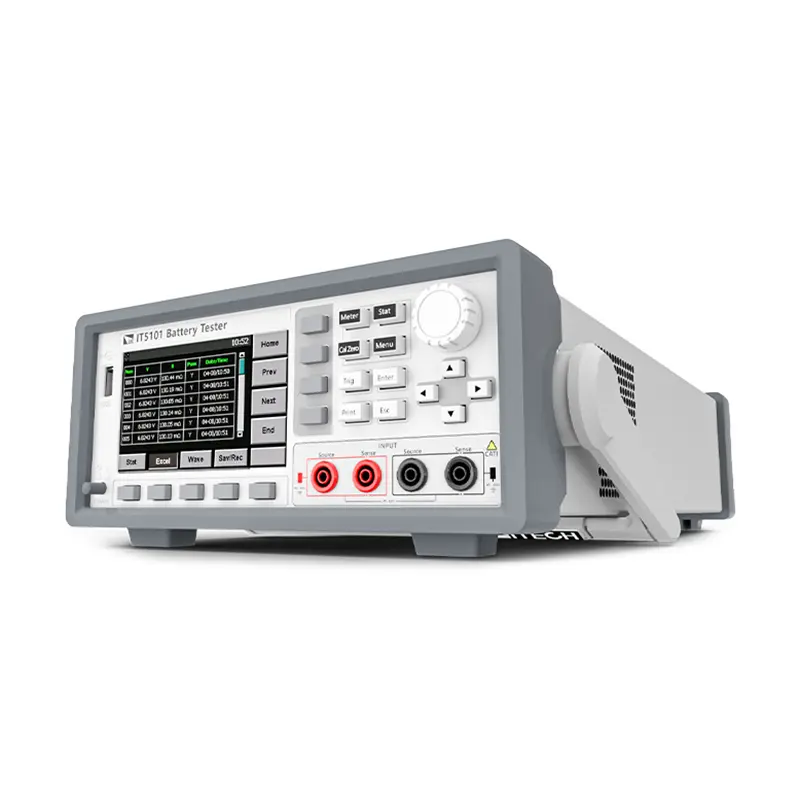

The battery internal resistance testers of the IT5100 series are fast, highly accurate, and have a high resolution. Because the IT5100 uses AC 4-terminal sensing, the tester can accurately measure both internal resistance and voltage at the same time. Voltage resolution is 10 μV, and resistance resolution is as low as 0.1 μΩ. The IT5100 can be used to calculate long-term statistics when paired with an external USB drive. With its built-in comparator function, the IT5100 can automatically count the pass rate and decide whether the battery parameters exceed the regulations, making it appropriate for a range of battery tests and selections. SCPI communication protocol is supported by an integrated USB/LAN communication interface.
Testing efficiency is significantly increased by the IT5102 single unit's support for 16 channel battery measurement, master-slave connections up to a maximum of 17 sets, and extension channels up to 272. The IT5100 series' integrated LAN/RS232 communication interface makes it suitable for a variety of battery inspection and sorting tasks, including lithium batteries for cellphones and electric vehicles.
Frequently Asked Questions (FAQ)
What is the measurement method used by the IT5100 series?
The IT5100 series utilizes the AC 4-terminal sensing method, which enables simultaneous and highly accurate measurement of both internal resistance and voltage.
What are the maximum voltage and resistance resolutions of the IT5100?
The voltage resolution goes up to 10 μV, while the resistance resolution can reach as low as 0.1 μΩ.
Can the IT5100 series be integrated into automated test systems?
Yes, it features integrated USB/LAN communication interfaces and supports the SCPI communication protocol, making it ideal for integration, including the ITS5300 battery testing systems.
What is the maximum channel support for the IT5102 model?
A single IT5102 unit supports 16-channel testing, and it can scale up to 272 channels using master-slave extension connections (up to 17 sets).
How does the comparator function work on the IT5100 series?
The built-in comparator automatically processes test data to count the pass rate and displays sorting results as HI, IN, or LOW based on preset parameters.
