The Endress+Hauser Memograph M Advanced Data Manager is a flexible, powerful system for organizing process values, designed with intuitive operation to quickly adapt to diverse applications—including process measuring technology, power stations/energy supply, steam boiler monitoring/efficiency calculation, food/pharmaceutical industry, plant/apparatus engineering (e.g., milk pasteurization plants), environmental/climate measuring (e.g., storm overflow control), quality assurance/production, batch analysis, Tele-Alarm functions, iTHERM TrustSens Calibration Monitoring, and testing bays/laboratory applications (it is also available as a DIN rail version without a display).
Boasting robust specs, it features 0...20 universal inputs, HART inputs, 6…14 digital inputs, 2 analog outputs, a 7” TFT display, and multiple storage/recording options (internal memory, SD card, USB flash drive), along with capabilities for mass/heat quantity and heat quantity difference calculations.
Core Benefits: High data security (tamper-proof storage, personalized access authorization with electronic signature compliant with FDA 21 CFR 11), a HART input card for direct connection of HART sensors to provide accurate process values for calculation and logging, a HART gateway enabling time-saving direct access to field HART sensors via FieldCare without interrupting the measuring loop, a stainless steel touch front for trouble-free operation in demanding environments (e.g., hygienic or hazardous areas), a compact DIN rail version for cabinet mounting or remote field use, strong system capability (supporting common fieldbuses like Modbus, Profibus DP, PROFINET, EtherNet/IP for fast integration into diverse systems), an integrated web server for remote access to device operation and visualization (reducing maintenance costs), and WebDAV functionality for direct transmission of SD card-saved files to a PC via HTTP without additional software. Additionally, it clearly presents process values on the display, logs them safely, monitors and analyzes limits, and facilitates easy transfer of measured/calculated values to higher-level systems and interconnection of plant modules via communication protocols.
| Measuring principle | Data manager / Data Logger |
| Function | Secure data recording and signal analysis, visualization, integrated web server for device set-up, HART(R) transparency (RSG45 as a HART modem), E-Mail notification (encrypted mails), 100 ms scan rate (high speed storage cycle 100 ms), modular design for simple expansion, data readout and processing via Field Data Manager Software, OPC server for indication of instantaneous values (optional). |
| Input |
- 20 analog max (U, I, TC, RTD, frequency, pulse) - 20 HART max (HART, 4...20mA) - 14 digital max (control, event and counting inputs) |
| Output | 12 relays (max), 2 analog (max) (I, pulse), 1 transmitter power supply |
| Interface | RS232/485, Ethernet, USB, Modbus RTU/TCP Slave, Modbus RTU/TCP Master, Profibus DP, PROFINET Device, EtherNet/IP Adapter |
| Storage/Recording | Internal memory, SD card, USB flash drive |
| Display | TFT 7" colour graphic display (available with touch panel) |
| Housing | Panel mounting with zinc diecast bezel, panel mounting with stainless steel bezel, desktop housing, field housing |
| Power supply | 100...230 VAC +/-10%, 24V (-10%; +15%) AC/DC |
| Certificates | EAC, UL (US and CA), ATEX II2G Ex px IIC Gb, ATEX II2D Ex pD IIC Db, UL listed, PROFINET certified |
| Software package | Batch software, Waste water software, Tele-alarm software, Energy software (water + steam), Waste water + storm overflow + Tele Alarm, Tele-alarm software + energy software (water + steam) |

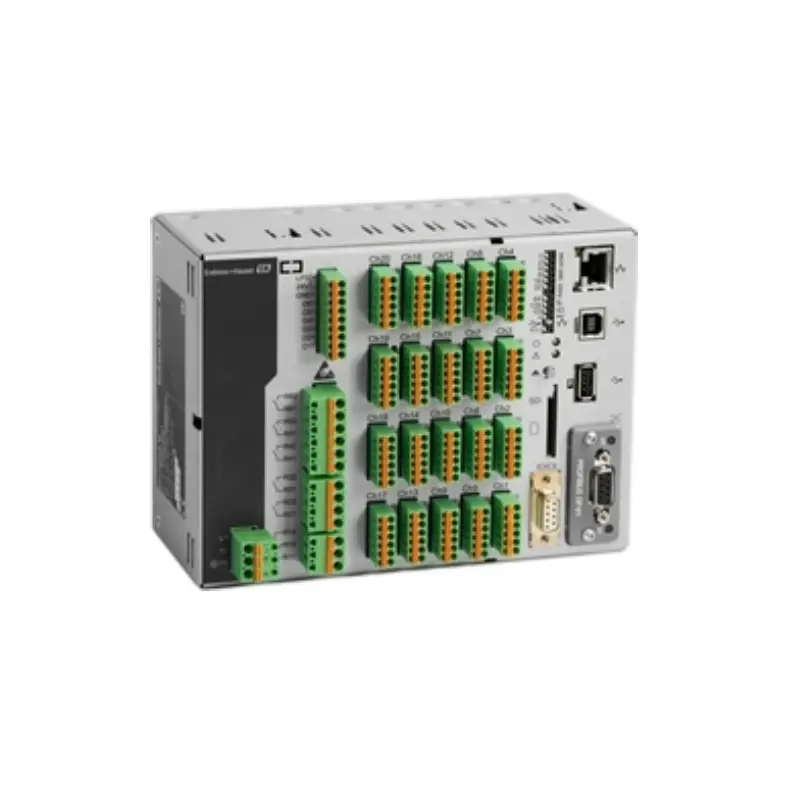

Advanced data and energy manager with up to 20 analog/HART® inputs and 14 digital inputs.
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
The system is highly versatile and suitable for process measuring, power stations, steam boiler monitoring, food/pharmaceutical production, milk pasteurization plants, storm overflow control, batch analysis, Tele-Alarm functions, and laboratory testing.
It features tamper-proof data storage and personalized access authorization with electronic signatures that comply with stringent FDA 21 CFR Part 11 regulations.
Yes, it features strong system compatibility with common fieldbuses, including Modbus RTU/TCP, Profibus DP, PROFINET, and EtherNet/IP, allowing seamless system integration.
Yes, the device features an integrated web server for remote access, configuration, and visualization. Additionally, WebDAV allows direct data transmission to a PC via HTTP without needing extra software.
Yes, the Memograph M is available as a compact DIN rail version without a display, which is ideal for control cabinets or remote field applications.
It supports up to 20 universal/HART analog inputs and up to 14 digital inputs. For outputs, it offers up to 12 relays, 2 analog outputs, and a dedicated transmitter power supply.
