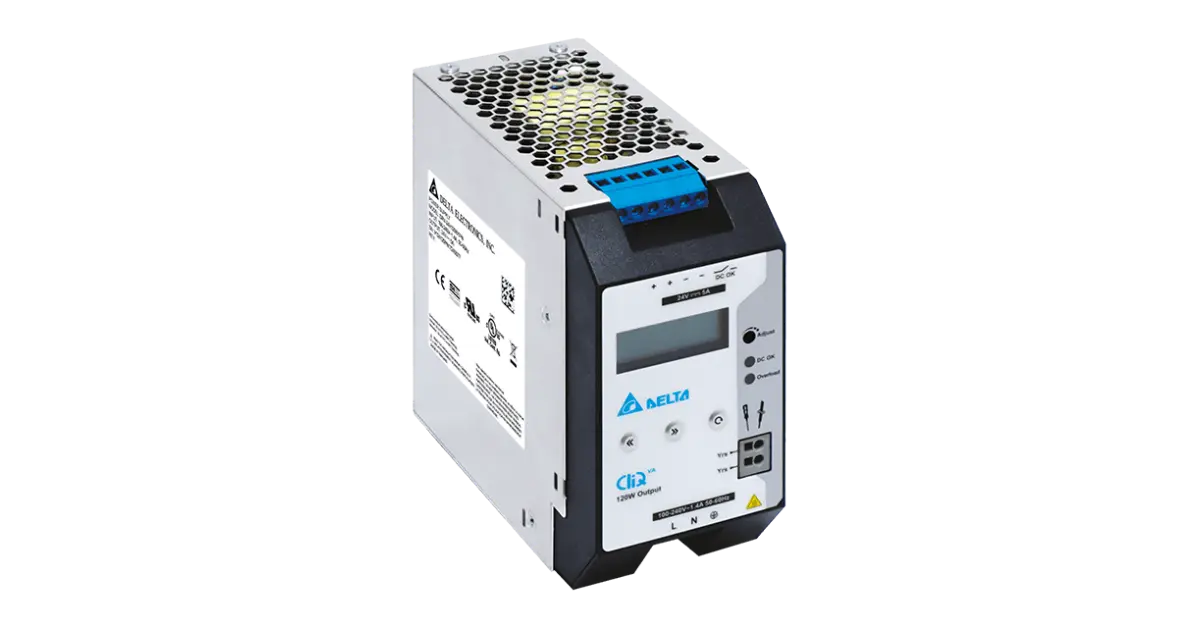

The Delta DRV-24V120W1PN belongs to the CliQ VA series, a range of power supplies renowned for their advanced technology and reliable performance, suitable for diverse industrial automation applications.
This power supply delivers an output voltage of 24V DC, with an output power of 120W and an output current up to 5A, providing stable power support for various industrial equipment. Its input voltage range spans 85–264V AC, ensuring broad adaptability to regional mains voltages.

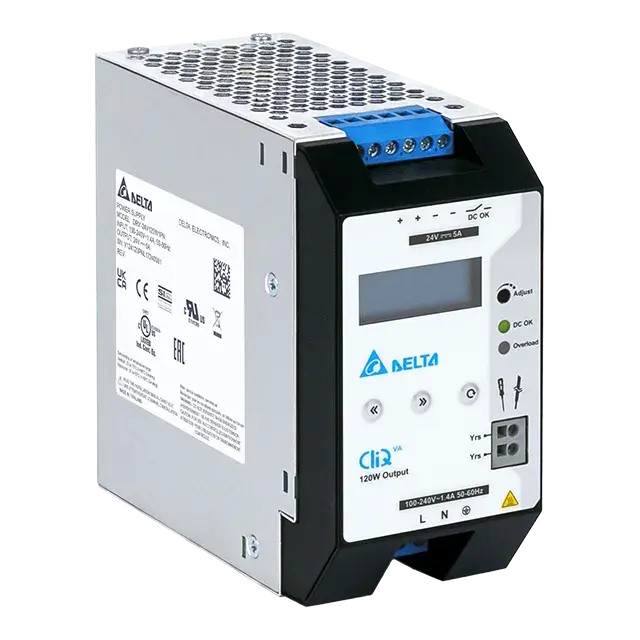

The DRV-24V120W1PN features an LCD display for real-time monitoring of output current, voltage, peak hold current, estimated lifespan, and ambient temperature, enabling users to promptly assess operational status and system health. It incorporates an end-of-life warning signal and monitoring function, with an anticipated service life of 10 years, enabling users to plan maintenance proactively. The DRV-24V120W1PN incorporates a DC OK contact and LED indicators to display DC normal and overload states, enabling users to rapidly assess the power supply's operational status. Its PCB board employs conformal coating technology to resist dust and chemical contaminants, ensuring durability and reliability even in harsh industrial environments.
Regarding safety certifications, this power supply complies with IEC/EN/UL 62368-1 safety standards and meets the harmonic current IEC/EN 61000-3-2, Class A standard, guaranteeing operational safety and regulatory compliance.
Measuring 124 x 60 x 139mm and weighing 0.75kg, this compact and lightweight power supply facilitates DIN rail mounting, optimising space efficiency.
Models: DELTA DIN Rail CliQ VA Series DRV-24V120W1PN
| Indicator | Green LED (DC OK) and Red LED (Overload) |
| Cooling System | Convection |
| Input Terminal | 3 Pins (Rated 600V/35A) |
| Output Terminal | 6 Pins (Rated 300V/28A) |
| Signal Terminal | 2 Pins (Rated 300V/10A) |
| Noise Sound Pressure Level (SPL) | < 25dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input: AWG 18-8 Output: AWG: 18-12 Signal: AWG 20-16 |
| Unit Weight | 0.75 kg (1.65 lb) |
| Dimensions | 124 x 60 x 139 mm (4.88” x 2.36” x 5.47”) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power De-rating | Vertical Mounting: > 60°C de-rate power by 2.5% / °C Horizontal Mounting: > 50°C de-rate power by 2.5% / °C |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total |
| Vibration (Non-Operating) | IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions |
| Operating Altitude | 0 to 5,000 Meters (16,400 ft.) |
Dimensions (H x W x D): 124 x 60 x 139 mm
Unit Weight: 0.75 kg (1.65 lb)
Battery parameters: Without battery
