The PowerLogic PM8000 series meters are versatile enough to handle almost any job you need a meter to do, wherever you need it! The modular, versatile ION technology architecture allows for a straightforward, building block approach to personalizing each meter for any application. Featuring unique Disturbance Direction Detection, revenue-grade precision, several communication connections, onboard power quality analysis, a web interface, and a color graphical display. Third-party labs certify energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S).
| Main | |
| Range | PowerLogic |
| Product or Component Type | Power supply module |
| Product name | PowerLogic EM3570 |
| Complementary | |
| Power consumption in VA | 20 VA |
| Kw Rating | 8 W |
| Supply voltage limits | 90 - 600 V AC 125 - 300 V DC |
| Network frequency | 50/60 Hz |
| Primary voltage | 600 V AC 300 V DC |
| Secondary voltage | 24 V DC |
| Maximum output current | 0.3 A |
| Local signalling | Power supply (OFF) LED (Orange) Power supply (ON) LED (Green) |
| Width | 1.4 in (36 mm) |
| Height | 3.7 in (95 mm) |
| Depth | 2.7 in (68 mm) |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5% - 95% non-condensing |
| Ambient Air Temperature for Operation | -13°F to 158°F (-25°C to 70°C) |
| Ambient Air Temperature for Storage | -40°F to 185°F (-40°C to 85°C) |
| Pollution degree | 2 |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Standards | IEC 61010-1:2010 UL 61010-1:2019 CSA C22.2 No 61010-1-12 |
| Product certifications | CE EN 61326-1 2013 CE EN 61010-1 2010 CE EN 61010-1 2019 UL UL 61010-1 |
| Installation category | III |
| Mounting Location | Indoor use only |
| Electrical endurance class | E2 |
| mechanical endurance class | M1 |
| Electromagnetic compatibility | EMC immunity IEC 61326-1 EMC immunity EN 61326-1 |
| Ordering and shipping details | |
| Category | US10PL109798 |
| Discount Schedule | 0PL1 |
| GTIN | 3.60648E+12 |
| Returnability | Yes |
| Country of origin | IN |

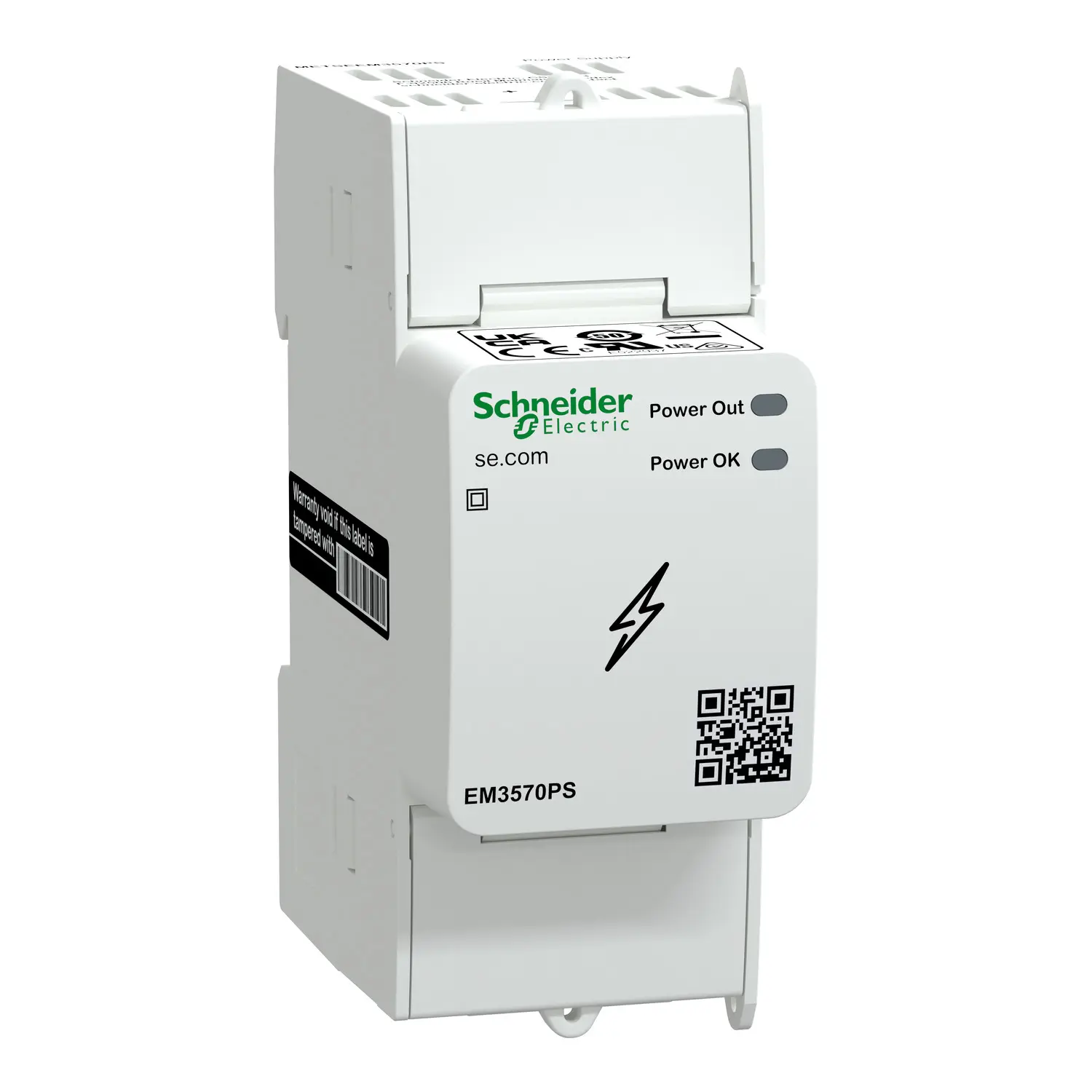

Models: Schneider 24VDC power supply module for DIN Ethernet PowerLogic EM3750 meter 600V AC input METSEEM3570PS
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.087 in (5.300 cm) |
| Package 1 Width | 3.346 in (8.500 cm) |
| Package 1 Length | 3.937 in (10.000 cm) |
| Package weight(Lbs) | 5.785 oz (164.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 12.401 lb(US) (5.625 kg) |
They are designed to reveal and provide comprehension of complicated power quality problems, enabling appropriate actions to be taken to resolve power-related issues effectively.
These meters are certified by third-party laboratories to meet strict energy accuracy standards (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality standards (IEC 62586-2, IEC 61000-4-30 Class S).
The module supports supply voltage limits of 90 to 600 V AC (at a network frequency of 50/60 Hz) and 125 to 300 V DC.
The module provides a secondary output voltage of 24 V DC with a maximum output current rating of 0.3 A.
It features an IP20 protection degree, operates in relative humidity of 5% to 95% (non-condensing), and is rated for operational ambient air temperatures ranging from -13°F to 158°F (-25°C to 70°C).
A single Package 1 (PCE) has a height of 2.087 in (5.3 cm), a width of 3.346 in (8.5 cm), a length of 3.937 in (10.0 cm), and a total package weight of 5.785 oz (164 g).
