Best Pizzato PLCs & Safety Modules Multifunctional CS MF Series CS MF201M0-P1 Supplier, Exporters

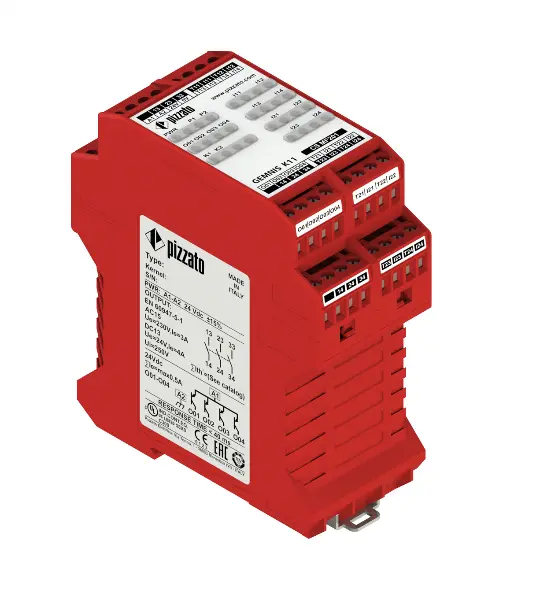

The Pizzato CS MF201M0-P1 is a compact, multifunctional safety module under the CS MF Series, designed to integrate safety logic control and monitoring capabilities for industrial machinery. It is engineered to enforce machine safety standards (e.g., EN ISO 13849-1, IEC 61508) while supporting flexible configuration for diverse safety scenarios, making it suitable for small to mid-sized automated systems.

Send Inquiry

Product Description

Overview

■ 1. Core Safety Functionality

At its heart, the CS MF201M0-P1 is built to manage safety-related inputs/outputs (I/Os) and execute safety logic, ensuring rapid response to hazardous conditions:

Safety Performance Level: Complies with PL d (per EN ISO 13849-1) and SIL 2 (per IEC 61508), making it ideal for medium-risk applications (e.g., guarding for conveyor belts, packaging machines, or small robotic workcells).
Multifunctional Logic Modes: Supports configurable safety logic, including AND/OR logic for safety inputs (e.g., linking multiple emergency stops or safety door switches) and monitoring of safety outputs (e.g., verifying the status of contactors or valves). This eliminates the need for separate safety relays, simplifying system design.
Diagnostic Capabilities: Features real-time diagnostic functions to detect faults such as short circuits, open circuits, or power loss in safety circuits. Diagnostic data is accessible via status LEDs or external interfaces, enabling quick troubleshooting and reducing unplanned downtime.

■ 2. Technical Specifications & I/O Configuration

The module balances compact size with practical I/O capacity, tailored for space-constrained industrial setups:

Inputs/Outputs (I/Os): Typically includes 2 safety inputs (for connecting devices like emergency stop buttons, safety door switches, or light curtains) and 1 safety output (for controlling machine enable signals or stopping circuits). Supports PNP/NPN input compatibility (depending on wiring configuration), ensuring flexibility to integrate with different sensor types.
Power Supply: Operates on a wide DC voltage range (common for CS MF Series: 24 V DC ±20%), compatible with standard industrial power systems. It also includes overvoltage and reverse polarity protection to prevent damage from electrical anomalies.
Environmental Resilience: Operating temperature range: -25 °C to +70 °C, adapting to cold storage areas or warm industrial zones. Enclosure protection: Likely rated IP20 (typical for DIN-rail mounted modules), suitable for installation inside control cabinets (protected from dust and water splashes).

■ 3. Mechanical & Installation Features

The CS MF201M0-P1 is designed for easy integration into existing control systems:

Mounting Type: Standard DIN-rail mounting (35mm DIN rail), the industry standard for control cabinet components. This allows quick installation alongside other devices (e.g., PLCs, relays, or power supplies) and saves cabinet space.
Compact Dimensions: Typical of Pizzato’s CS MF Series, the module has a narrow profile (e.g., ~17.5mm width, common for 1-module DIN-rail devices), making it suitable for crowded control cabinets where space is limited.
Wiring Convenience: Uses screw terminals for I/O and power connections, ensuring secure, tool-free wiring and easy maintenance (e.g., replacing the module without reworking entire circuits).

■ 4. Typical Application Scenarios

The CS MF201M0-P1 excels in applications where centralized safety control is needed without complex PLC programming:

Small Automated Machinery: Controlling safety for standalone equipment (e.g., labeling machines, small presses) by monitoring emergency stops and safety guards.
Conveyor Systems: Managing safety for short conveyor segments, linking safety door switches and emergency stops to halt the conveyor if a hazard is detected.
Packaging Lines: Integrating with safety sensors (e.g., light curtains) to protect operators from moving parts during packaging processes.
Material Handling Equipment: Ensuring safety for small AGV (Automated Guided Vehicle) control systems, monitoring stop signals and obstacle detectors.

Specifications

Parameter	Details
Safety Performance
Performance Level (EN ISO 13849 - 1)	PL e
Safety Integrity Level (IEC 61508)	SIL 3
Category	4
Electrical Parameters
Rated Control Supply Voltage (DC)	24V ±20%
Outputs	3 NO safety outputs and 4 PNP signalling outputs
Mechanical Parameters
Mounting Type	DIN - rail mounting
Protection Class	IP20
Weight	0.314 kg
Other Features
Function	Monitoring of 2 guards in AND and 1 emergency stop with automatic or manual monitored start
Configuration Software	GEM NIS Studio software
Approval	UL approved

Models & Functions

Model: CS MF201M0-P1

Type: Pre-programmed multifunction module, up to SIL 3, PL e, Category 4 - Gemnis series

Functions: Monitoring of 2 guards in AND and 1 emergency stop with automatic or manual monitored start

Supply: 24 Vdc

Outputs: 3 NO safety outputs and 4 PNP signalling outputs

Delivery Information

Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.

Manuals & Resources

PLCs & Safety Modules Multifunctional CS MF Series CS MF201M0-P1

Lift control stations EL AC Series EL AC27025 datasheet.pdf

Document Available

Frequently Asked Questions (FAQ)

Q1: What is the safety performance level of the CS MF201M0-P1 safety module?

The safety module complies with PL e (per EN ISO 13849-1) and SIL 3 (per IEC 61508) standards, offering top-tier diagnostic protection for medium-to-high risk automated machinery.

Q2: What inputs and outputs does the CS MF201M0-P1 support?

It supports 2 safety inputs (compatible with devices like emergency stops, safety doors, or light curtains) and includes 3 NO safety outputs along with 4 PNP signaling outputs.

Q3: How is the safety module installed in control panels?

It features a compact DIN-rail mounting profile design for standard 35mm rails, allowing quick, space-saving installation alongside other standard cabinet components.

Q4: What are the environmental protection levels for this module?

The module is IP20-rated for enclosure safety, making it suitable for clean control cabinet settings, and it can operate across temperatures ranging from -25 °C up to +70 °C.

Q5: What logic functions can the safety module perform?

It supports logic configuration allowing the monitoring of 2 safety guards in AND configuration combined with 1 emergency stop, supporting options for both manual monitored or automatic starts.

Q6: Which programming tool is compatible with this safety module?

The CS MF201M0-P1 is integrated and configured using the proprietary GEM NIS Studio configuration software, allowing for flexible setup parameters.
