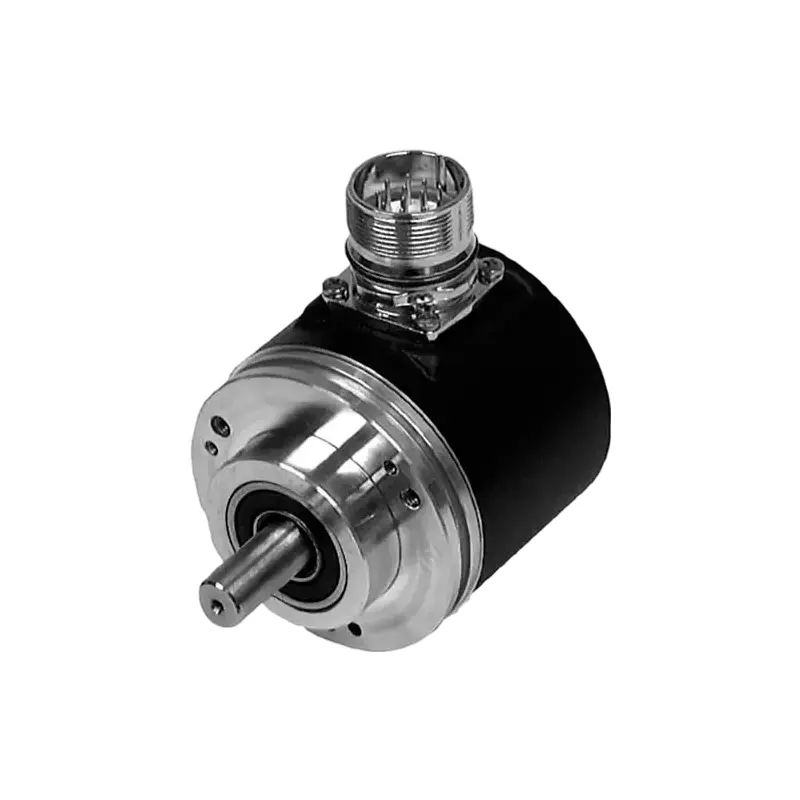

The AVS58N-011YYRYGN-0014 is a single-turn absolute rotary encoder, belonging to the industrial sensor series, suitable for industrial automation scenarios requiring precise position detection. The following is an overview of its core information:
The encoder uses a 9416L type (M23) 12-pin connector for easy and reliable wiring and maintenance in industrial environments. With its high resolution, strong environmental adaptability, and stable signal transmission, this encoder can be widely used in machine tools, automated production lines, robots, and other fields requiring high positional accuracy.
| Functional safety related parameters | |
| MTTFd | 170 a |
| Mission Time (TM) | 20 a |
| L10 | 1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load |
| Diagnostic Coverage (DC) | 0% |
| Electrical specifications | |
| Operating voltage UB | 5 V DC |
| No-load supply current I0 | max. 120 mA |
| Linearity | ± 2 LSB at 14 Bit, ± 1 LSB at 13 Bit, ± 0.5 LSB at 12 Bit |
| Output code | Gray code |
| Code course (counting direction) | cw descending (clockwise rotation, code course descending) |
| Interface | |
| Interface type | SSI |
| Monoflop time | 20 ± 10 µs |
| Resolution | |
| Transfer rate | 0.1 ... 2 MBit/s |
| Standard conformity | RS 422 |
| Connection | |
| Connector | type 9416L (M23), 12-pin |
| Standard conformity | |
| Degree of protection | DIN EN 60529, IP65 |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
| Shock resistance | DIN EN 60068-2-27, 100 g, 3 ms |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz |
| Ambient conditions | |
| Operating temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Mechanical specifications | |
| Material | housing: powder coated aluminum flange: aluminum shaft: stainless steel |
| Mass | approx. 460 g |
| Rotational speed | max. 12000 min⁻¹ |
| Moment of inertia | 50 gcm² |
| Starting torque | < 5 Ncm |
| Models | AVS58N-011YYRYGN-0014 Singleturn absolute rotary encoder |
|---|---|
| Key Benefits at a Glance | • YY: Connector 9416L with special assignment |
| • Y: Power supply 5 V DC | |
| • 14 Bit singleturn | |
| • Hardware encoder | |
| • Data transfer up to 2 MBaud | |
| • Optically isolated RS 422 interface | |
| • Clamping flange |
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
The encoder provides a high-precision resolution of 14 bits per turn, allowing for accurate angle measurements in automated industrial environments.
It features an SSI (Synchronous Serial Interface) supporting the RS 422 standard with a data transfer rate ranging between 0.1 and 2 MBit/s.
The encoder housing is made of durable powder-coated aluminum, the flange is constructed of aluminum, and the central shaft is made of stainless steel.
Yes, it has a robust operating temperature rating from -40 °C up to 85 °C (-40 °F to 185 °F), combined with an IP65 protection rating to guard against dust and moisture.
The MTTFd (Mean Time to Dangerous Failure) for this rotary encoder is 170 years, and it features an overall mission life of 20 years.
It features a standard type 9416L (M23) 12-pin connector for electrical and signal connections.
