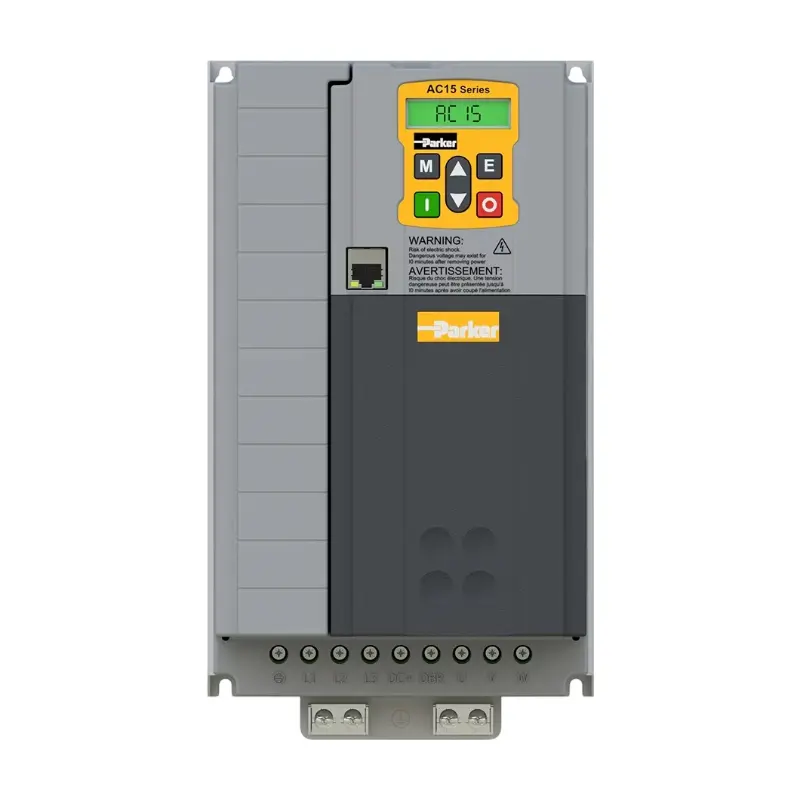

Parker AC15 Series is a cost-effective, high-performance closed-loop vector AC variable frequency drive. It is the successor to the AC10 series and has been upgraded with multiple practical functions while retaining the advantages of high reliability and rich I/O interfaces. It is well-suited for general industrial motor speed and torque control scenarios and favored by OEM customers and small-to-medium-sized industrial application scenarios.
Power Range: Generally available in the range of 0.37kW - 30kW (0.5 - 40 HP) for open-loop applications of induction and PMAC motors, with specific configurations covering up to 400kW.
Overload Capacity: Supports single-phase 220-240VAC (±15%) and three-phase 380-480VAC (+10%/-15%) supply. Withstands 150% overload for 1 minute, achieving 180% torque at 0Hz in VC mode.
Frequency Performance: Output ranges of 0 - 650Hz for V/F and VC modes, and 0.5 - 500Hz for SVC mode.
Control Modes: Supports V/F, SVC, and VC modes for AC induction motors. Offers open-loop servo control for PMAC motors to minimize footprint.
Control Precision: Equipped with self-tuning features to shorten commissioning. Reaches speed accuracy of 0.02% and torque accuracy of 5% for highly dynamic industrial scenarios.

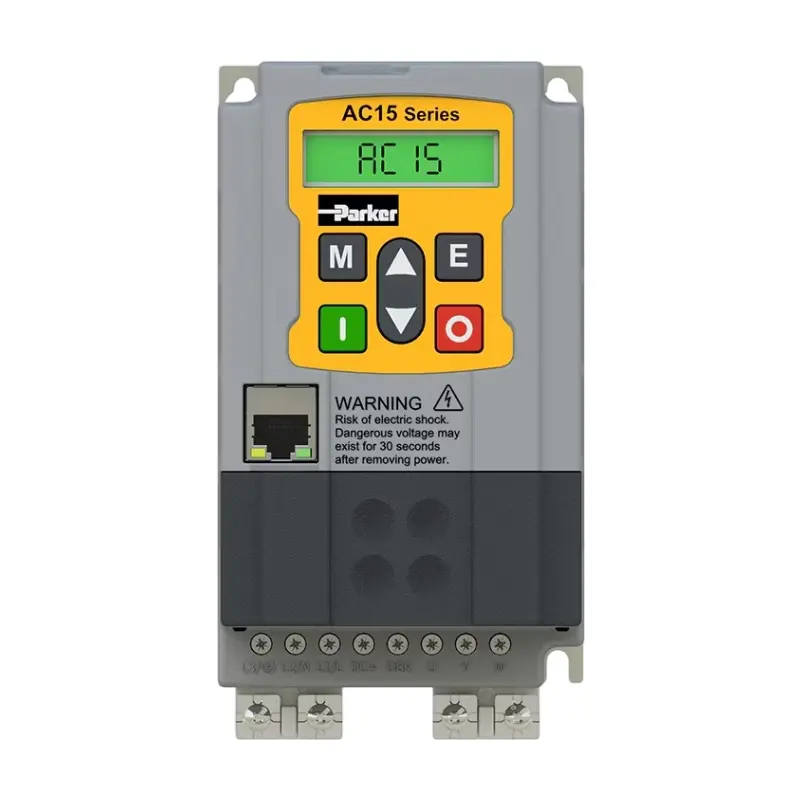

Operation: Features a backlit keypad (remotely mountable for sizes >15kW). DSE Lite software enables configuration over Ethernet, while the SD card slot simplifies parameter duplication.
Connectivity & I/O: Includes 8 digital inputs, 2 digital outputs, 2 analog inputs, 2 analog outputs, and 1 relay output. Natively supports Modbus TCP/IP and EtherNet/IP, with optional cards for Profibus-DP and EtherCAT.
Rugged Construction: Standard conformal coating protects electronics in C3-level harsh environments. Operates from -10°C to +50°C under IP20 protection standards, handling altitudes up to 1000m and 0-90% non-condensing humidity.
Highly recommended for a wide array of general machinery due to its robust design and space-saving footprint. Typical applications include conveyors, centrifuges, fans, mixers, packaging machinery, textile equipment, labeling machines, industrial cleaning facilities, and machine tool spindles.
| Specification Items | Details |
|---|---|
| Brand | Parker |
| Product Type | AC Drive |
| Drive Axis Type | Single Axis Technology |
| Product Series | AC15 |
| Input Voltage | 1*230 VAC, 3*230 VAC, 3*380 to 480 VAC |
| Output Power | 0.37 to 30 kW |
| Compatible Motor Type | Induction, Permanent Magnet AC (PMAC) |
| Modes of Control | V/Hz, Sensorless Vector |
| Communication Interface | Modbus TCP/IP, Ethernet/IP (Frames 2-5) |
| Operating Temperature | 0 to 40 °C (derate up to 45°C max); 32 to 104 °F (derate up to 113°F max) |
| Operating Altitude | up to 1000 m ASL (derate > 1000m) |
| Overload Rating | 150 % for 60s - Heavy Duty Rating |
| Specifications Met | CE (EMC & LVD), UKCA, UL Listed, cUL Listed, RoHS Compliance, Overvoltage Category III, Pollution Degree II |
| Category | Features / Benefits |
|---|---|
| Simplicity | • Easy to configure with free Parker DSELite software tool |
| • Onboard Ethernet port for programming and Modbus TCP/IP communications | |
| • Clear and intuitive keypad for local setup and control | |
| • No complex options/configurators – all features available in the base inverter | |
| • Wiring bracket (available separately) simplifies installation | |
| Safety and Reliability | • Conformally coated for harsh environment protection as standard |
| • Proven power stage design and technology | |
| • Replaceable fans | |
| • Safe Torque Off: SIL2, PLd | |
| • SD card slot for application backup |

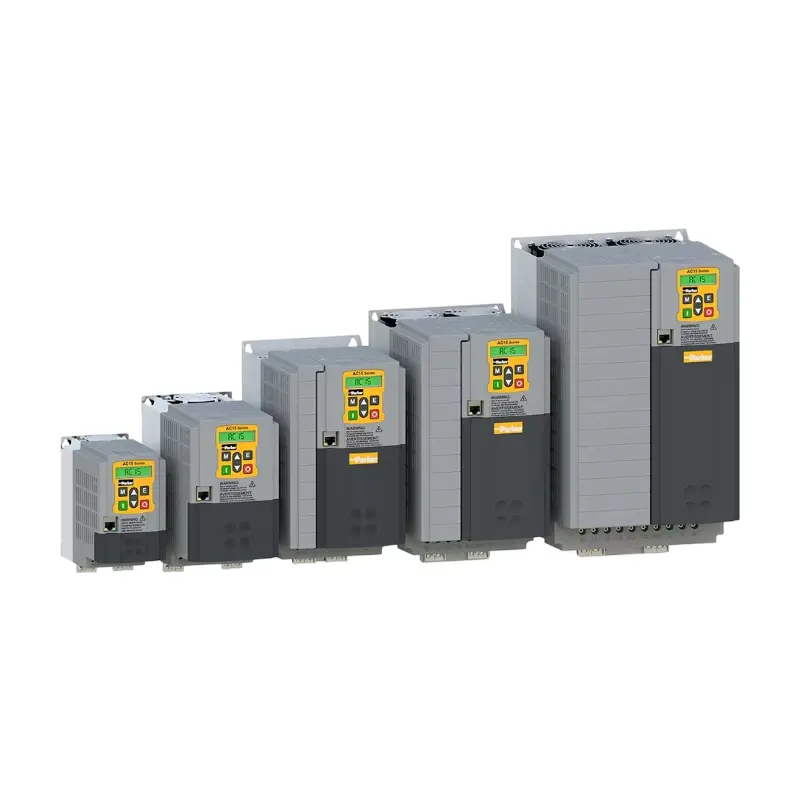

| Power | Frame Size | Dimensions (mm) | Weight (kg) | Input Voltage Specification |
|---|---|---|---|---|
| 0.75 kW | 1 | 144.3 × 81.5 × 138 | 1.0 | 3-Phase 230 V |
| 4.0 kW | 2 | 180 × 108.4 × 185 | 1.1 | 3-Phase 400 V |
| 11 kW | 5 | 220 × 210 × 340 | 4.0 | 3-Phase 230 V |
| 18.5 kW | 5 | 340 × 210 × 220.2 | 8.0 | 3-Phase 380 - 480 V |
