CF2 Series Board-to-FPC Automotive Connectors This lightweight solution is specifically engineered to meet the demanding requirements of the automotive industry. Rated at 50V DC, it is particularly suitable for applications such as automotive battery management systems (BMS) that require high shock and vibration resistance along with 125°C high-temperature endurance.

Send Inquiry

Product Description

Product Overview

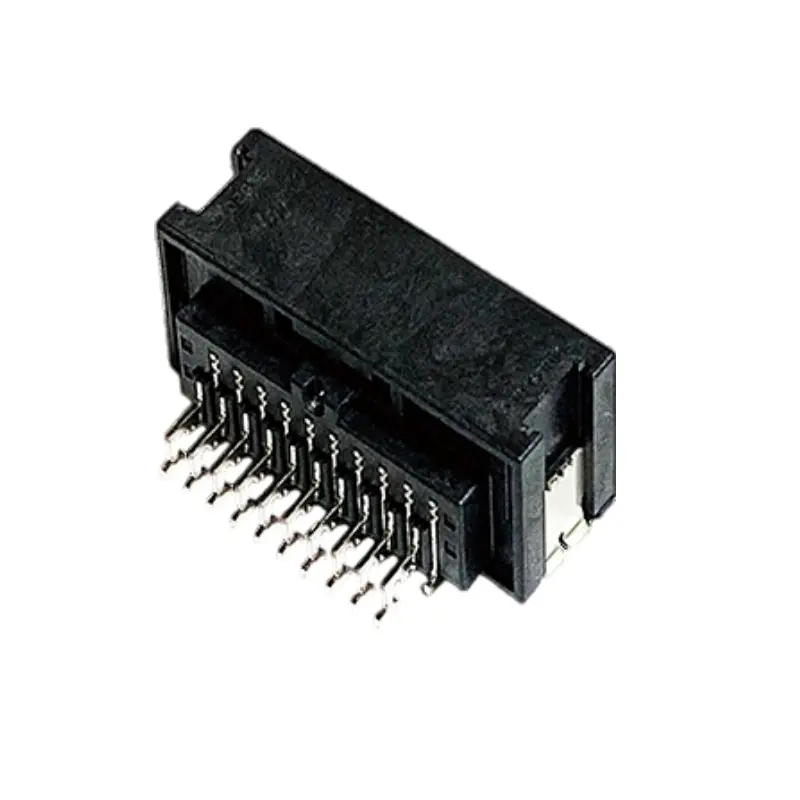

The Panasonic CF2 Series Board-to-FPC Automotive Connector AYC5F3210 is a high-performance receptacle-type connector designed specifically for demanding automotive electronics applications.
Basic Configuration
Receptacle-type board-to-FPC connector with 32 pins and a 1.00 mm terminal pitch, supporting multi-signal routing requirements.
Electrical Performance
Rated current of 1.0 A per contact at 50 V DC. Features dielectric strength of 800 V AC (1 min) and insulation resistance of at least 100 MΩ.
Mechanical Parameters
Mated height of 12.0 mm, body length of 41.80 mm, body height of 11.80 mm, and a short width of 16.60 mm.
High Reliability
Operates in temperatures up to 125°C. Delivers a minimum housing lock force of 120.0 N with an initial insertion force of at most 75.0 N.
Technical Specifications
Parameter Item Performance Characteristics (AYC5F3210)
Number of Pins 32
Type BOARD-TO-FPC
Terminal Pitch 1.0 mm
Mated Height 12.0 mm
Body Dimensions Length: 41.8 mm | Height: 11.8 mm | Width: 16.6 mm
Rated Current 1.0 A per pin contact
Rated Voltage 50 V DC
Dielectric Strength 800 V AC for 1 minute
Insulation Resistance Min. 100 MΩ
Contact Resistance Max. 20 mΩ (Initial) | Max. 40 mΩ (Post-test)
Insertion & Removal Force Insertion: Max. 75.0 N (Initial) | Removal: Max. 58.0 N (Initial)
Housing Lock Force Min. 120.0 N (Initial)
Insertion and Removal Life 10 times (Contact resistance: Max. 40 MΩ)
Ambient Conditions Storage & Transport Temp: -40 to +125°C (including temp rise under load)
Packed state storage: -40 to 50°C
Material & Plating [Body] Black LCP resin (UL94V-0)
[Post] Copper alloy, Sn plating over nickel (Contact, Soldering)
[Metal tab] Copper alloy, Sn plating over nickel (Soldering portion)
Applications Automotive applications
Models & Delivery Information
Model Overview
Panasonic CF2 Series AYC5F3210 is a specialized connector used for connecting boards and FPCs in automotive systems operating at continuous high temperatures up to 125°C.
Packaging Specifications
Supplied on embossed tape and plastic reels. Standard packaging configuration contains 250 pieces per inner carton (1 reel) and 500 pieces per outer carton.
Delivery information typically includes standard delivery lead times, shipping methods, and secure packaging configurations which may vary based on region and merchant arrangements.
Manuals & Resources
Panasonic CF2 Series Board-To-FPC Automotive Connector AYC5F3210 datasheet
Panasonic CF2 Series Board-To-FPC Automotive Connector AYC5F3210 datasheet.pdf
PDF Document
Frequently Asked Questions
What is the terminal pitch and pin count of the AYC5F3210?
The connector features a 1.00 mm terminal pitch and is configured with 32 pins, which effectively meets multi-signal and multi-circuit connection demands in automotive units.
What are the electrical ratings of the AYC5F3210 connector?
It is rated for a current of 1.0 A per pin contact and a voltage of 50 V DC. It exhibits a dielectric strength of 800 V AC for 1 minute and a minimum insulation resistance of 100 MΩ.
Can this connector withstand extreme automotive temperatures?
Yes, the AYC5F3210 is designed for high temperature adaptability up to 125°C. Its operating, storage, and transport ambient temperature range spans from -40°C to +125°C.
What materials are used for the body and contacts?
The main body is constructed of black LCP resin (UL 94 V-0). The contacts and soldering posts are made of copper alloy with a tin plating over nickel surface treatment.
How is the connector packaged?
It is packed in embossed tape and plastic reels. The standard packaging quantity is 250 pieces per inner carton (single reel) and 500 pieces per outer carton.
What is the mechanical mating life rating of the connector?
The connector has a rated insertion and removal life of 10 cycles, with contact resistance guaranteed to stay at or below 40 mΩ after testing.
