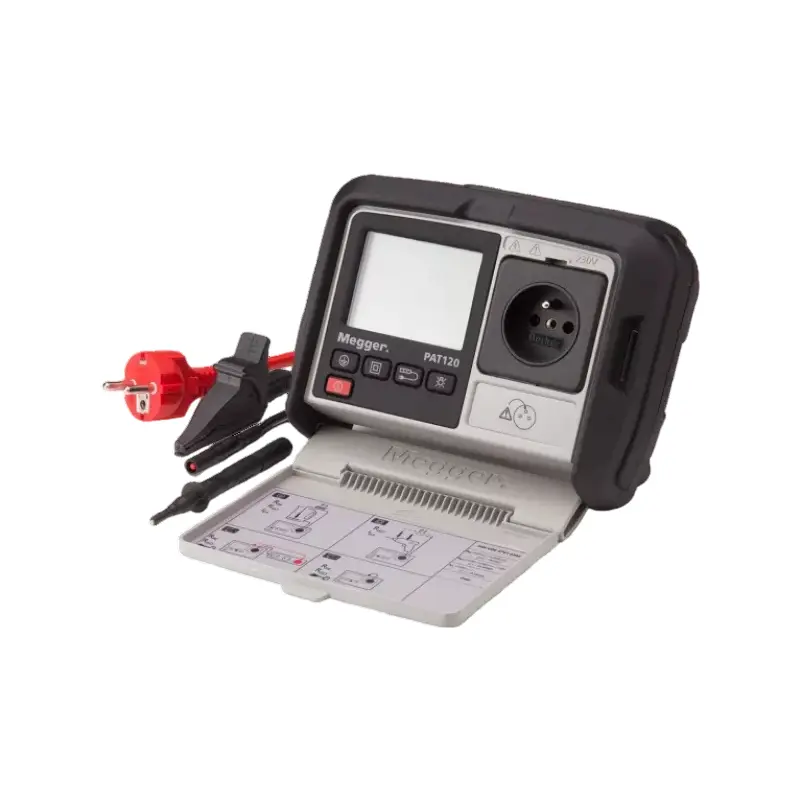

The PAT150R is a model in the PAT100 series of handheld portable appliance testers. This series also includes the PAT120 and PAT150 models, all of which are designed to perform simple, fast, and safe electrical safety tests in various environments such as offices, shops, and business units.
Equipped with pre-programmed test groups that have fixed pass/fail limits, used for testing class I and class II appliances, as well as extension and power leads. By default, it provides insulation testing at 500V, and a 250V option is also available, which is suitable for safely testing IT equipment and surge-protected devices. The leakage test is conducted using the "substitute" leakage method, eliminating the need for a mains supply during the test.

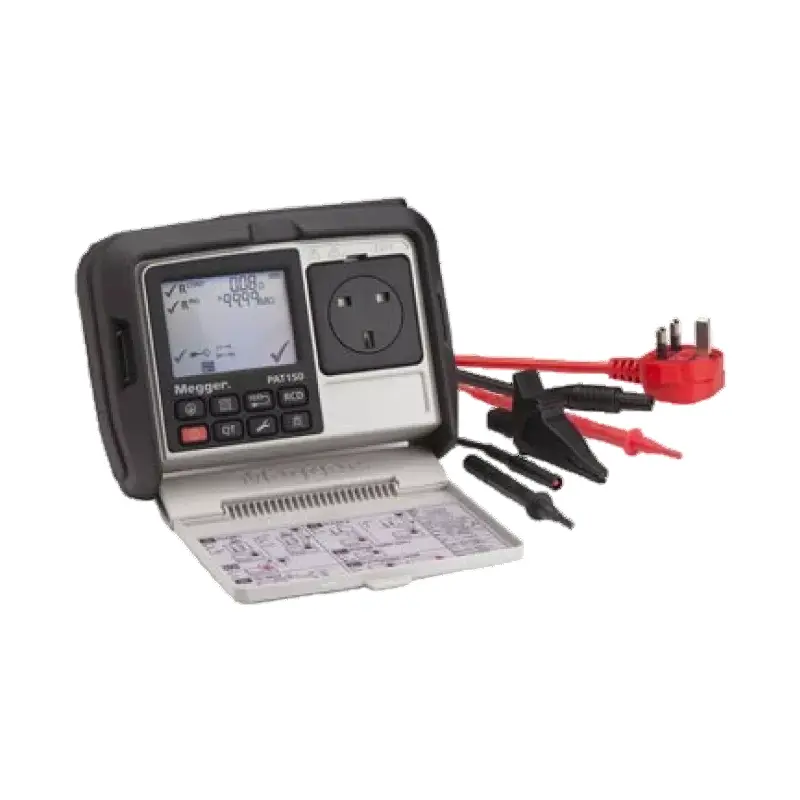

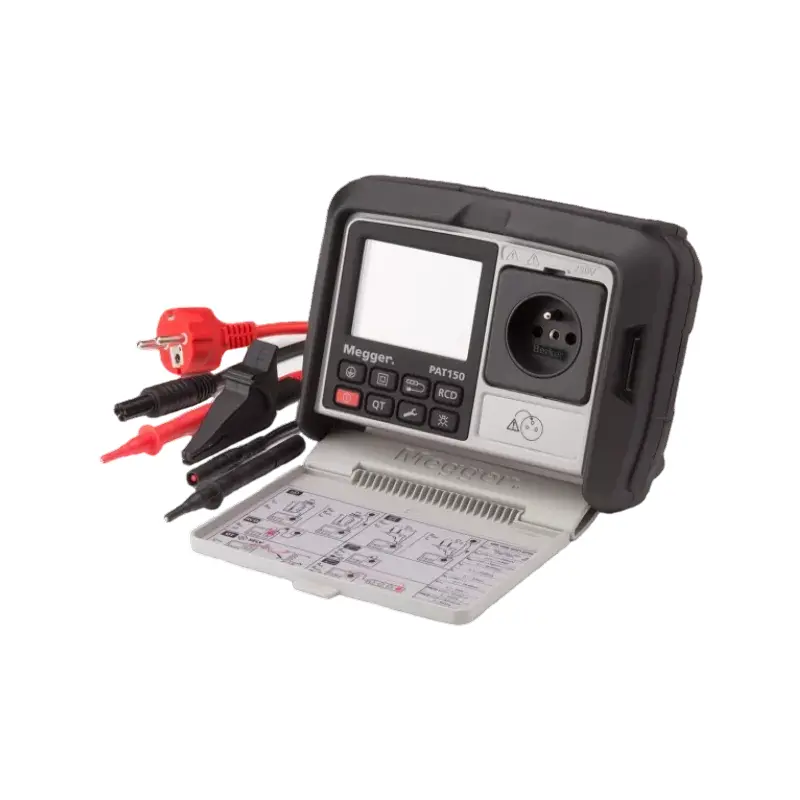

In addition to all the functions of the PAT120, the PAT150 can test 10mA and 30mA portable RCDs. It also offers separate tests for continuity, insulation, leakage, and SELV equipment, which can be quickly accessed through the quick-test button. The PAT150 supports mains-powered leakage testing and live-circuit measurement, which can be used to test the mains supply, socket polarity, and measure voltages up to 300V AC. Experienced users can adjust the test group pass limits and test durations, and null the bonding lead resistance.
The functionality of the PAT150R is the same as that of the PAT150, but it has the ability to recharge NiMH batteries without removing them from the instrument.
| Parameter | Details |
|---|---|
| Dimensions (L x W x H) | 148 x 203 x 78 mm |
| Weight | 1.3 kg |
| IP Rating | IP40 |
| Reading Category | CAT II 300V |
| Operating Temperature Range | 0 °C - 40 °C |
| Battery Life | Approximately 1000 hours |
| Battery Type | AA alkaline / NiMH (rechargeable for PAT150R) |
| Power Supply Voltage | 12V dc (alkaline AA LR6 batteries); 9.6V dc (NiMH AA LR6 batteries) |
| Continuity Test | Test voltage: +4V dc -0% / +10% open-circuit Test current: Bidirectional +200mA, -0% +50mA when 2Ω load is connected Accuracy: ± 5% ± 3 digits for 0 - 19.99Ω resistance Resolution: 10mΩ Display range: 0.01 - 19.99Ω Zero-setting: Up to 9.99Ω Test time: User-selectable between 2s and 20s, or up to 180s during the test |
| Insulation Test | Test voltage: 250V dc -0% / +25% open-circuit; 500V dc -0% / +25% open-circuit; ≥ 500V 0% dc at 0.5MΩ load Short-circuit / charging current: < 2mA dc Accuracy: ± 3% ± 10 digits for 0 - 19.99MΩ Resolution: 0.01mA Display range: 0.10MΩ - 99.99MΩ Test duration: User-selectable between 2s and 20s, or up to 180s during the test |
| Substitute Leakage Test | Leakage current accuracy: ± 5% ± 3 digits Test frequency: Nominal power frequency 50Hz Test voltage: < 50V ac Resolution: 0.01mA Display range: 0.10 - 19.99mA Test duration: User-selectable between 2s and 5s, reading corrected to 230V ac |
| Differential Leakage Test | Test voltage: Nominal power supply voltage 230V ac Test frequency: Nominal power frequency 50Hz Test accuracy: ± 5% ± 3d ± 3μA/A Resolution: 0.01mA Display range: 0.10 - 19.99mA Test duration: User-selectable between 2s and 5s |
| Contact Current Test | Test voltage: Nominal power supply 230V ac Test frequency: Nominal power supply 50Hz Test accuracy: ± 5% ± 3 digits Resolution: 0.01mA Display range: 0.10 - 3.99mA Test duration: User-selectable between 2s and 5s |
| SELV Equipment Test | Test voltage: 0 - 300V ac Test accuracy: ± 3% ± 3 digits Resolution: 0.1V ac Display range: 0.1 - 300V ac Polarity detection: 5V wire normal, phase / neutral short-circuit, phase / neutral reverse, phase / neutral open-circuit |
| Portable RCD Test | Test voltage: Nominal power supply 230V 50Hz Test current accuracy: +2% to +8% (1 x I, 5 x I) Tripping time accuracy: ± 1% ± 1ms Tripping time resolution: 0.01ms Display range: 0 - 200ms (1 x I) |
| Models | PAT100 series Handheld portable appliance testers |
|---|---|
