Output voltage range is 500V to 10kV, with insulation resistance measurement range stretching up to 35 TΩ.
8mA noise suppression and four user-selectable software filters (10s, 30s, 100s, and 200s) guarantee accurate readings even in high electromagnetic interference (EMI) areas.
Supports detailed diagnostic testing modes including Polarization Index (PI), Dielectric Absorption Ratio (DAR), Dielectric Discharge (DD), Step Voltage (SV), and Ramp Test.

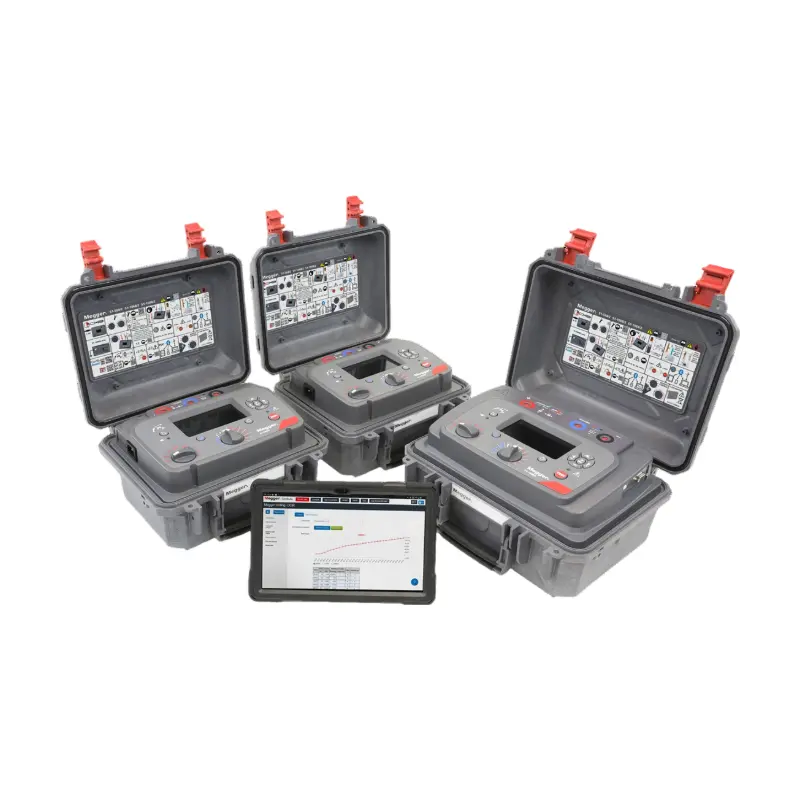

Advanced internal memory saves and time-stamps results. Safe, isolated USB transfer and onboard Bluetooth sync data seamlessly with official device management software.
Large, clear backlit LCD displays resistance, voltage, current, capacitance, and active battery charge level simultaneously. Double rotary switches keep adjustments direct.
CAT IV 600V safety standard compliant up to 3,000m. A hard outer shell guards against heavy physical impact while the IP65 inner chassis shields internal systems.
| Parameters | Detailed Specifications |
|---|---|
| Test Voltage | 250V, 500V, 1000V, 2500V, 5000V, 10000V, 15000V Lock Test Voltage: 40V - 1kV in 10V steps, 1kV - 5kV in 25V steps, 5kV - 15kV in 25V steps |
| Test Voltage Accuracy | +4%, -0%, ±10V nominal test voltage at 1GΩ load (0°C - 30°C) |
| Resistance Measurement Range | 10kΩ - 15TΩ (at 5kV) 10kΩ - 35TΩ (at 10kV) 10kΩ - 35TΩ (at 15kV) |
| Display Range | Analog: 100kΩ - 10TΩ Digital: 10kΩ - 35TΩ |
| Short-Circuit/Charge Current | 6mA |
| Insulation Test Alarm | 100kΩ - 10GΩ |
| Capacitor Charge (on Battery) | <2.5s/µF (5kV) | <5s/µF (10kV) | <6.3s/µF (15kV) |
| Capacitor Charge (with AC) | <1.5s/µF (5kV) | <2.7s/µF (10kV) | <4s/µF (15kV) |
| Capacitance Range | 10nF - 25µF (test voltage >500V) |
| Capacitance Accuracy | 10nF - 10µF: ±10%, ±5nF |
| Current Range & Accuracy | Range: 0.01nA - 6mA | Accuracy: ±5%, ±0.2nA at all voltages (20°C) |
| Interference | 8mA noise suppression from 2560V - 10kV |
| Power Supply (AC Input) | 90 - 264Vrms, 50/60Hz, 100VA |
| Battery & Battery Life | 11.1V, 5.2Ah lithium-ion battery (IEC 62133) Up to 4.5 hours continuous testing at 10kV with a 100MΩ load |
| Battery Charge Time | Full charge: 2.5 hours (deep discharge), 2.0 hours (normal) Quick Charge: 30 minutes provides 1 hour of operation at 5kV (100MΩ load) |
| Safety Rating | CAT IV 600V up to 3000m altitude |
| Data Export & Operation | Remote operation via USB cable Data Download: Isolated USB cable or onboard Bluetooth |
| Voltmeter Function | 30V - 660V (AC or DC), accuracy: ±3% ±3V |
| Dimensions & Weight | 285mm × 181mm × 315mm | Weight: 4.5kg |

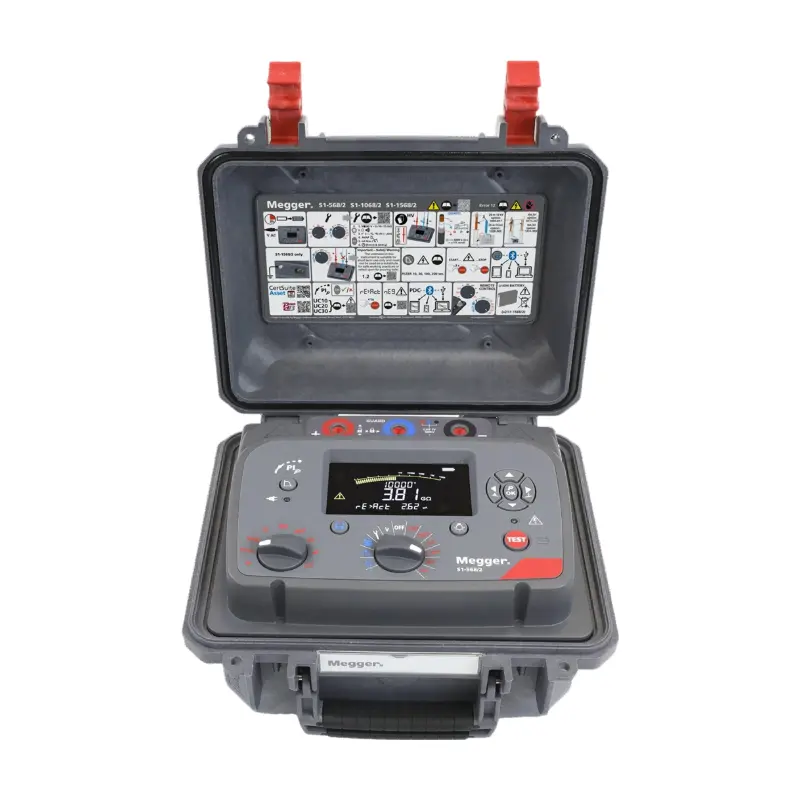

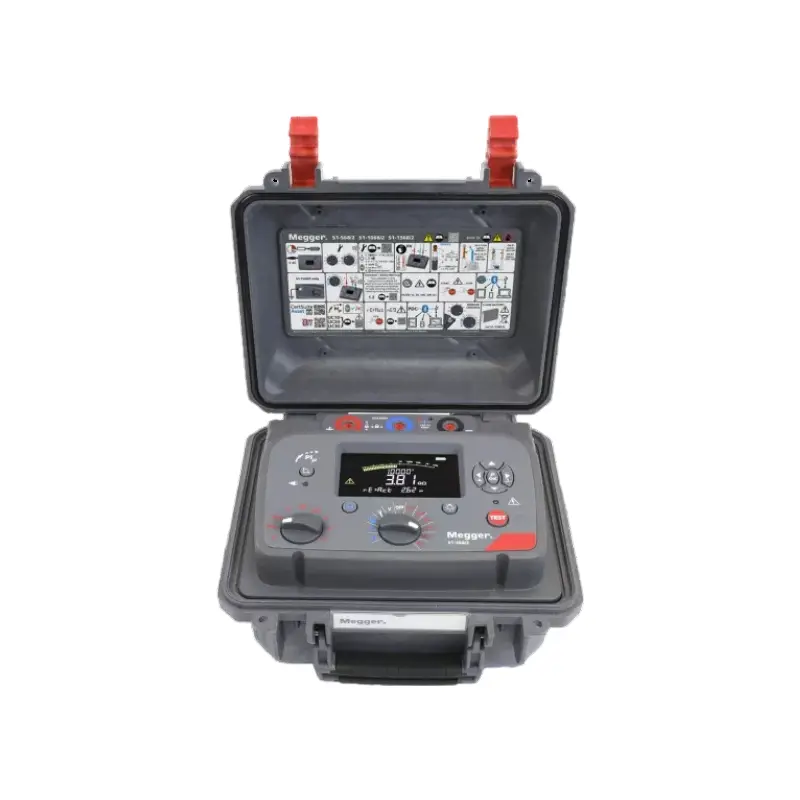

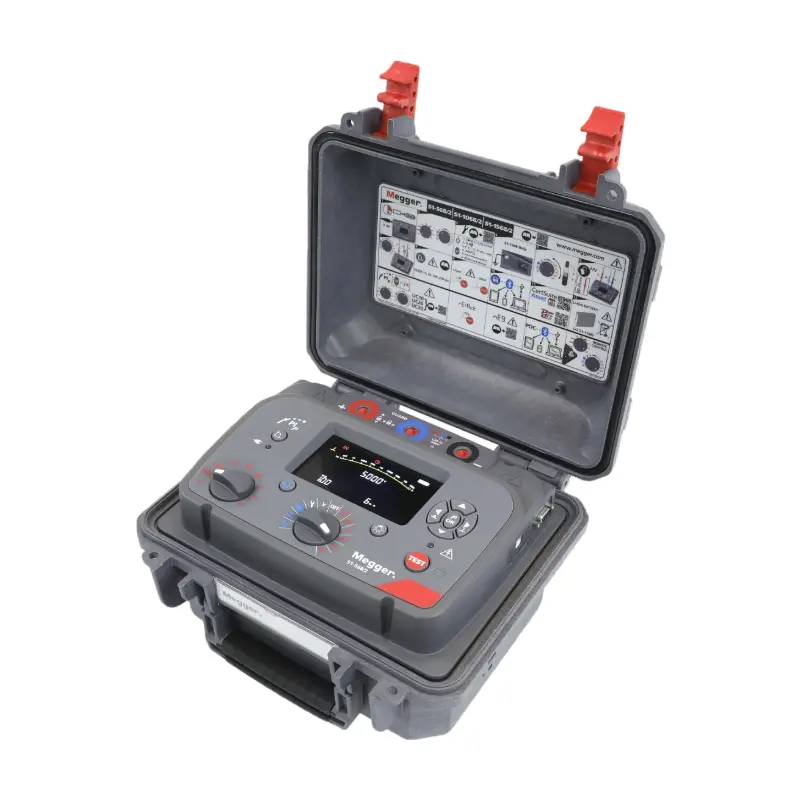

The Megger S1-1068 features a measurement capability of up to 35 TΩ at a 10kV test voltage, which allows for testing highly resistive and modern electrical insulation designs.
Equipped with premium 8mA noise suppression and four select software filters (10s, 30s, 100s, 200s), the device effectively filters out external electromagnetic waves. This makes testing highly secure and stable even in crowded substations or heavy industrial sites.
The tester supports multi-faceted diagnostics of high-voltage systems. It has integrated configurations for Polarization Index (PI), Dielectric Absorption Ratio (DAR), Dielectric Discharge (DD), Step Voltage (SV), and Ramp diagnostics.
Yes, users can remotely interface with the device via an isolated USB link. For data transmission, both isolated USB cables and onboard Bluetooth technologies are fully supported.
The lithium-ion battery requires 2.5 hours to fully charge from empty. A rapid 30-minute quick charge session generates enough operating energy to complete up to 1 full hour of testing at 5kV with a 100MΩ load.
