This servo drive incorporates a new high-computing platform with a 2.4-fold increase in clock frequency, featuring an 8K position loop and 16K velocity loop. Response speed and control precision are significantly enhanced to meet the demands of highly dynamic applications such as robotics and logistics equipment. Regarding performance enhancements, the drive supports stable operation at temperatures as low as -20°C. Motors can be specified with an IP67 protection rating, ensuring resilience against extreme cold, humidity, and dusty environments.
| Performance specifications | |
| Displaysize | 10.1" TFT |
| Displayarea | 222.72(W) * 125.28(H) mm |
| Resolution | 1024*600 pixel |
| Displaycolor | 16.2M |
| Contrastratio | 500:1 |
| Backlight | LED |
| Brightness | 300cd/m2 |
| Backlight life | >30000 hours |
| Touch panel | 4-line precision resistance network (surface hardness 4H) |
| CPU | ARM RISC 32Bit 792MHz |
| Memory | 128MB NAND Flash Memory + 128 MB RAM |
| RTC | Built-in |
| Extensible memory | 1 USB Host |
| Print port | USB Host / serial port |
| Ethernet | LAN0: 10/100 Mbps |
| Program download | Ethernet port / USB Slave / U disk |
| Com port | COM0: RS232/RS485; COM2: RS232 |
| Electrical specifications | |
| Input power supply | DC10V ~ DC28V |
| Rated power | 6W @24VDC |
| Allowable loss of power | <3ms |
| Insulation resistance | Over 50MΩ @ 500VDC |
| Pressure resistance test | 500VAC 1 minute |
| Structure specifications | |
| Shell material | Engineering plastic |
| Overall dimension(mm) | 271*191*35.5mm |
| Cut-out dimension(mm) | 260*180mm |
| Weight(kg) | 0.9KG |
| Environmental specifications | |
| Working temperature | 0~50°C |
| Working Humidity | 10~90%RH (Non-condensing) |
| Storage temperature | -20~60°C |
| Storage humidity | 10~90%RH (Non-condensing) |
| Seismic resistance | 10~500Hz, 30m/s², X,Y,Z direction/hour |
| Cooling mode | Natural air cooling |
| Product certification | |
| Panel protection grade | IP65 certification (4208-93) |
| CE authentication | EN61000-6-4:2019, EN61000-6-2:2019 |
| Software | |
| Configuration software | DTools V4.1 and above version |
The delivery cycle of industrial products is influenced by various factors, such as the inventory status of the products, the scale of the order quantity, the region where the customers are located, and the choice of transportation methods.

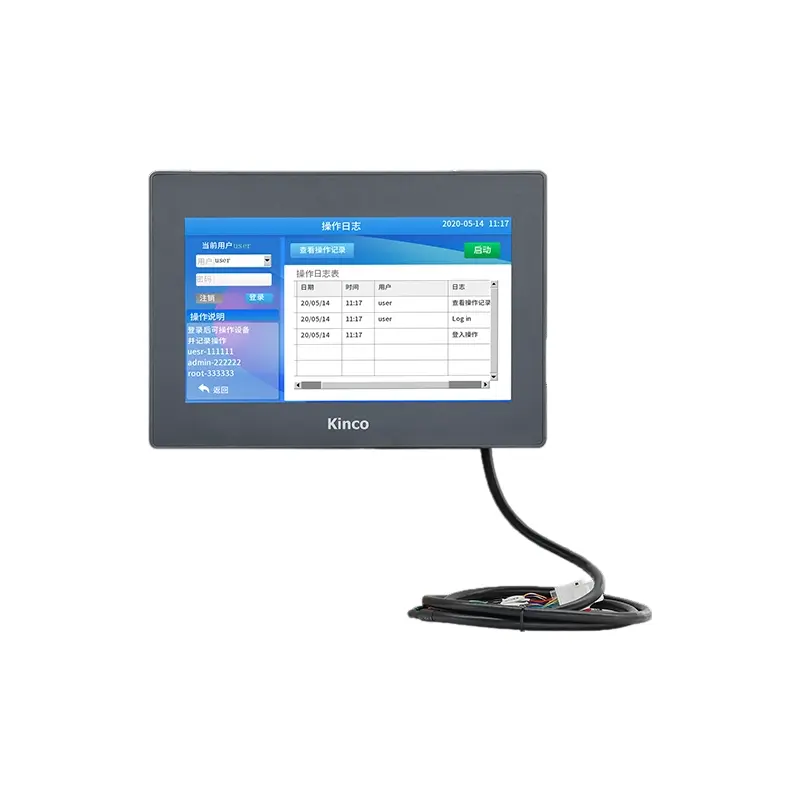

💡 What is the protection rating of the Kinco G100E-LRF touch screen?
The front panel of the Kinco G100E-LRF HMI has an IP65 protection grade rating, making it highly waterproof and resistant to dust in demanding industrial environments.
💡 What type of programming software does this HMI use?
This model uses DTools V4.1 and above versions for configuration, program updates, and design interfaces.
💡 What are the storage and working temperature limits?
The operating temperature ranges from 0 to 50°C, and it can be stored safely in environments ranging from -20 to 60°C with 10% to 90% non-condensing humidity.
💡 How much memory does the HMI display have?
It is equipped with 128MB NAND Flash Memory plus 128MB RAM, allowing ample room for complex control applications and visual logs.
💡 How is programming configuration downloaded to the device?
Users can download programs via the built-in Ethernet port, USB Slave interface, or directly using a USB flash drive (U disk).
