The DPI610 series pressure calibrator was an immediate success when it was introduced in 1997. Four inherently safe versions and seven commercial versions comprised the flagship calibrator model. The most recent iteration of this still-popular device in the industry is the DPI610E.
The DPI610E was created by combining a number of beloved characteristics from the original DPI601/605/610/615 devices with the most recent developments in pressure measurement technology.
This portable device is a battery-operated, standalone manual pressure gauge that can measure loops, generate pressure, and provide fine control. Most notably, it was created for instrument technicians based on feedback from field workers who stressed the importance of performance in pressure calibrators.
The DPI610E delivers exciting new capabilities, such as an inbuilt barometer with a barometer port for simple calibration, while maintaining the distinctive handle, user-friendliness, and sturdy, dependable design of its predecessors.
Upgraded battery: Operates continuously for more than 60 hours after a single, two-hour charge.
| Display | Size: 112mm (4.4in) diagonal, 320 x 240 pixels, LCD monochrome display |
|---|---|
| Internal memory | 100,000 - point data logging memory, store user procedures and test results |
| Languages | English, Chinese, Dutch, French, German, Italian, Japanese, Korean, Portuguese, Spanish, Turkish, Polish |
| Operating temperature | -10°C to 50°C (14°F to 122°F) |
| Storage temperature | -20°C to 70°C (-4°F to 158°F) |
| Ingress protection | IP 54. Protected against dust and splashing water from any direction |
| Humidity | 0 to 90% RH non-condensing. To Def Stan 66-31, 8.6 cat III |
| Shock/vibration | BS EN 61010-1:2001/MIL-PRF-28800F CLASS 2 |
| Altitude | Up to 2000m |
| EMC | BS EN 61326-1:2013 |
| Electrical safety | BS EN 61010-1:2010 |
| Pressure safety | Pressure Equipment Directive - Class: Sound Engineering Practice (SEP) |
| Enclosure materials | PC ABS, Polycarbonate, polyamide, polypropylene, acrylic, cotton (strap) |
| Approvals |
CE marked, UKCA marked Hazardous Area version (Ordering code 'SPC or SHC'): ATEX, IECEx, UKEX, CCOE, XPL, KC, NEPES, ECASEx to EN60079-11:2012 Ex ia IIC T4 Ga (-10 to 50°C), CSA approved (Canada & US): Class I, Zone 0, AEx/Ex ia IIC T4 Ga (-10°C ≤ Ta ≤ +50°C) |
| Size (L:W:H) |
Pneumatic: 350 x 150 x 180 mm (13.8 x 5.9 x 7.1 in) Hydraulic: 400 x 150 x 190 mm (15.7 x 5.9 x 7.5 in) |
| Weight |
Pneumatic - 3.6Kg (8 lbs) including battery Hydraulic - 4.4Kg (10 lbs) including battery |
| Power supply |
Integral Lithium ion battery Mains adaptor P/N IO610E-PSU 100-260V 50/60Hz AC, Output DC V=15V, 1.6A |
| Battery life |
Much improved battery performance typically: - 100% Volts Measure, 0% Current Source 4mA, 0% Current Source 20mA -> 90 hours - 80% Volts Measure, 10% Current Source 4mA, 10% Current Source 20mA -> 74.8 hours - 40% Volts Measure, 40% Current Source 4mA, 20% Current Source 20mA -> 62 hours - 0% Volts Measure, 0% Current Source 4mA, 100% Current Source 20mA -> 31.5 hours - Full recharge in 2 hours with supplied charger |
| Connectivity | USB client micro-USB with supplied cable |

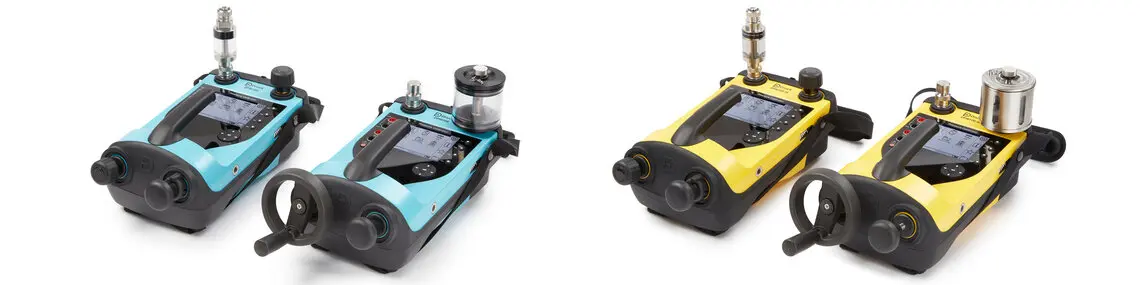

Discover the engineered precision of the DPI610E pressure calibrator series, available in various configurations tailored for pneumatic and hydraulic applications.
