Best Autonics PA-12 Series 8-Pin Plug Type Sensor Controllers Exporters, Products

Input Logic: NPN open-collector & NPN common/PNP open-collector & PNP common (switch-selectable)

Number of Sensors Connectable: 1

External Sensor Power Supply: 12VDC special string (approx. 50mA)

Power Supply: 110/220VAC ~ 50/60Hz (switch-selectable)

Power Consumption: Maximum 4VA

Control Output: Relay SPDT (1 pole) x 1

Send Inquiry

Product Description

Overview

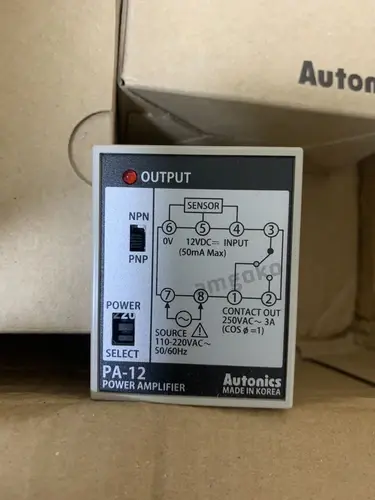

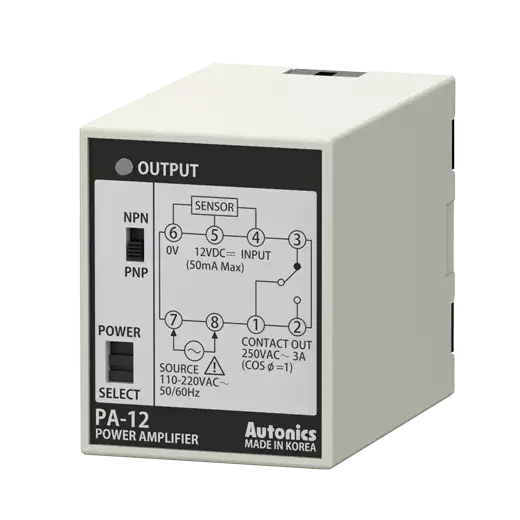

PA-12 Series: 8-pin plug-in sensor controller.

Simple socket plug-in connection. The sensor controller supports dual 110/220 VAC voltage, making it suitable for use in various environments. The controller supports dual 110/220 VAC voltage, making it suitable for use in various environments. This series also features high contact capacity and supports NO or NC relay outputs. An additional conversion switch allows users to conveniently switch between NPN and PNP inputs.

Specifications

Input logic	NPN open collector & NPN universal/PNP open collector & PNP universal(set by switch)
Number Of Connected Sensors	1 unit
Power for external sensor	12VDC specialstring(approx. 50mA)
Power supply	110/220VAC~50/60Hz(set by switch)
Power consumption	Max. 4VA
Control output	Relay SPDT(1c) 1°
Ambient temperature	10~50℃
Power for external sensor	12VDC specialstring±10% 50mA
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 269g

Models & Delivery Information

Models: Autonics PA-12 series sensor controllers feature 8-pin plugs.

Weight: Approximately 269g, inclusive of packaging. The weight in brackets denotes the device weight only.

Accessories: 8-pin sockets (PG-08, PS-08(N)) require separate purchase.

Manuals & Resources

MT4Y-DV-40

Frequently Asked Questions

1. What power supply voltages do the PA-12 Series controllers support?

The PA-12 Series sensor controllers support dual 110/220 VAC voltage, making them highly versatile for various operating environments. The power supply option can be selected easily using an integrated switch.

2. Does the controller support both NPN and PNP input types?

Yes, the PA-12 Series features an additional conversion switch that allows users to quickly and conveniently switch between NPN and PNP sensor inputs.

3. How many sensors can be connected to a single controller?

Each unit of the PA-12 series sensor controller is designed to support the connection of 1 sensor unit.

4. Are the 8-pin sockets included with the sensor controller?

No, the compatible 8-pin sockets (PG-08, PS-08(N)) are accessories and must be purchased separately.

5. What is the approximate weight and ambient temperature range for operation?

The controller weighs approximately 269g (inclusive of packaging). It is designed to operate safely within an ambient temperature range of 10 to 50℃.
